58 | NORD STAGE 4 USER MANUAL OS V1.4X
OUTPUT MENU
Hold SHIFT and press OUTPUT (Program 5) to access the Output
menu. Use the PAGE 3 and 4 buttons to navigate menu pages. The
PROGRAM dial is used to change settings, and soft buttons to access
additional settings (as described above), where applicable. Press EXIT
(Shift) to leave the menu.
1 - OUTPUT ROUTING MODE
There are two distinct Output Routing options to choose from; Global
and Per Program. In Global mode, Sections and Layers are assigned
directly to the physical outputs (1-4). In Per Program mode, Sections
and Layer are assigned to buses – stored per program – which are in
turned assigned to the physical outputs. Read more about this below.
Range: Global (default), Per Program
i The settings for each of these modes are preserved when
switching between them.
2 - OUTPUT BUS CHANNELS (PER PROGRAM)
In Per Program Output Routing mode, the output routing is managed
through a Bus system. There is one Main Bus and three Sub Busses,
labeled I, II and III. By default, all Sections and Layers are assigned to
the Main bus, which by default is routed to outputs 1+2.
Any Bus, including the Main Bus, can be set to a range of values
using the 1+2 and 3+4 stereo pairs, or to a single output for mono
applications. Any Layer can then be routed to any Bus as needed.
MONO OUTPUT
In certain scenarios it may be necessary or desired to output all sound
coming from the Nord Stage 4 in mono, rather than stereo. To achieve
this, make a setting for the Bus being used which uses just a single
output channel (1, 2, 3 or 4). When using just one output, piano sounds
are optimized for mono and stereo effects are adapted for mono use.
RANGE
Range Main: 1-2 (default), 3-4, 1, 2, 3, 4, 12+34.
Range Sub I: 1-2, 3-4 (default), 1, 2, 3, 4, 12+34.
Range Sub II: 1-2, 3-4, 1, 2, 3 (default), 4, 12+34.
Range Sub III: 1-2, 3-4, 1, 2, 3, 4 (default), 12+34.
l The 12+34 setting can be useful for sending a copy of all outgoing
sound as a monitor feed.
i These settings are not applicable when in Global Output Routing
mode, and will be labeled as “Inactive”.
3 - ORGAN/ROTARY OUTPUT CHANNEL/BUS
This setting determines which output channel (in Global mode) or bus
(Per Program mode) is used by both Organ Layers and the Rotary
Speaker respectively. Use the soft buttons for focusing each setting.
With the arrow (←) selected for the Rotary Speaker, its output channel
or bus will follow that of the Organ.
ABOUT THE ROTARY SPEAKER AUTO SETTING
When set to “Auto” the Rotary Speaker will correspond to the Organ,
Piano A/B or Synth A/B/C output settings – in that order of priority.
If the Organ is using the Rotary Speaker effect, the Rotary output will
always correspond to that of the Organ. However, if a Piano Layer uses
the Rotary and the Organ does not, the Rotary Speaker will instead
follow the output settings of that Piano Layer.
RANGE
Range Organ (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34
Range Organ (Per Program): Main (default), Sub I, Sub II, Sub III
Range Rotary (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34, ←, Auto
(default)
Range Rotary (Per Program): Main, Sub I, Sub II, Sub III, ←, Auto
(default)
4 - PIANO OUTPUT CHANNEL/BUS
Determines the output channel or bus for the Piano A and B Layer
respectively. Use the soft buttons for focusing each Layer.
With the arrow (←) selected for Piano B, its output channel or bus
corresponds to that of Piano A.
Range A (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34
Range A (Per Program): Main (default), Sub I, Sub II, Sub III
Range B (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34, ←(default)
Range B (Per Program): Main, Sub I, Sub II, Sub III, ←(default)
5 - SYNTH OUTPUT CHANNEL/BUS
Determines the output channel or bus for the Synth A, B and C Layer
respectively. Use the soft buttons for focusing each Layer.
With the arrow (←) selected for Synth B or C, its output channel or bus
corresponds to the Layer at the left.
Range A (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34
Range A (Per Program): Main (default), Sub I, Sub II, Sub III
Range B, C (Global): 1-2, 3-4, 1, 2, 3, 4, 12+34, ←(default)
Range B, C (Per Program): Main, Sub I, Sub II, Sub III, ←(default)

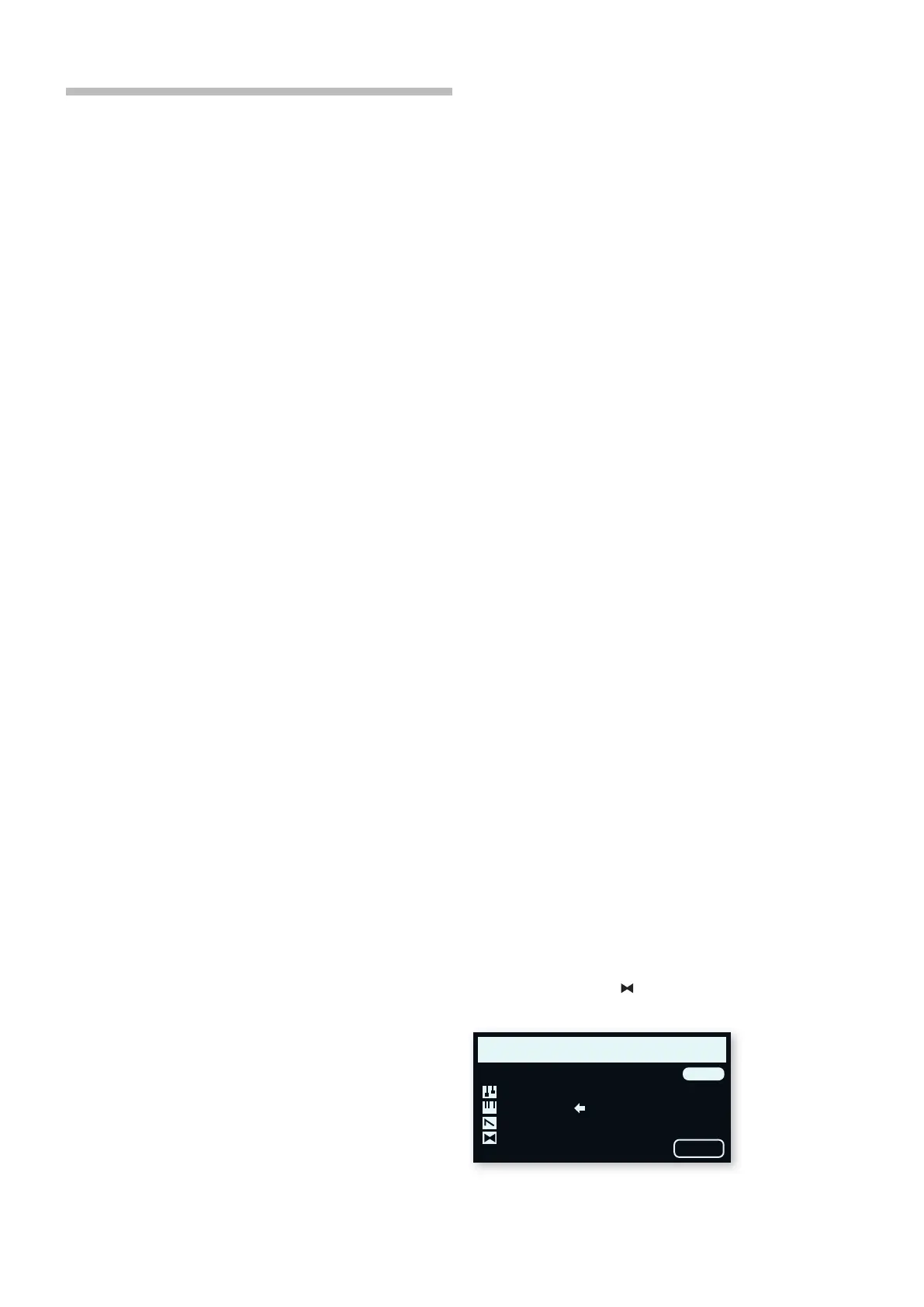

6 - OUTPUT OVERVIEW
The Output Overview page shows all current Output settings, and allows
for changing any of these settings – from a single page. In Per Program
Output Routing mode the bus to which each Layer is assigned is
shown, whereas the physical output numbers (1-4) are shown when in
Global mode. A “Prog” icon further indicates whether Per Program
mode is active or not. The “ “ icon represents the Rotary Speaker
setting.
Use the Page buttons to focus a setting and the dial to change its value.
l Pressing the “Out” soft button (Program 4 button) shows the
physical output numbers to which each bus is assigned.
Main
Sub I
Sub II Sub III Sub III
Auto
A B
Out
C
OUTPUT OVERVIEW 6/6
PROG
