9. EFFECTS | 47
9

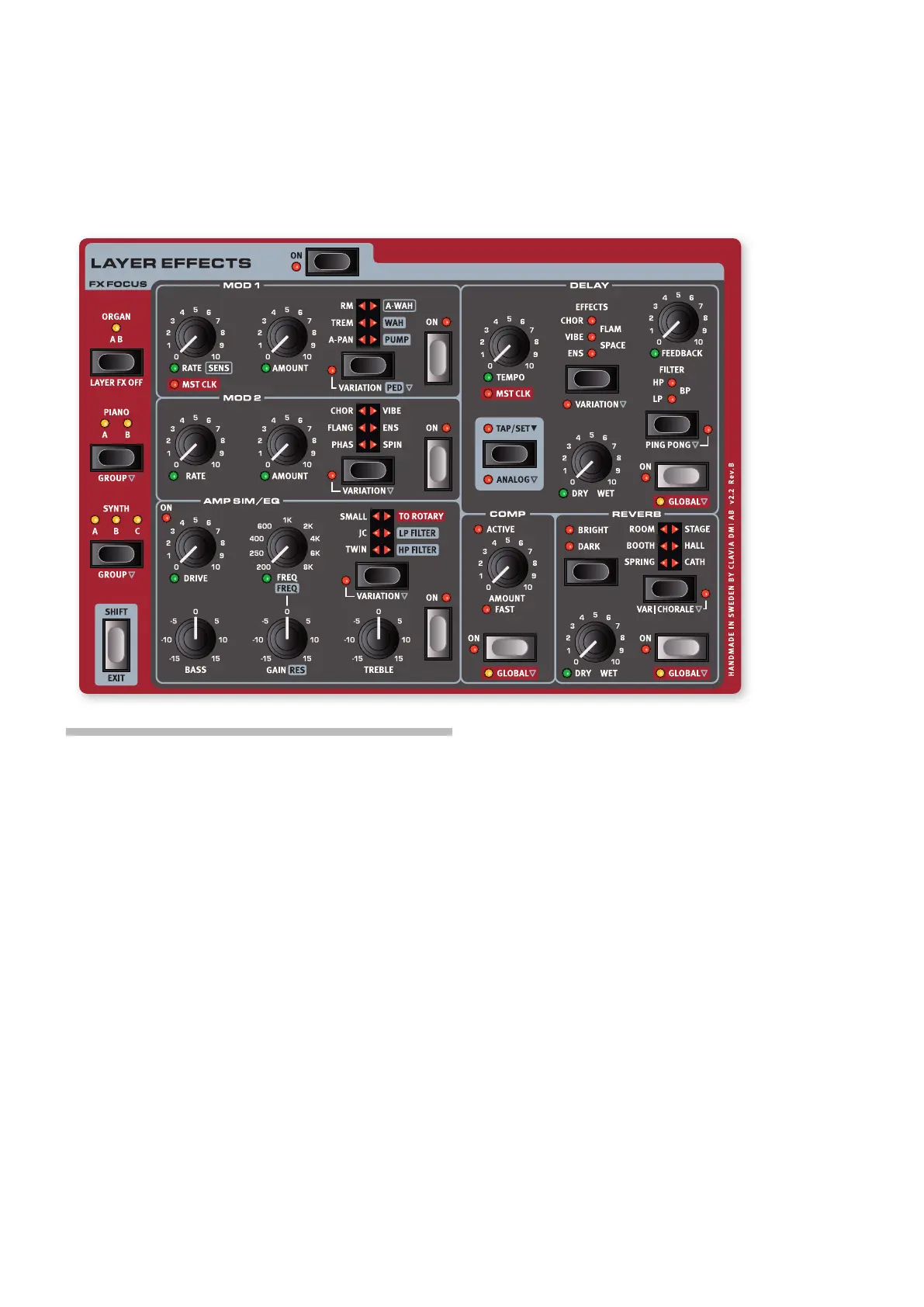

LAYER EFFECTS
OVERVIEW
Each Layer on the Nord Stage 4 has its own complete set of effects,
apart from the two Organ Layers (A and B) which share the same effects
chain. This means there are six instances of each effects unit for every
Program, each of which can have its own settings.
The Rotary Speaker, placed at the far left of the panel is different from
other effects in that it comes in one single instance per Program. Any
Layer can be routed to the Rotary Speaker, but its speed and drive
settings are common for all sounds passing through it.
All effects can be turned On or Off at once by pressing Layer Effects ON.
FX FOCUS (EFFECTS FOCUS)
The focus for the Layer Effects section automatically follows the focus
of Layer buttons in the Organ, Piano and Synth sections, as they are
pressed on the panel.
Focusing the effects for a particular Layer or Section for editing can also
be done manually, by pressing the ORGAN, PIANO or SYNTH button.
The current FX Focus is indicated both by the yellow FX FOCUS LED
next to each Section’s On button, as well as by LEDs in the FX Focus
section.
GROUP MODE
The effects for the Piano and Synth sections can either be independent
per Layer or set to be shared for all its Layers. Pressing GROUP
(Shift+Piano/Synth FX Focus) toggles between these two modes. In
Group mode all LEDs for that Section are lit. In Layer mode, only the
LED for the currently focused Layer is lit.
When entering Group mode, the settings for the currently focused
Layers are applied to all Layers of that Group. When exiting Group mode
all Layers will share the same settings until modified manually.
ACTIVATING EFFECTS AND GLOBAL MODE
To enable an effect, press its ON button. The Delay, Compressor and
Reverb effects can be set to GLOBAL mode, which applies the effect
to all Layers of all Sections. This is done by pressing Shift+On for that
effect. When turning Global mode off all Layers will share the same
settings for that effect, until modified manually.
