48 | NORD STAGE 4 USER MANUAL OS V1.4X
MOD 1

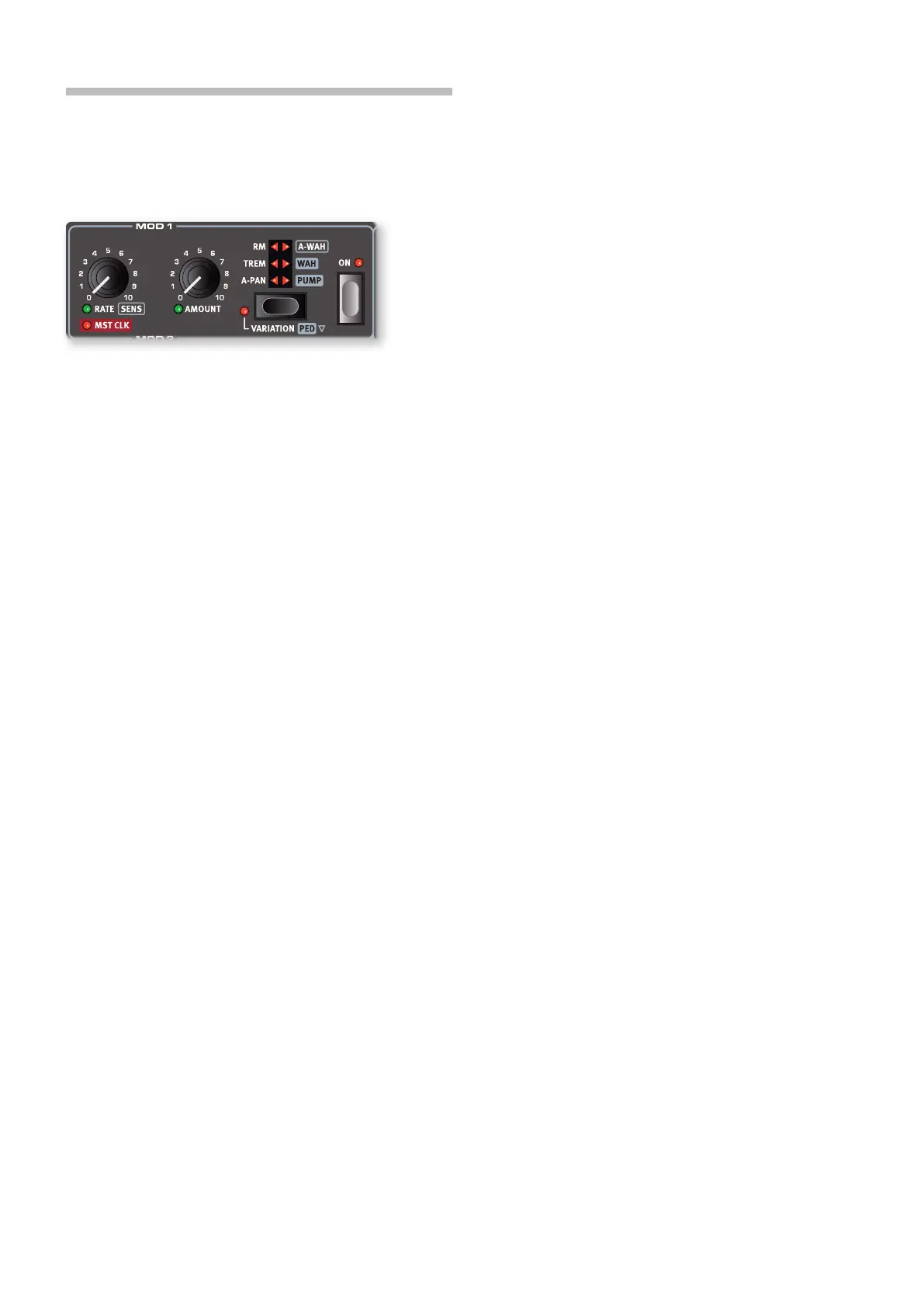

The MOD 1 unit offers six different types of modulation effects and
its selector button is used to switch between them. For each effect
there is a VARIATION or PED (Pedal) function, activated by pressing
Shift+Selector button.
A-PAN (AUTO PAN)
The A-PAN is an automatic panning modulation that smoothly pans the
signal between the Left and Right outputs in the stereo panorama.
The rate and the amount of panning are controlled with the RATE and
AMOUNT knobs.
The VARIATION for the A-Pan effect is a harder pan waveform shape,
providing the classic electric piano “vibrato” character.
TREM (TREMOLO)
TREM (Tremolo) provides a volume modulation that continuously varies
the volume of the output signal. Tremolo is a very common effect to use
with electric pianos.
Use the RATE and AMOUNT knobs to control the Tremolo rate and its
depth. Note that the output volume is at maximum level at zero Amount
setting.
The VARIATION for the Tremolo switches to a square wave shape, which
gives a harder and more distinct volume modulation. Useful for gate-like
sounds or as a “slicer” effect at high amounts.
RM (RING MODULATION)
Ring Modulation (RM) is a type of modulation where two signals are
multiplied with each other, resulting in an in-harmonic “bell like” sound.
In the Nord Stage 4 the instrument signal is multiplied with a sine wave.
The pitch of the sine wave is set with the Rate knob and the amount of
ring modulation with the Amount knob.
The VARIATION mode provides a stereo version of the Ring Modulation
effect.
A-WAH
A-WAH (Auto-Wah) is a close relative to the Wah-Wah effect described
below. The A-Wah uses the signal’s amplitude (envelope follower) to
control the filter sweep range, making the effect velocity sensitive. The
sensitivity and range of the effect is controlled with the SENS (Rate) knob
and the wet/dry mix with the Amount knob.
The VARIATION of the A-Wah works in the same way, but is based on a
different model which produces a distinctly different character.
WAH
The WAH (Wah-Wah) modulation effect is a type of resonant lowpass
filter that can be swept across the frequency range. During the sweep,
the filter’s characteristics also changes.
In the default non-pedal mode the RATE knob controls the rate of an
LFO, which provides a cyclic version of the classic Wah effect. This can
be used for emulating up-down pedal playing, slow filter sweeps and
much more.
The dry/wet mix of the effect is controlled with the AMOUNT knob.
In PED mode the Wah-Wah can be controlled by an expression pedal
attached to the Ctrl Ped jack. With no expression pedal connected
the Rate knob controls the static position of the filter. When a pedal is
connected the filter position is instead controlled by the pedal.
i When set to PED, the Rate (frequency) of the effect can still be
morphed, either for setting up a custom range for the pedal sweep
or for control from other sources. Read more on how to set up a
Morph on page 37.
PUMP
The PUMP effect provides a type of amplitude modulation which is
otherwise achieved through the use of a compressor effect, often
triggered by an external control signal through its side-chain input. The
result is a quick “duck” in level, followed by a slower recovery phase.
In the default, non-pedal mode the RATE dial controls the rate of the
LFO.
l A common application for the Pump effect would be to synchronize
it to the Master Clock (read more below) and set the rate to quarter
notes (¼).
In PED mode the Pump effect can be controlled from a foot pedal, and
“played” manually, for instance in sync with a kick drum.
The used pedal could be either the left or middle pedal of a Nord Triple
Pedal, or any pedal attached to the Foot Switch jack. Settings related to
this are found in the Pedal menu section, on page 58.
MASTER CLOCK
With the A-Pan, Trem, LFO-Wah or Pump effect selected, turning the
RATE dial clockwise synchronizes the Mod 1 Rate with the Master
Clock. In MST CLK mode, the Rate is presented as subdivisions of the
Master Clock tempo.
