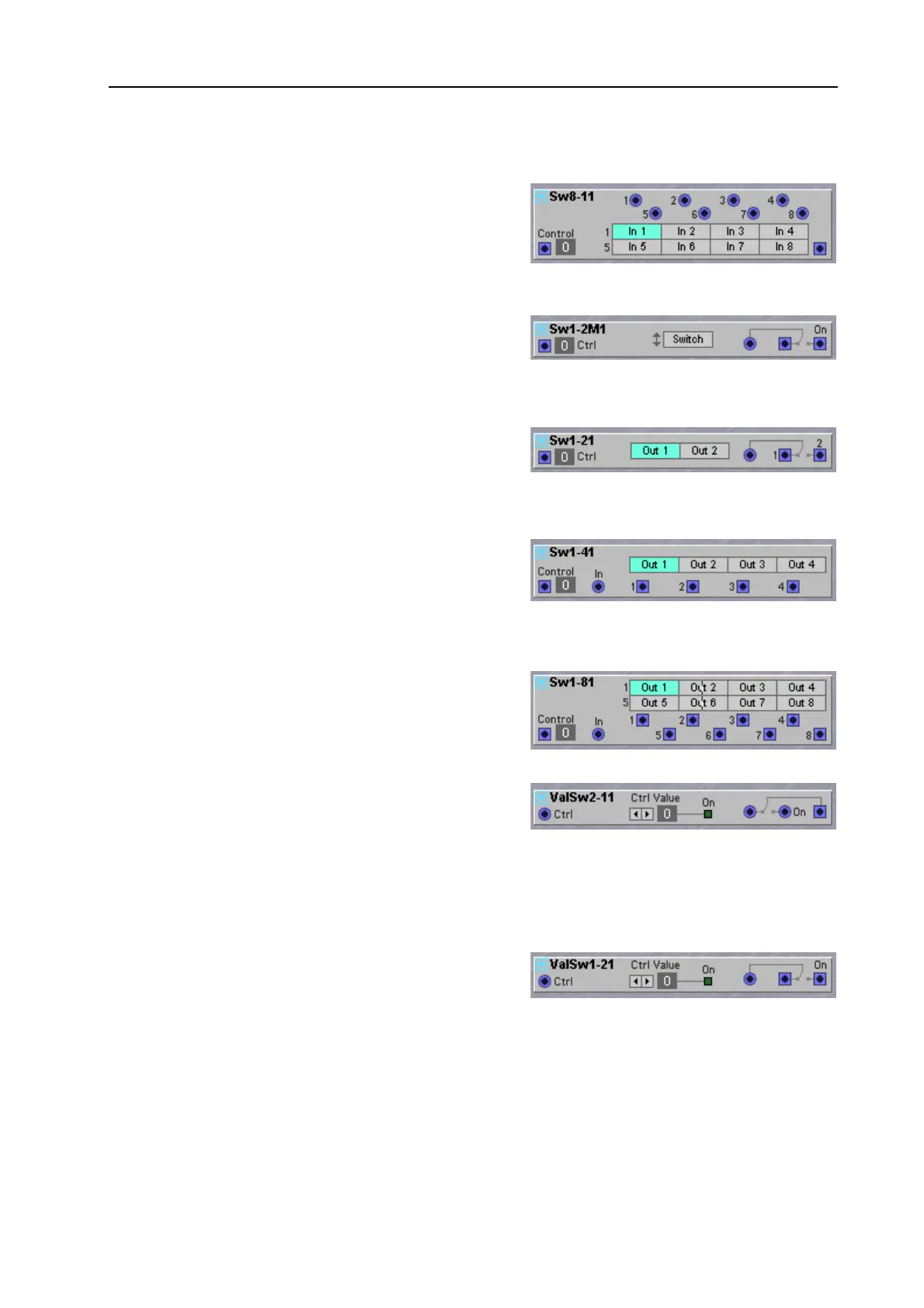

NORD MODULAR G2 V1.4x 13. Module reference: Switch group
Page 223
S
W
8-1
The 8-1Switch has eight inputs with an attenuator each,
one output and eight Channel Select radio buttons
which can also be labelled. See also "Common Switch
parameters”
S
W
1-2M
The 1-2SwitchMom module has one input, two outputs
and one momentary Switch button which can also be
labelled. See also "Common Switch parameters”.
S
W
1-2
The 1-2Switch has one input, two outputs and two
Channel Select radio buttons which can also be labelled.
See also "Common Switch parameters”
S
W
1-4
The 1-4Switch has one input with an attenuator, four
outputs and four Channel Select radio buttons which
can also be labelled. See also "Common Switch
parameters”
S
W
1-8
The 1-8Switch has one input, eight outputs and eight
Channel Select radio buttons which can also be labelled.
See also "Common Switch parameters”
V
AL
S
W
2-1
The 2-1 Value Switch switches between two inputs at a
definable Control signal input value.
C
TRL
V
ALUE
ARROW
BUTTONS
Set the lower limit where the switch should change to the On input channel. Range: 0-64 units in steps
of 1 unit. See also "Common Switch parameters”.
V
AL
S
W
1-2
The 1-2 Value Switch directs an incoming control/audio
signal between two outputs at a definable Control signal
input value.
C
TRL
V
ALUE
ARROW
BUTTONS
Set the lower limit where the switch should redirect the input signal to the On output. Range: 0-64 units
in steps of 1 unit. See also "Common Switch parameters”.
