13. Module reference: Switch group NORD MODULAR G2 V1.4x
Page 224
W
IND
S
W

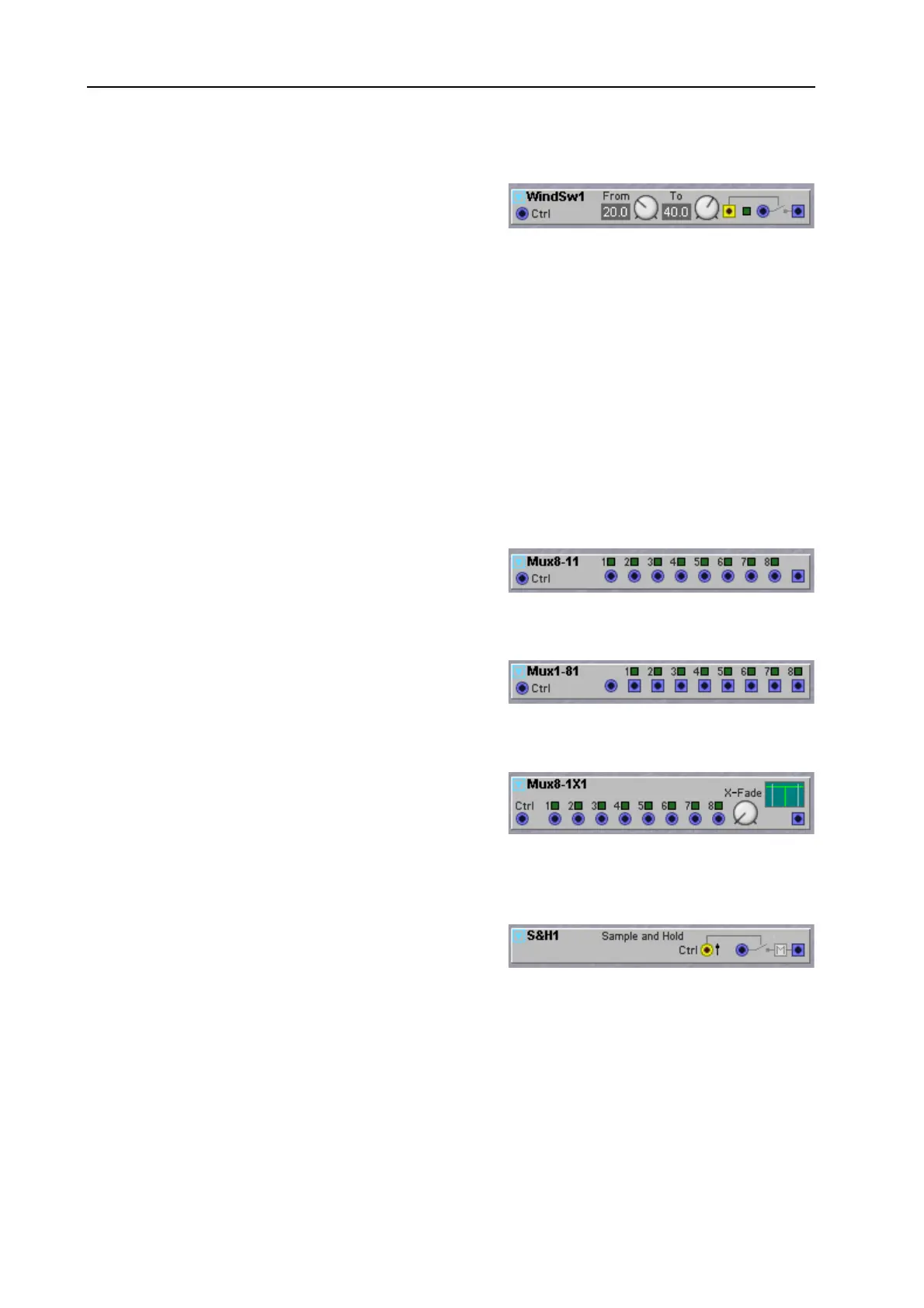

The Window Switch “closes” when an incoming
Control signal value is within the range set with the
From and To parameters. When the switch closes, a high
logic gate signal is also output from the yellow logic output.
F
ROM
KNOB
Set the lower limit where the switch should close. Range: 0.0-64.0 units in steps of 0.5 units. Note: if the
From value is higher than the To value, the switch never closes.
T
O
KNOB
Set the upper limit where the switch should open. Range: 0.0-64.0 units in steps of 0.5 units. Note: if the
From value is higher than the To value, the switch never closes.
G
ATE
OUTPUT
The yellow logic output sends out a high logic gate signal when the switch is closed. See also "Common
Switch parameters”.
M
UX
8-1
The 8-1Multiplexer has eight inputs and one output. The
channels are enabled by sending a control signal on the
Ctrl input. See also "Common Switch parameters”.
M
UX
1-8
The 1-8Multiplexer has one input and eight outputs. The
channels are enabled by sending a control signal on the
Ctrl input. See also "Common Switch parameters”
M
UX
8-1X
The 8-1 X-Fade Multiplexer has eight inputs and one
output. The channels are enabled by sending a control
signal on the Ctrl input. You can also define the amount
of crossfade between adjacent channels with the X-Fade
knob. The crossfade function is displayed in the graph. See also "Common Switch parameters”.
S&H
This module takes samples of the values of an incoming
signal and holds them at the output. The sampling of the
input signal occurs every time the signal on the Clk input
changes from a logic
LOW
to a logic
HIGH
signal (the positive edge). In between the positive edges of the
clocking signal, the module holds the value of the latest sample on the output. See also "Common Switch
parameters”.
Tip! The S&H module is in essence a storage or memory cell. Traditionally it is often used to generate
‘stairway’ arpeggios by sampling an Lfo waveform or random notes by sampling a noise signal.
The S&H is also a very important synchronisation module, imagine that the keyboard Gate and Note
signals are first sampled at the rate of the master tempo clock before being passed on to oscillators and
envelope generators. This will delay the played notes until the next master clock pulse and get all your
