13. Module reference: Filter group NORD MODULAR G2 V1.4x
Page 214
L
VL
With the Lvl knob you attenuate the input signal [A
TTENUATOR
T
YPE
I].
L
O
G
AIN
With the Lo gain knob you change the gain at 80Hz. Range -18 to +18 dB.
H
I
G
AIN
With the Hi gain knob you change the gain at 12kHz. Range -18 to +18 dB. See also "Common Filter
parameters”.
E
Q
3B
AND

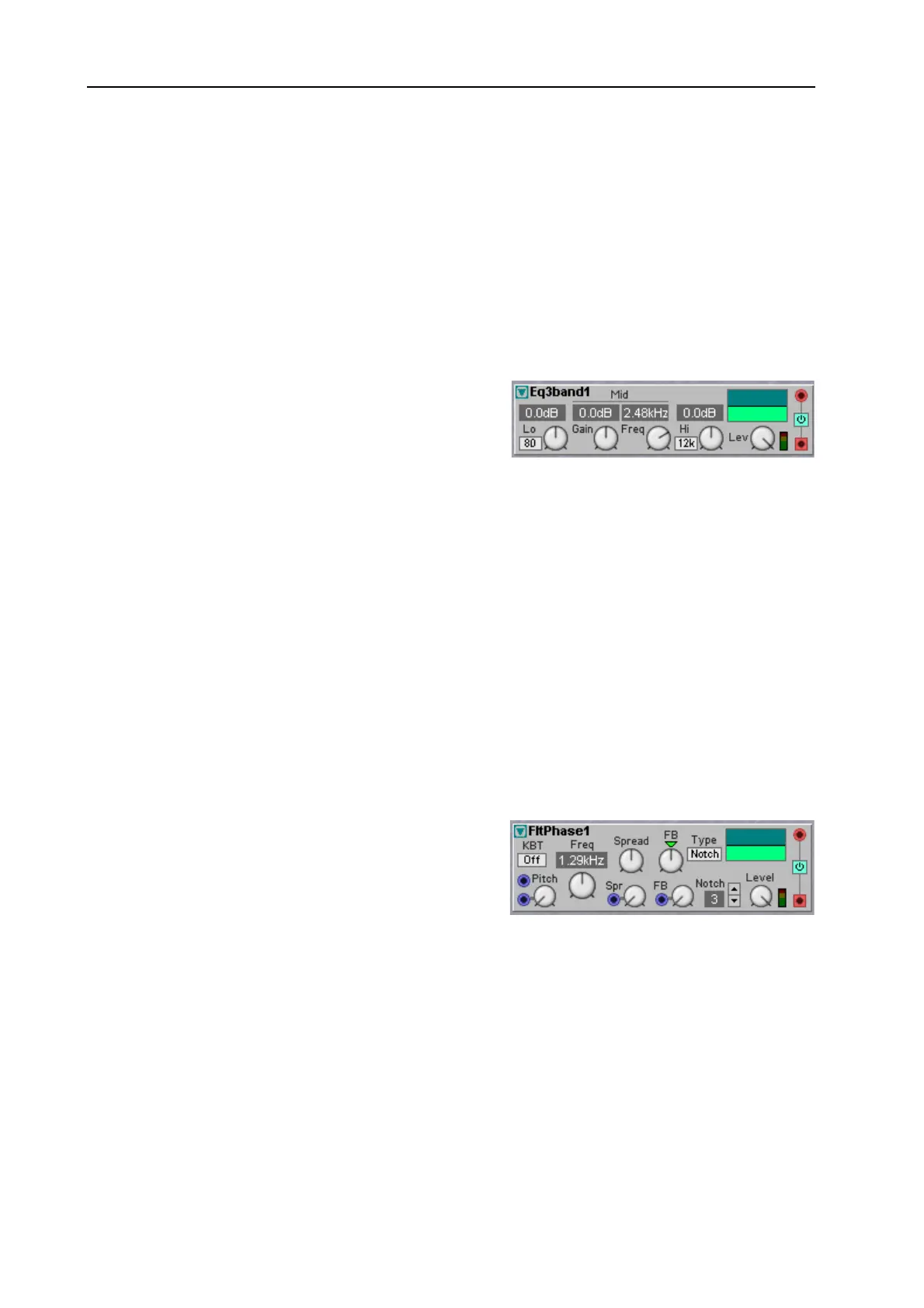

The 3 band EQ is a treble and bass equalizer with
sweepable Mid frequency plus gain controls for the Mid
band and for the fixed 80Hz and 12kHz frequency
bands. It has also a master level control.
L
O
G
AIN
With the Lo gain knob you change the gain at 80Hz. Range -18 to +18 dB.
M
ID
G
AIN
With the Mid Gain knob you change the gain at the Mid frequency (see below). Range -18 to +18 dB.
M
ID
F
REQ
With the Mid Freq control you change the center frequency of the Mid band. Range: 100Hz to 8.00 kHz.
H
I
G
AIN
With the Hi gain knob you change the gain at 12kHz. Range -18 to +18 dB.
L
VL
With the Lvl knob you attenuate the input signal [A
TTENUATOR
T
YPE
I].
See also "Common Filter parameters”.
F
LT
P
HASE
This is a 14-pole phase filter with peak spread control
and adjustable feedback. It features six allpass filters
which displace the phase 180 degrees each. It is possible
to select the number of allpass filters (1-6) to be used,
giving from one to six notches/peaks.
S
PREAD
With the Spread rotary knob you set the distance between the peaks. The peak distance can be modulated
from an external source using the blue control signal input and the level attenuator [A
TTENUATOR
T
YPE
I].
FB
With the Feedback knob you set the phaser feedback, i.e the signal feedback to the allpass filters. You
can have a negative or positive feedback. At the 12 o’clock position feedback is zero. Click on the green
triangle above the knob to set the feedback to 0. The feedback can be modulated from an external source
using the blue control signal input and the level attenuator [A
TTENUATOR
T
YPE
I].
