NORD MODULAR G2 V1.4x 13. Module reference: Filter group
Page 215
N
OTCH
By clicking on the up and down arrow buttons you select the number of notches (allpass filters). 1 to 6
notches can be selected.
T
YPE
Click to select Notch, Peak or Deep. In Notch mode, the signal notches are attenuated. In Peak mode,
the signal peaks are amplified and in Deep mode, the signal notches and peaks are attenuated and
amplified. The different frequency characteristics are displayed in the graph (see below).
L
EVEL
KNOB
To the right of the module is the input level attenuator [A
TTENUATOR
T
YPE
I].

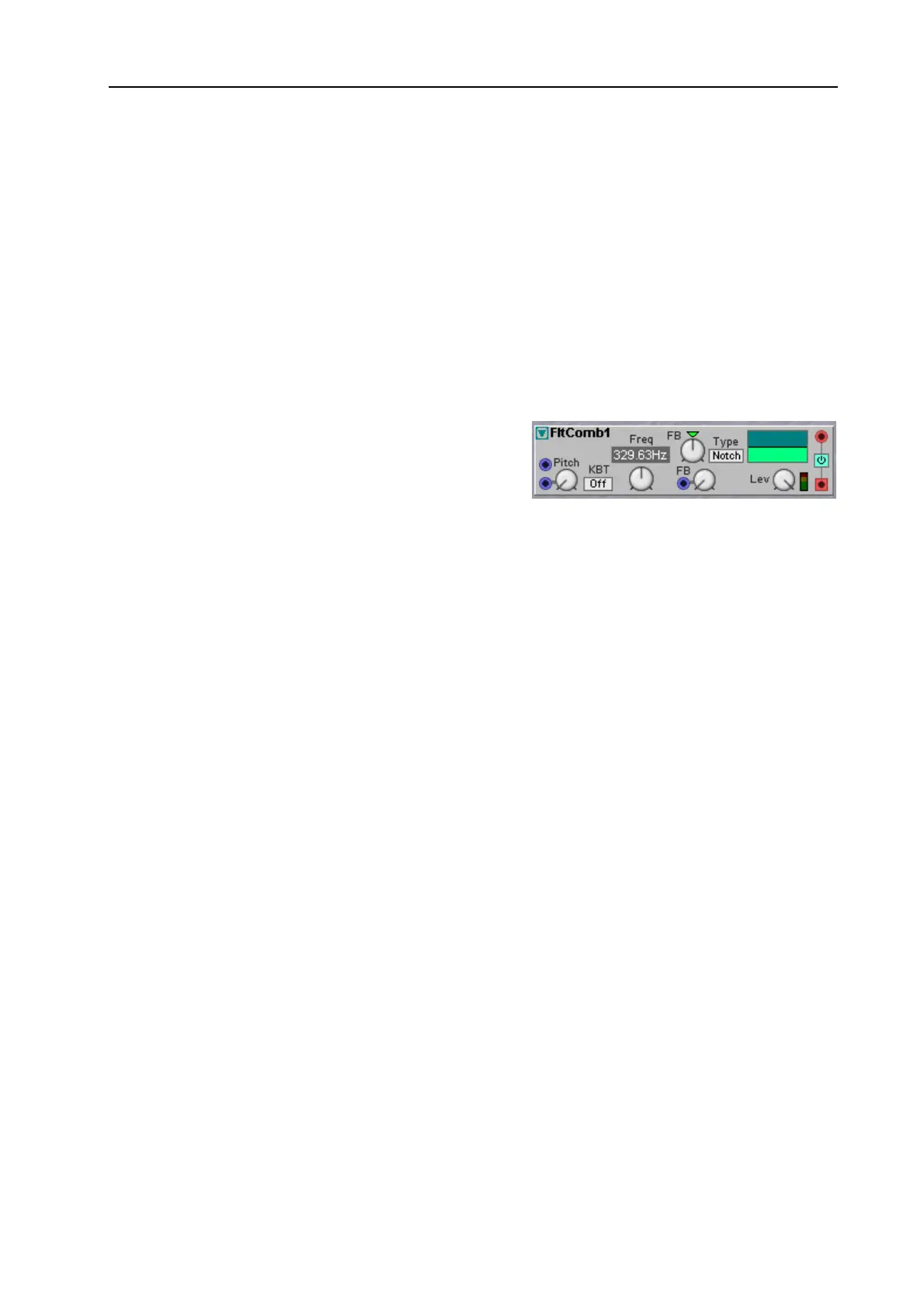

F
LT
C
OMB
This is a Comb filter with adjustable feedback.
Note that the Comb filter uses
DSP
audio delayline
memory.
F
REQ
With the Freq knob you set the distance, in Hz, between the peaks/notches.
FB
With the Feedback knob you set the signal feedback to the comb filter. You can have a negative or
positive feedback. At the 12 o’clock position feedback is zero. Click on the green triangle above the knob
to set the feedback to 0. The feedback can be modulated from an external source using the blue control
signal input and the level attenuator [A
TTENUATOR
T
YPE
I].
T
YPE
Click to select Notch, Peak or Deep. In Notch mode, the signal notches are attenuated. In Peak mode,
the signal peaks are amplified and in Deep mode, the signal notches and peaks are attenuated and
amplified. The different frequency characteristics are displayed in the graph (see below).
L
EVEL
KNOB
To the right of the module is the input level attenuator [A
TTENUATOR
T
YPE
I].
