13. Module reference: Filter group NORD MODULAR G2 V1.4x
Page 212
R
ES
This function emphasizes the frequency peaks of the vowels. The more resonance, the more clearly the
vowels appear. Click on the green triangle above the rotary knob to reset to a medium value.
F
REQ
Sets the initial center frequency offsets of the vowels. The practical result of turning this knob would be
like pitch-shifting a sampled voice. Click on the green triangle above the rotary knob to reset to a medium
value.
F
REQUENCY
MODULATION
INPUT
[A
TTENUATOR
T
YPE
II]
The input for modulating the center frequency offset from a control source. The modulation amount is
determined by the rotary knob next to the inputs.
V
OWEL
DISPLAY
BOXES
Displays the three different selected vowels. Presets: A, E, I, O, U, Y, AA, AE, OE.
V
OWEL
NAVIGATOR
BUTTONS
Selects the vowels to be used. You can select up to three vowels and navigate between these with the
navigator knob (see below). Presets: A, E, I, O, U, Y, AA, AE, OE.
V
OWEL
MODULATION
INPUT
[A
TTENUATOR
T
YPE
I]
The input for modulating the navigation between the selected vowels. The knob next to the input is used
for attenuating the input level.
V
OWEL
NAVIGATOR
KNOB
Navigates between the vowels you selected with the vowel selectors. Note that this is a transformation
function - not a mix function.
L
EVEL
The Level knob is used for attenuating the input level [A
TTENUATOR
T
YPE
I]. See also "Common Filter
parameters”.

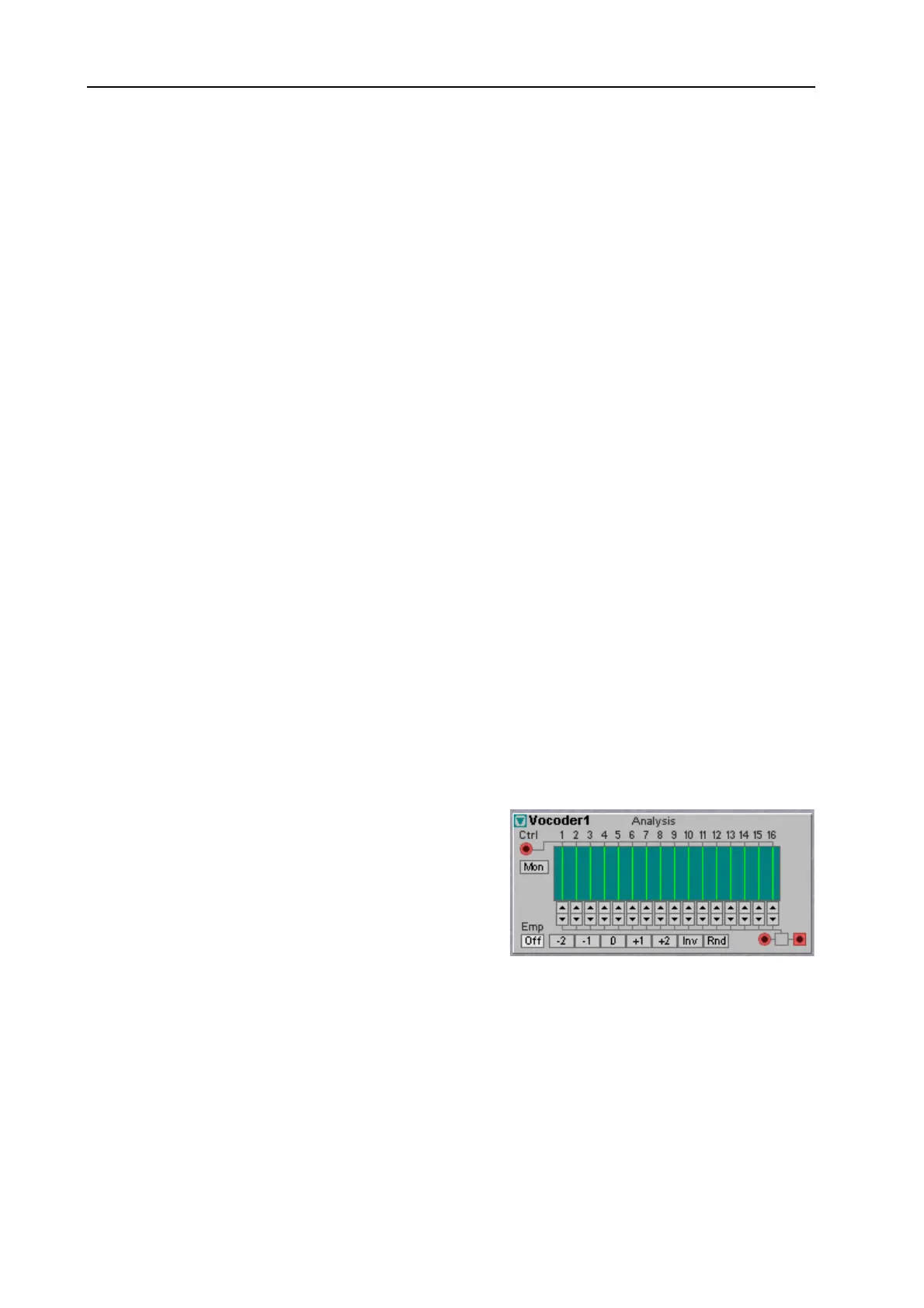

V
OCODER
The Vocoder module is a classic 16 band vocoder with
the ability to reroute the analysis bands. The basic
principle of a vocoder is to filter a synthesizer sound
with the help of another sound - a human voice for
example. The result when filtering a synth sound with a
voice would be a “singing” synthesizer.The actual notes
that come out of the vocoder are the notes played on the
synthesizer. To reach this effect the analysis frequency
spectrum is divided into separate frequency bands, in this case 16. These 16 frequency bands work like
16 bandpass filters, each controlling a defined frequency band of the synthesizer bank. An envelope
follower for each band determines the amplitude changes of the modulated sound.
With this vocoder module it is possible to reroute the analysis bands to any of the frequency bands of
the synthesis bank, creating really interesting frequency combinations.
Of course you can use any kind of sound in the analysis bank to shape the synthesizer sound. E.g. when
using a sampled drumloop instead of a microphone you can get funky percussive synth sounds. Feel free
to experiment.
