13. Module reference: Oscillator group NORD MODULAR G2 V1.4x
Page 186
A
LGORITHM
Select one of 32 different algorithms (connection paths) for the connected Operator modules. These 32
algorithms corresponds to the factory algorithms of the DX7 synthesizer. The algorithms are shown in
the graph.
E
XAMPLE

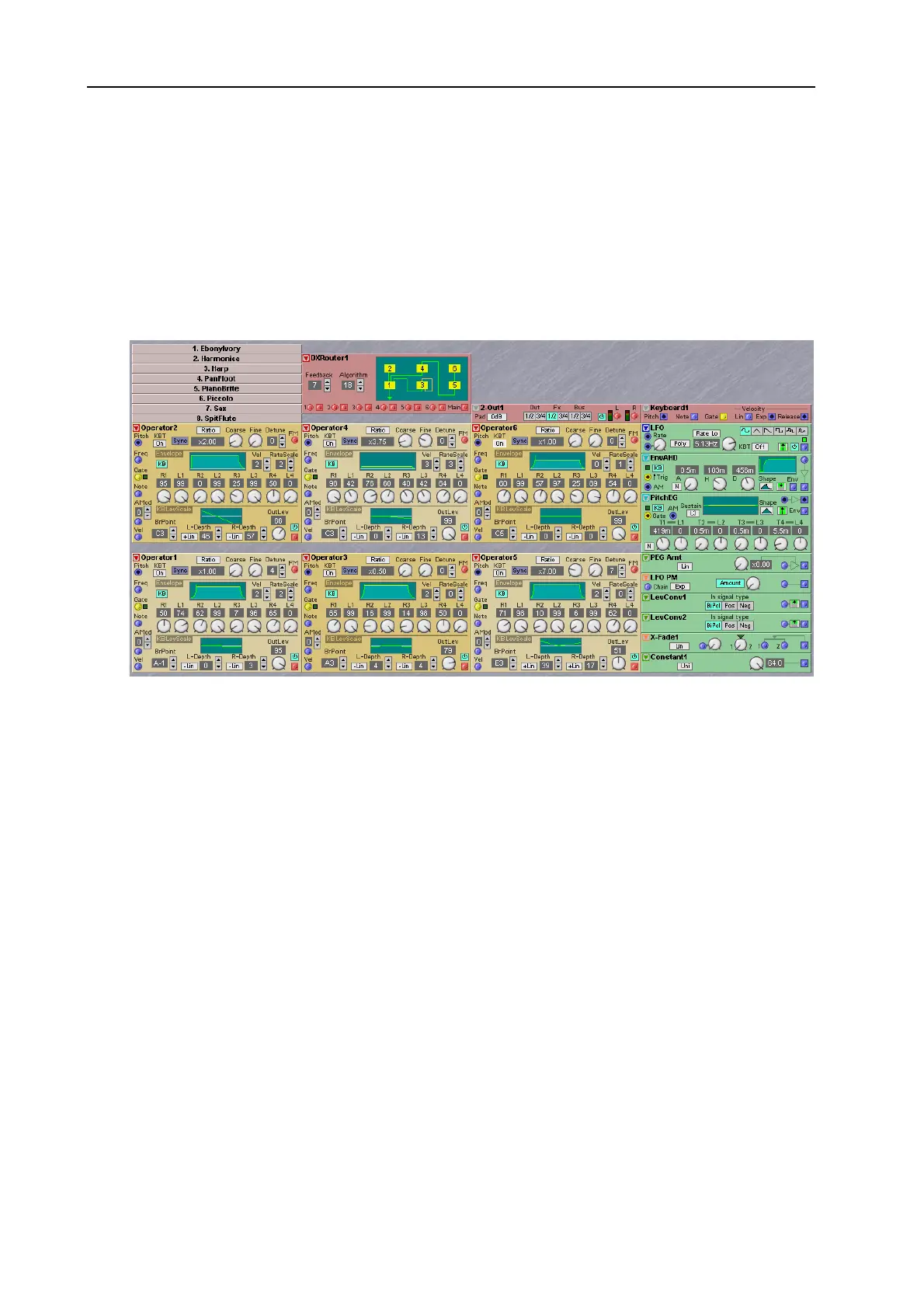

Below is an example of the DXRouter module used together with six Operator modules to form a basic
DX7 configuration. Connect each Operator output to the corresponding input of the DXRouter module.
Connect each output of the DXRouter module to the corresponding FM input of each Operator.
In the example above, algorithm 18 is used. If you look in the graph you can see that the output signals
of Operator 1 is mixed to the DXRouter output. You can also see that Operator 2, 3 and 4 are frequency
modulating Operator 1, Operator 6 is frequency modulating Operator 5 and Operator 5 is frequency
modulating Operator 4. Operator 3 also has an internal feedback loop as indicated by the orange line.
The internal feedback amount of Operator 3 in this algorithm can be set with the Feedback selector on
the DXRouter module.
