NORD MODULAR G2 V1.4x 13. Module reference: Oscillator group
Page 185
R1-R4 & L1-L4
Here you set the rates (R) and Levels (L) of the envelope. The lower the Rate values, the longer it will
take for the envelope to reach the next Level. L3 is the level at which the envelope will sustain.
Note that the Level settings also affect the Rates. The greater the difference between two adjacent Level settings,
the longer it will take to “travel” between the Levels. If two adjacent Level settings are the same, the Rate
value between these levels is of no importance.
AM
OD
This is the function for modulating the amplitude with a bipolar control signal. Patch a control signal to
the AMod input and set the sensitivity with the arrow buttons. Range 0-7 where 7 is the highest
sensitivity.
V
EL
INPUT
Here you control the levels of the level & rate envelope generator. The velocity sensitivity is set with the
Vel arrow buttons as described above. Note that lower envelope levels means that the entire envelope
cycle becomes faster!
B
R
P
OINT
Set the break point note number for the Keyboard Level Scaler. The value is displayed in the
corresponding display box. Range: A-1 to C8.
-L
IN
/-E
XP
/+E
XP
/+L
IN
Click to select Linear or Exponential attenuation or amplification characteristics of the level scaling.
L-D
EPTH
Set the amplification/attenuation slope for the lower key section with the arrow buttons. The value is
displayed in the corresponding display box.
R-D
EPTH
Set the amplification/attenuation slope for the upper key section with the arrow buttons. The value is
displayed in the corresponding display box.
GRAPH
Displays the two gain slopes and the break point graphically. The Y-axis represents the output level and
the X-axis the entire note range (A-1 to C8). the horizontal line represents the 0 dB output level.
DXR
OUTER

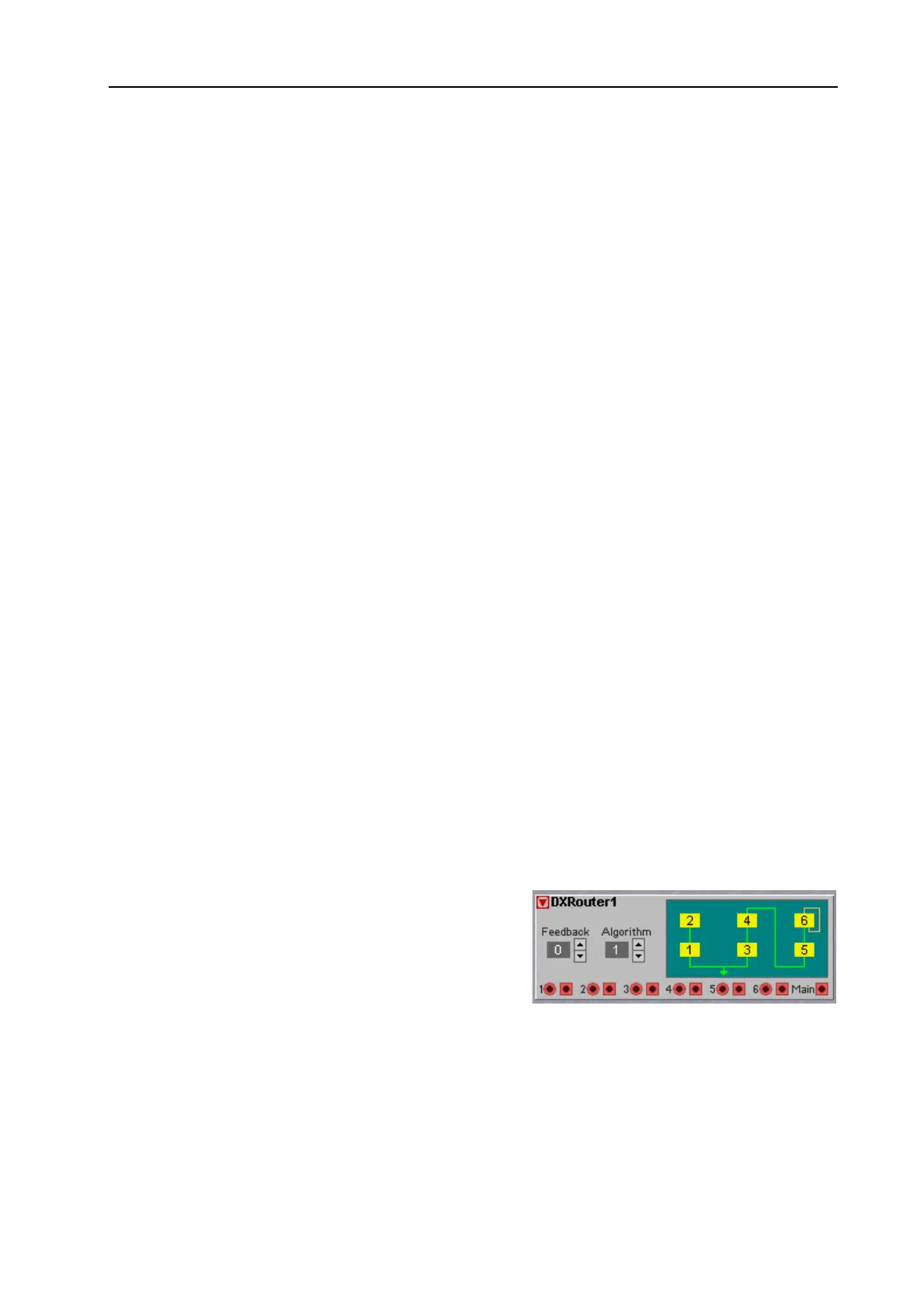

The DXRouter module is intended for use with the
Operator modules described on page 184. It works
exactly like the Algorithm selector on the DX7
synthesizer, i.e. it routes the Operator output signals
either to Operator FM inputs or to the audio mix output
and allows for different types of FM synthesis.
F
EEDBACK
Select the internal feedback amount for the connected Operator. An internal feedback loop is indicated
with orange lines in the DXRouter graph. Range 0-7.
