NORD MODULAR G2 V1.4x 13. Module reference: Oscillator group
Page 175
O
SC
B

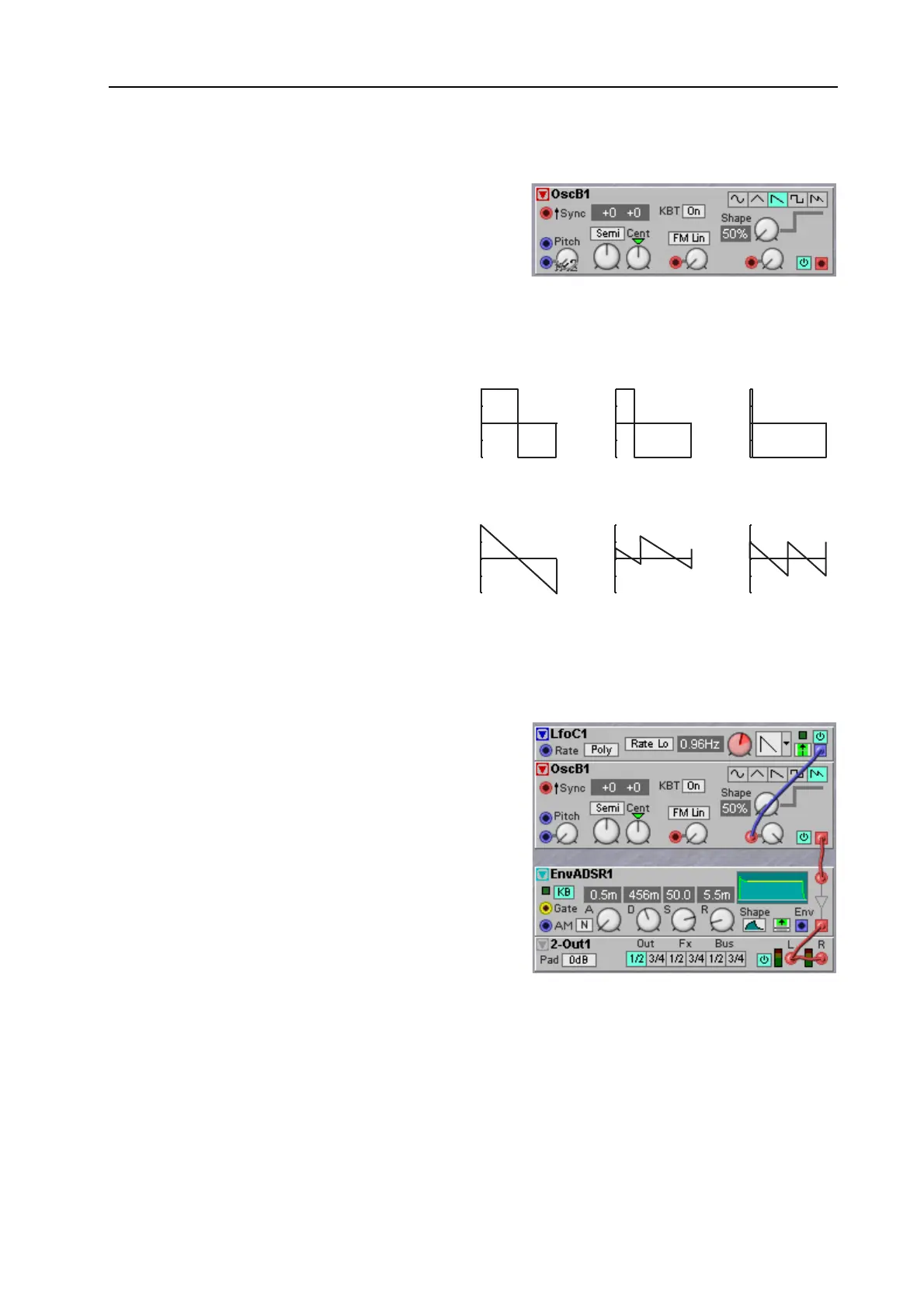

OscillatorB can produce one of five waveforms: Sine,
Triangle, Sawtooth, Pulse with selectable asymmetric
pulse width, Pulse with selectable symmetric pulse width
and DualSaw. The oscillator has two pitch modulation
inputs, one frequency modulation input, one sync
modulation input and a Shape modulation input.
S
HAPABLE
WAVEFORMS
The fourth waveform is Pulse
with selectable pulse width. This is
the type of waveform found in
most analog synthesizers. At 50%
Shape setting, the signal is a
perfect Square, at 75% a Pulse
with 25/75% pulse width and at
99% a Pulse with 1/99% pulse
width. When the Shape is
modulated with negative values,
the signal is “mirrored”.
The fifth waveform is a DualSaw.
At 50% Shape setting, the signal
consists of two Sawtooth waves in phase with each other, at 75% two Sawtooth waves slightly phase
shifted and at 99% two Sawtooth waves 90 degrees phase shifted When the Shape is modulated with
negative values, the signal is “mirrored”. See also "Common Oscillator parameters”.
E
XAMPLE
OF
USING
THE
D
UAL
S
AW
This is an example on how to use the DualSaw
waveform to create the sound of two steadily detuned
sawtooth waveforms. When a Lfo sawtooth is used and
the Shape modulation knob is fully open the same signal
is produced as when mixing two sawtooth oscillators
(note that when the Shape modulation knob is not fully
open it will cause clicks in the sound). One of the two
oscillator sawtooths will have the normal pitch of the
oscillator, while the other sawtooth is detuned by a
frequency which is equal to the rate of the Lfo sawtooth.
Depending on whether the Lfo sawtooth is sloping up or
down the second oscillator sawtooth is detuned down or
up. The detuning of the second sawtooth is an equal
amount of Hz over the keyboard range, making the detuned sound too lively in the lower and too static
in the higher frequency ranges. Assigning the keyboard morph to the Lfo rate knob can correct the
detune, making the unisono effect sound more balanced over the whole keyboard range.
Pulse
DualSaw
Shape: 50%
Shape: 25% Shape: 1%
