13. Module reference: Oscillator group NORD MODULAR G2 V1.4x
Page 176
O
SC
C

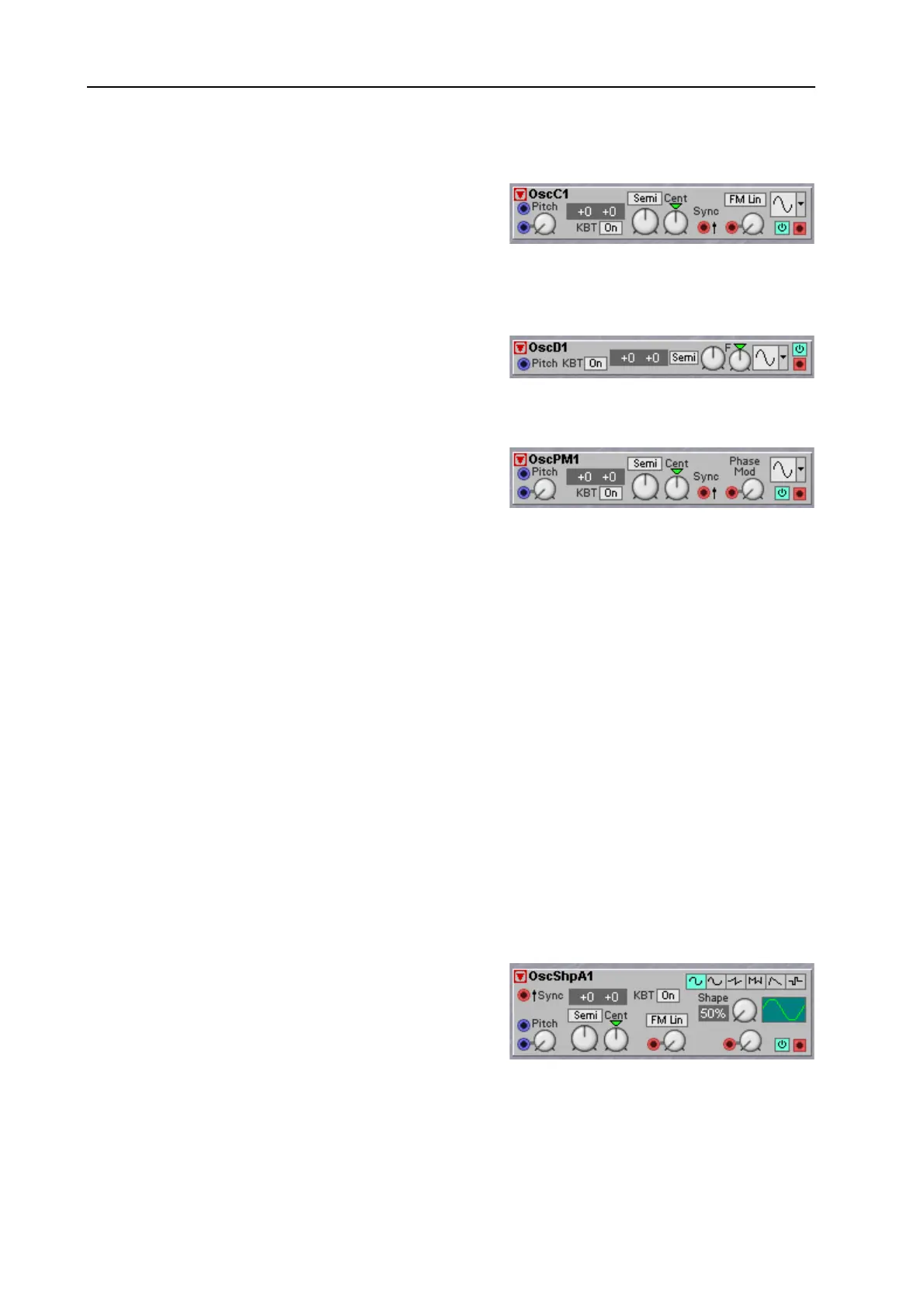

This oscillator produces one of six available waveforms.
It also has two pitch modulation input. The oscillator has
the same waveforms as OscA but uses less Patch Load
because of the waveform drop-down selector, meaning
that waveforms must be preselected in the Editor program. See also "Common Oscillator parameters”.
O
SC
D
This oscillator is similar to OscillatorC but has less
modulation inputs. See also "Common Oscillator
parameters”.
O
SC
PM
The Phase Modulation Oscillator uses the same basic
technology for signal generation as the DX7. By
constantly modulating the phase of a signal, an “FM”
type of signal is generated. The frequency bands track
the basic pitch similar to the ‘FM Trk’ modulation in OscB and C described above but with slightly
different characteristics. The OscPH also features inputs for pitch modulation and sync. See also
"Common Oscillator parameters”.
With this type of FM it is actually the phase of the waveform which is modulated, which means that the
waveform is shifted forwards and backwards at a fast audio rate. The advantage of this method is that
the modulation is not sensitive for what is named a DC component in the modulating signal. A DC
component shifts the waveform upwards or downwards, making its long term average a positive or
negative level. With true linear frequency modulation a DC component can detune the oscillator, which
happens with the the oscillators with the FM Lin and FM Trk modes. But when the phase is modulated
instead of the linear frequency parameter this detuning can never happen. This detuning is especially an
issue when selfmodulation by feedback of the output to the modulation input is used. Selfmodulation
works only reliable on this OscPM oscillator.
Tip! If the OscPM is set to 0 Hz in the Part tuning mode and initially reset by a short pulse on the Sync
input (e.g. by using the Status module Var. Change output) this module can act as a sine function. To use
this option, open the Phase Mod knob fully and add a linear mixer in front of the Phase Mod input. If
the linear mixer knob is set to [6.3 (8)], a control signal between -64 and +64 units will cover exactly 360
degrees of a sine function. The sine value will be available on the output of the module.
O
SC
S
HP
A
This Shape oscillator is able to generate a vast variety of
waveform shapes. There are six basic waveforms to
choose from. Since you can transform and modulate the
shape of each of these waveforms, it’s possible to
generate very interesting signals with very varying
harmonic content. The principle for all Sinewave based
signals is to start with a signal with a pure sinewave and then, by gradually transforming the signal, adding
more overtones and creating a more complex and rich signal. The sonic result of changing the shape is
