NORD MODULAR G2 V1.4x 13. Module reference: Note group
Page 169
P
ITCH
Signal: B
IPOLAR
G
ATE
Outputs a logic
HIGH
signal when the input signal level exceeds the Threshold level (see below).
Signal: L
OGIC
.
T
HRESHOLD
Set the threshold level for the input signal to generate the Gate signal (see above).
E
XAMPLE
PATCH

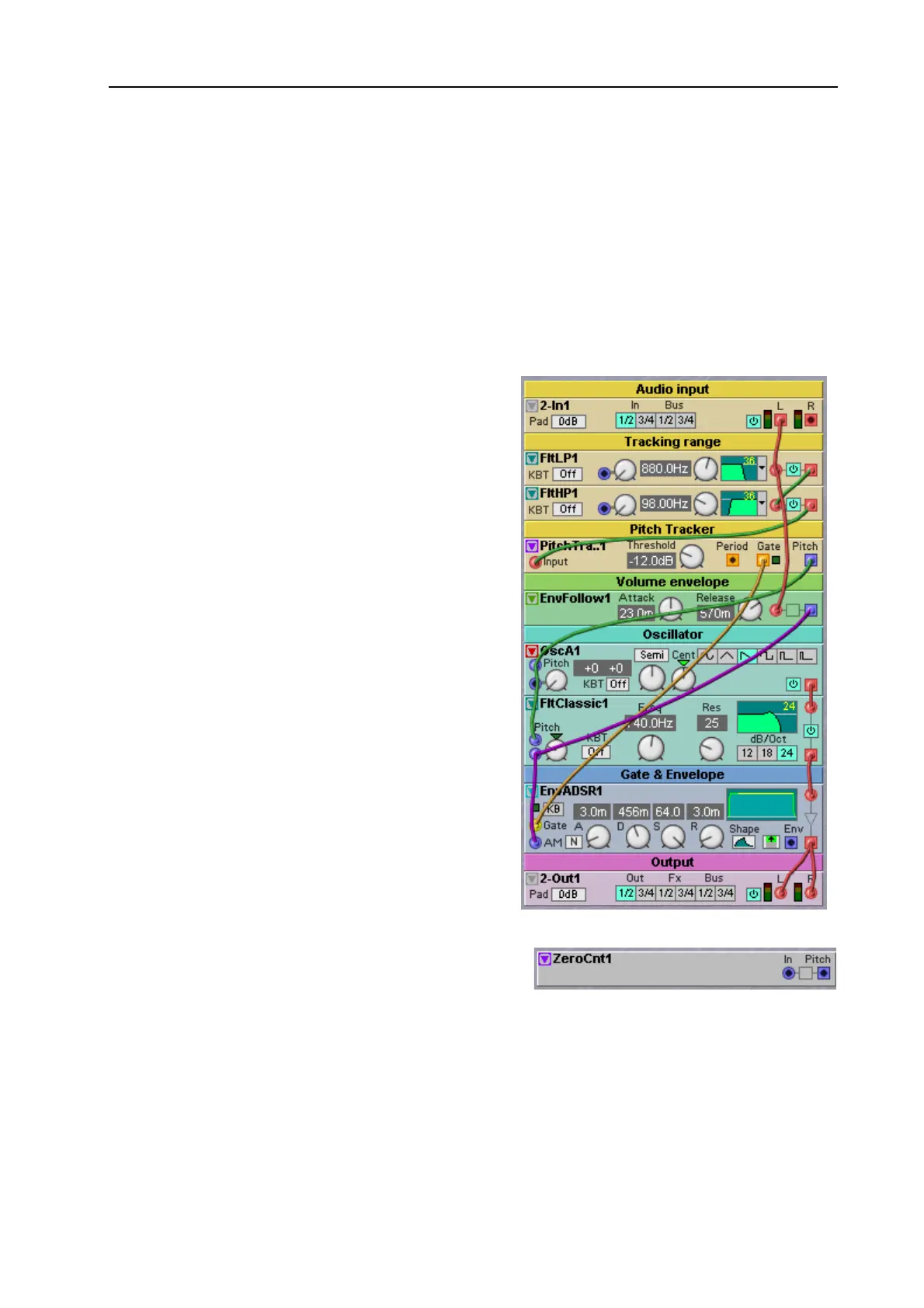

This example patch can be used when a microphone
is connected to the XLR input on the G2. The
oscillator OscA1 KBT button should be set to Off to
prevent the oscillator to also track the keyboard.
Though when the KBT button is On you can offset
the Pitch by the keyboard, note E4 will be the
reference Pitch to which you have to calculate the
Pitch offset. E.g. playing note E5 will transpose the
oscillator one octave higher as the pitch of the
incoming audio signal.
Z
ERO
C
NT
The Zero Crossing Counter module can be used for
detecting the pitch of input signals of a single simple
waveform. Note that for this module the input signal has
to be fairly simple regarding harmonic content. The practical pitch detection range is equal to the default
oscillator pitch range when tracking a red or orange signal, or the default Lfo range when tracking a blue
or yellow signal (set Lfo to 0.64 Hz).
The PitchTrack module uses a simple method which measures the time between two positive zero
crossings of the audio input signal. The measured time is then transformed into the Pitch control signal
output value. The advantage of this method is that it is very fast, the Pitch value is available immediately
at the end of each waveform cycle in the input signal. But this method expects reasonably simple
