Panel Reference Page 49

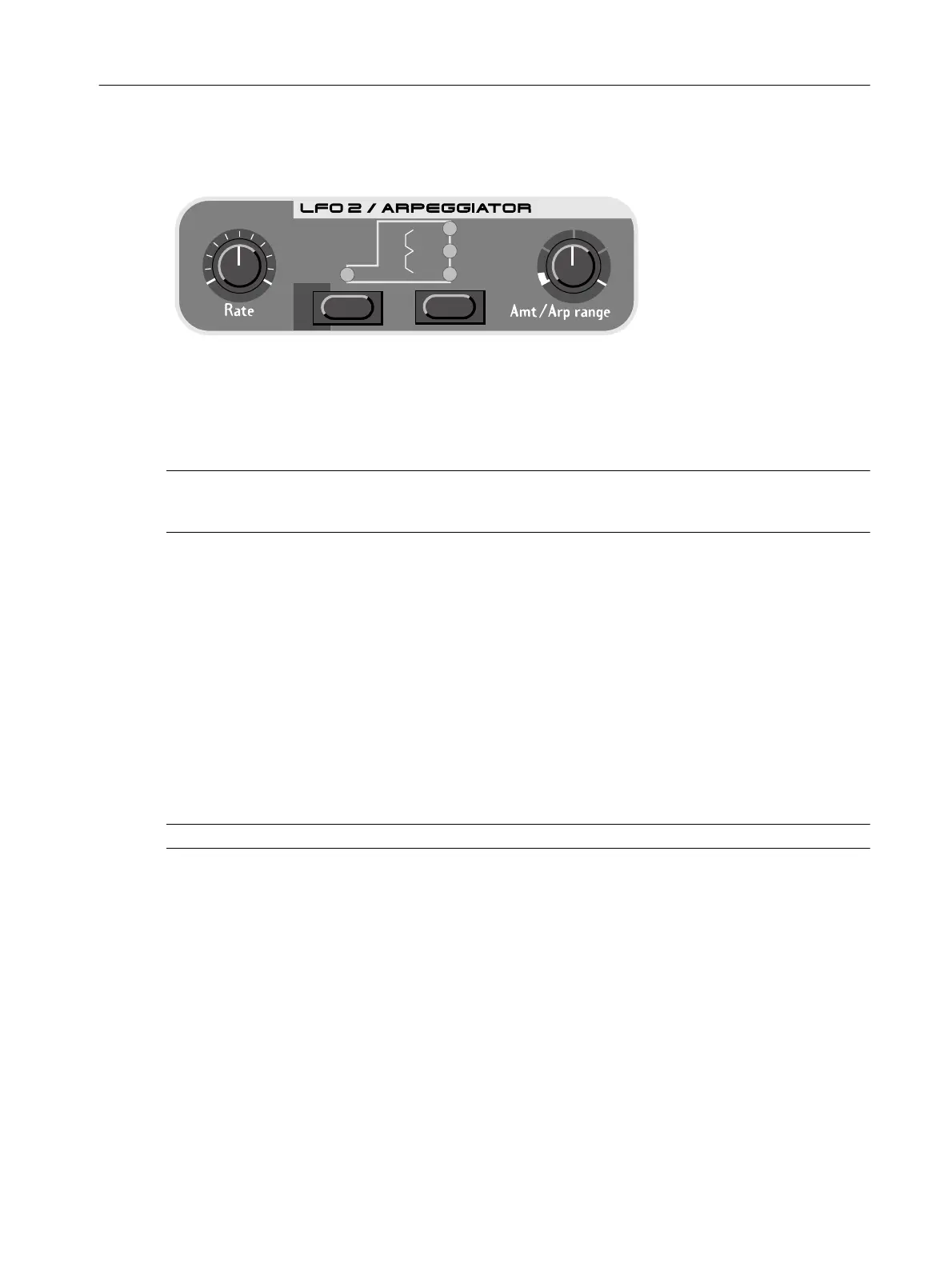

LFO 2/Arpeggiator
Arp switch
This switch is used to select functionality for LFO 2. When the indicator over the button is lit or blinks,
LFO 2 works as an arpeggiator (or an echo; see below). When the indicator is dark, it works as a regular
LFO. On the following pages, these two modes are referred to as “Arpeggiator mode” and “LFO mode”.
When you leave Arpeggiator mode by pressing the Arp button, the Arpeggio will be turned off, but the
LFO 2 function will not be activated until you press the right (LFO 2 Destination) button once. This lets
you adjust the Rate and Amt knobs before applying vibrato, wah-wah or tremolo.
LFO 2:Arpeggiator Mode
In this mode, LFO 2 works as an arpeggiator. If you take a chord and hold the keys pressed, the notes in
the chord will be played back repeatedly, one after the other. The parameters govern direction, range
and speed of the arpeggio:
Rate
This adjusts the speed of the arpeggio.
▼ When “Echo” is selected (see below), the Rate setting determines the “speed”, i.e. the delay-time between
each echo. A higher Rate setting gives a faster echo (shorter delay-time).
The arpeggio speed can also be controlled externally, via MIDI, see page 63.
Arpeggio Mode
By pressing the button to the right in the LFO2/Arpeggiator version, you can select in which direction the
arpeggio should run:
Arp Up: In this mode, the keys pressed on the keyboard will be played one after the other, from bottom
to top, at a speed set with the Rate button. For more details, see Arp Range below.
Arp Down: As Arp Up but downwards.
Arp Up/Down: To get an up/down arpeggio, press the button until both Arp Up and Arp Down are lit.
Rnd Arp: In this mode (the two upper LEDs lit), Nord Lead 2 will create random arpeggios from the chords
you play on the keyboard. This means that the notes in the chord are played back one at a time, but in
random order and in random octaves.
Echo: In this mode (The top LED lit), LFO2 creates an echo-effect by using repeated triggering with de-
creasing velocity (see explanation on the next page).
RND
ARP
H
O
L
D
ECHO
OSC 1+2
AMP
OCT 1
OFF
2
3
4
FILTER
UP
DWN
&
U D
