Warszawa, 2025-02-10
ENGLISH (EN)
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Workshop washer: 10-813
NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS
MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD
NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF
THE EQUIPMENT.
SPECIFIC SAFETY PROVISIONS
NOTE!
Read the operating instructions carefully, follow the warnings and safety
conditions contained therein. The appliance has been designed for safe
operation. Nevertheless: installation, maintenance and operation of the
appliance can be dangerous. Following the following procedures will
reduce the risk of fire, electric shock, injury and will reduce the installation
time of the appliance
READ THE USER MANUAL CAREFULLY TO FAMILIARISE
YOURSELF WITH THE APPLIANCE KEEP THIS MANUAL FOR
FUTURE REFERENCE.
SAFETY RULES
• ALWAYS familiarise yourself with the applications, limitations and
potential hazards of the machine. Read and familiarise yourself with the
entire operating instructions.
• ALWAYS wear appropriate protective clothing, gloves and safety
glasses, manufactured in accordance with the latest European safety
standards. Everyday goggles are not safety glasses.
• ALWAYS wash off any accidental splashes of degreaser on the skin,
and seek immediate medical attention if necessary.
• ALWAYS read the degreaser instructions carefully and follow the
manufacturer's instructions.
• ALWAYS check individual parts of the washer for damage. Inspect any
damaged part before using the washer to ensure that it will function
properly and perform its intended function. Any damage should be
repaired or the part replaced as appropriate. If in doubt, DO NOT use
the machine. Consult your local dealer or service centre.
• ALWAYS disconnect the washer from the power source before
servicing or cleaning.
• ALWAYS keep the work area clean. Cluttered areas and benches are
conducive to accidents, so any accidental spillage of degreaser should
be cleaned up immediately.
• ALWAYS ensure adequate lighting. The minimum light intensity should
be 300 lux. Ensure that the lighting is positioned in such a way that you
do not work in your own shadow.
• ALWAYS keep children away. All visitors should be at a safe distance
from the work area,
• especially when operating the device.
• ALWAYS keep the unit in the best possible condition. Keep the washer
clean to ensure the best and safest performance. Follow the
maintenance recommendations of this manual.
• ALWAYS ensure that the switch is turned off before connecting the
appliance to the power supply. This avoids accidental start-up.
• ALWAYS concentrate on the job at hand, no matter how trivial it may
seem. Remember that accidents are caused by carelessness resulting
from routine.
• ALWAYS maintain correct posture and balance and do not reach too
far. The best basis is to wear footwear with rubber non-slip soles.
• Keep the surroundings clean especially the floor in the vicinity of the
washer.

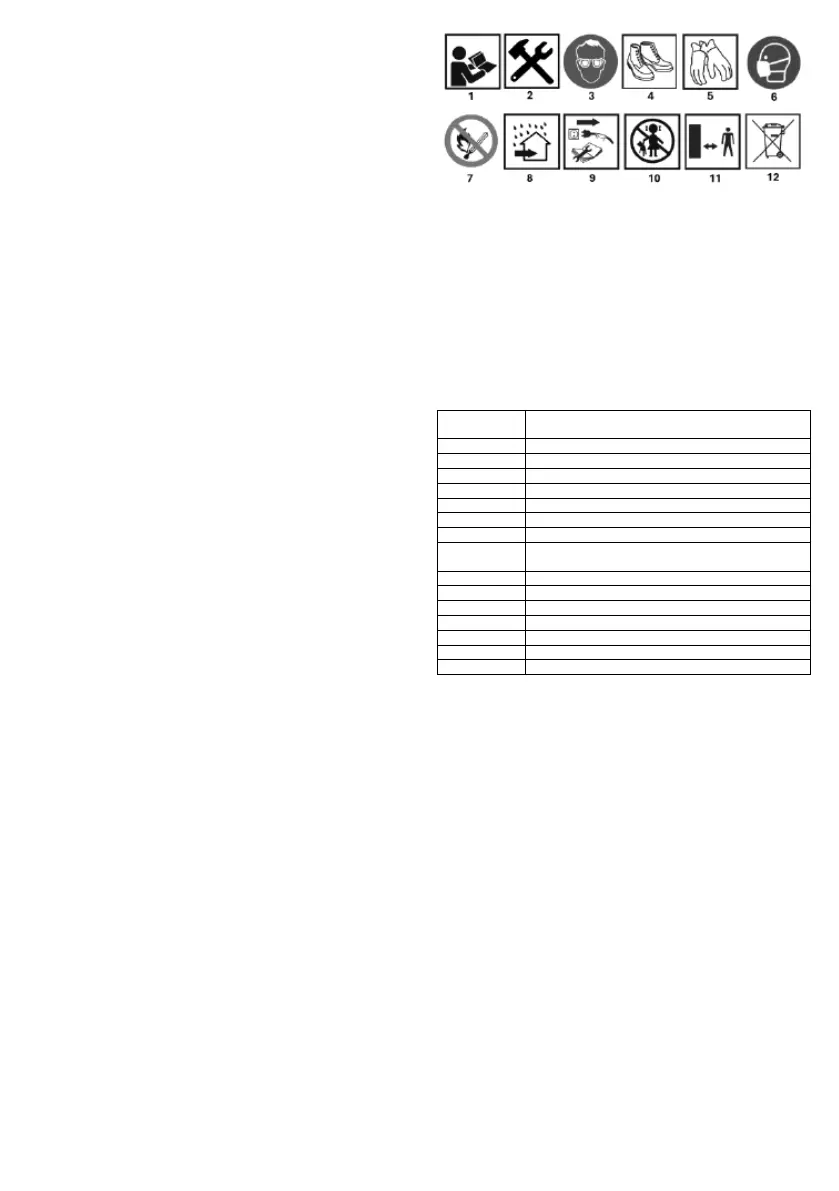

PICTOGRAMS AND WARNINGS
1.Read all instructions
2.Requires assembly
3.Wear personal protective equipment safety goggles
4.Wear personal protective equipment non-slip safety footwear
5.Wear personal protective equipment protective gloves
6. wear personal protective equipment protective mask
7.Do not use an open flame near the washer in operation
8.For indoor use
9.Before maintenance, disconnect from the power supply
10.Keep out of the reach of children
11.Keep your distance from the stand
12.Do not dispose of with household waste
DESCRIPTION OF THE GRAPHIC ELEMENTS
The numbering below refers to the components of the device
shown on the graphic pages of this manual.
Designation
Fig. A
Description
1
Washer lid
2
Telescopic cover bracket
3
Washer chamber
4
Washer legs
5
Shelf
6
Flexible outlet tube
7
Pump with filter
Designation
Fig. B
Description
1
Washer chamber
2
Container for small parts
3
Washer compartment shelf
4
Pump with filter
5
Flexible outlet tube
6
Pump switch
7
Stopper in the solution drain chamber
* There may be differences between the graphic and the actual
product
PREPARATION
The workshop washer is designed for degreasing and washing all kinds of
metal parts, with the dimensions and weight specified in the rating data.
ATTENTION! Exceeding the weight limit for parts can damage the
worktop and destroy the washer.
Areas of application: repair workshops, shops where degreasing and
washing of serviced parts is required. Use of the washer for other
purposes and unauthorised modifications is not permitted under penalty
of loss of guarantee.
OPERATION OF THE DEVICE
Before switching on the product, make sure that the mains voltage is the
same as that indicated on the rating plate. Connecting the appliance to a
different power supply may cause damage to the appliance.
MONTAGE
• When you take the washer out of the packaging, make sure all the
components of the unit are included.
• After closing the spring-loaded lid, place the unit upside down on a non-
marking surface (cardboard, carpet, etc.).
• Attach each of the 4 legs fig A4 using sets of 6mm bolts, lock washers
and nuts to the brackets on the washer chamber (supplied).
• Attach the tray to the holes located in the middle of the 4 legs fig. C1
using 2 sets of 6 mm bolts, lock washers and nuts fig. C2.
• Move the washer to an upright position on its feet and open the
chamber lid.
• Screw the fitting of the flexible metal tube fig. D1 of the fluid outlet to
the pump outlet fig. D2. Place the pump container lid on the open pump
container with the fluid inlet perforations and raised ribs down and over
the pump. Snap into place.
