7
• The manufacturer disclaims any responsibility for damage to
vehicles or components if such damage is the result of incompetent
operation by the operator or failure to observe the basic safety rules
set out in the operating instructions.
• This equipment is intended only for professional use by personnel
trained to perform the service functions for which it is designed.
• This equipment is designed to service a variety of engines in a safe
and convenient manner. However,
• differences in makes and models of motors may prevent the unit
from being used as intended. DO NOT attempt to force the use of
this unit in applications for which it was not designed.
• The procedures documented in this manual are intended to serve
as guidelines for the use of this equipment.
• In addition to these tips, the manufacturer's recommended
procedures should always be followed when servicing any vehicle.
• The use of this device is simple and straightforward provided the
instructions are followed. Use common sense when using this
appliance and only use this appliance.
• Use the device for its intended purpose

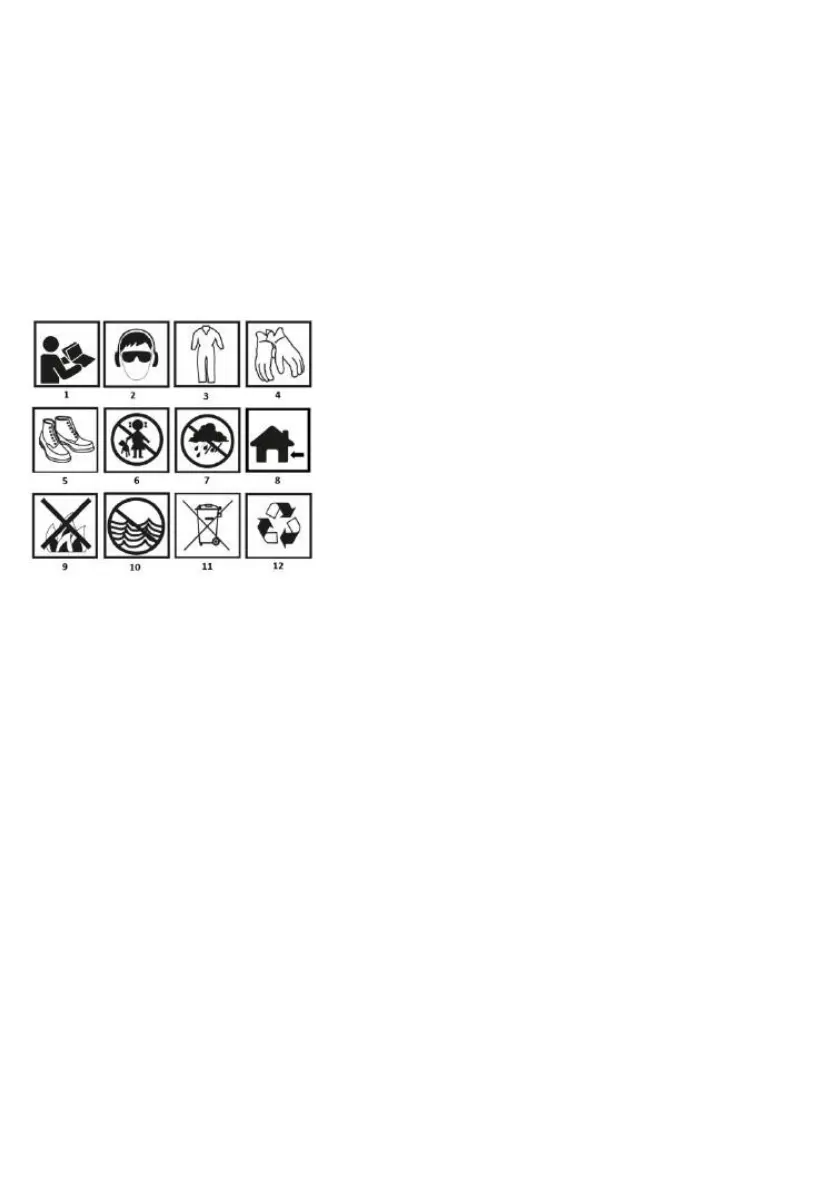

Pictograms and warnings
1.Read the operating instructions carefully
2,.Wear safety goggles and a protective mask
3.Wear protective clothing
4.Wear protective gloves
5.Wear oil-resistant and slip-resistant safety footwear
6.Keep out of the reach of children
7.Protect from moisture
8.For indoor use
9.Do not throw into fire
10.Do not throw into water
11.Do not dispose of with household waste
12.Subject to separate waste collection
PRODUCT DESCRIPTION
The 70-litre capacity mobile gravity oil skimmer is designed to
effectively drain used oil from the vehicle. The unit has a pressurised
self-draining function that uses compressed air to drain the used oil
from the tank.
SPECIFIC SAFETY INSTRUCTIONS AND WARNINGS
WARNING: DO NOT exceed the maximum tank pressure listed in the
product specification. Failure to do so may lead to product failure and may
result in personal injury and/or property damage.
WARNING: DO NOT make any adjustments to the oil drain when it is
connected to the ventilation system or when the product is in use
is in use. Non-compliance can lead to oil leaks and property damage.
WARNING: DO NOT use this product to pump water/petrol or other
liquids for which this product is not intended.
WARNING: Always allow the engine to cool down before draining the oil.
Hot oil can cause severe burns.
• It is not intended for use with petrol.
• DO NOT exceed the rated capacity of the tank. Overloading may
cause damage or failure of the oil drain.
• Keep your hands away from any adjustment points during assembly,
use and transport.
• Only use the oil drain on dry, oil/fat free, even, sanded surfaces.
Ensure that the surface is able to support the weight of the drain at
maximum capacity.
• Wear protective clothing, gloves and goggles when handling used
fluids.
• DO NOT leave the oil drain unattended while working or removing
oil.
• Never use or store near an open flame or heat source.
• DO NOT leave under the car jack when lowering the vehicle to the
ground surface.
MONTAGE
• Remove the entire contents of the pack.
• Fit the castors (9, 12). Insert the caster bolt through the designated
holes on the front of the unit. Put a washer on the bolt, then a lock
washer and a lock nut. Tighten the retaining nut with a 19 mm
spanner.
• Unscrew the clamping knob (10)
• Push up the extension (3) and tighten with the clamping knob (10)
• Fully open the valve lever (2) on the fitting attached to the top of the
fluid reservoir (1). Screw the adjustable extension into the threaded
part of the fitting (4).
NOTE: When the valve lever is fully open, the extension will enter the
tank.
• Push the sink bowl (1) onto the top of the extension (3).
ACTION
WARNING: Always read the product warnings, safety instructions and
installation instructions before use.
• Adjust the height of the sink bowl (1) to the lowest setting by
unscrewing the adjustment knob (10) on the extension (3).
• Slide the beaker under the raised vehicle, making sure that the
beaker bowl (1) is directly under the engine oil drain plug.
• Grasping the top of the extension (3), raise the sink pan (1) until it is
approximately 10 cm (4") below the oil drain plug. Supporting the top
of the extension (3), tighten the adjustment knob (10) as far as it will
go.
• Ensure that the valve lever (2) on the connector is fully open.
• Ensure that the valve on the discharge hose is fully closed.
• Unscrew the engine oil drain plug and allow the used oil to drain
completely into the sump pan (1).
• Once the oil is completely drained, lower the sump (1) and remove
it from under the vehicle.
NOTE: The beaker should be rolled carefully when full. The centre of
gravity may shift, causing the beaker to tilt.
NOTE: Check the emptying capacity using the emptying level indicator on
the side of the tank.
INSTRUCTIONS FOR EMPTYING THE TANK
• Carefully move the beaker to the oil collection tank and place the
drain hose in the tank.
• NOTE: Make sure there are no blockages or kinks in the hose.
• Raise the extension (3) to the highest setting so that the extension
is fully extended from inside the tank. Supporting the top of the
extension (3), tighten the adjustment knob (10).
• Close the valve lever (2) on the connector (horizontal position).
NOTE: The valve lever on the connector must be fully closed to allow
draining.
• Open the drain hose valve.
• Connect the compressed air to the drain pressure assembly on the
tank (7). Refer to the product specification for the size and type of
inlet.
• Open the valve on the drain pressure assembly (7).
WARNING: DO NOT exceed the maximum tank pressure listed in the
product specification. Failure to do so may result in product failure and
may cause personal injury and/or property damage.
• The oil drains from the tank (11) through the drain hose (4) into the
oil collection tank.
• After draining all the oil from the oil sump, close the valve on the
drain pressure unit (4). Disconnect the air supply.
• Close the drain hose valve (13).
• Once completed, all regulations regarding oil disposal and recycling
procedures must be observed.
CONSERVATION
Periodically check the beaker. Make sure all parts move freely. Apply
lubrication if necessary.
STORAGE
