6
②DMX Terminator
ln DMX control mode, the DMX output of the last fixture should be connected with a DMX terminator
(Not included). This prevents interference caused by DMX signals in the transmitting process. The terminator is
connected with a 120Ω(OHM) resistor across Pin 2 and Pin 3. (As shown below)

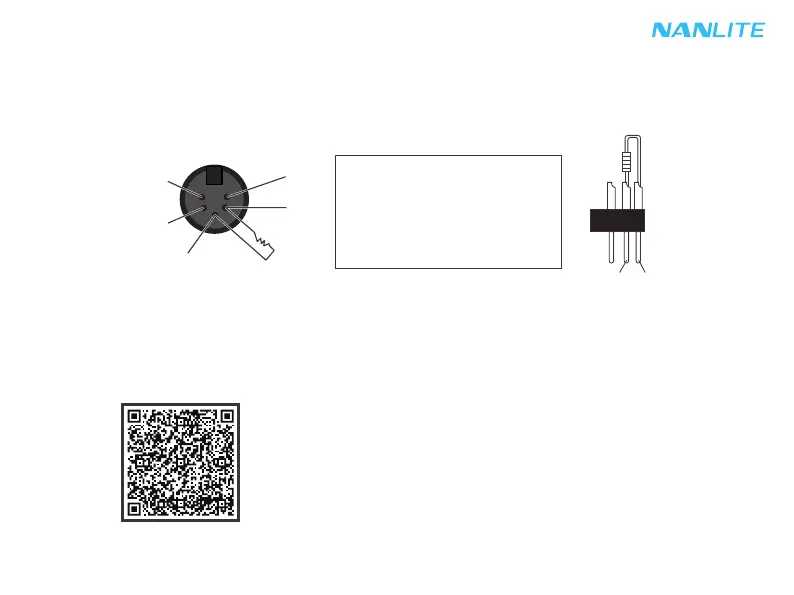

DMX Terminator Connection
Connect a 120Ω(OHM) resistor
across Pin 2 and Pin 3 in an XLR
plug and insert into the
DMX OUT socket on the last unit.
PIN 2PIN
120Ω
1
2
3
5
4
Please scan the QR code to check or download the latest DMX reference guide.
③Set the channel of the fixture.
④Refer to the DMX reference guide and control the light via DMX/RDM console.
(For detailed operation please refer to the DMX/RDM console operation manual.)
Note: DMX reference guide "PavoTube_T8-7X_DMX_REFERENCE_GUIDE_EN " is downloadable from
www.nanlite.com.
