Rev. 01.07.2024
h) Press the tyre towards the rim and simultaneously
press the pedal (3) to rotate the turntable clockwise.
Continue this operation until the entyre bead has
passed the edge of the rim. If the tyre requires an
inner tube, insert it.

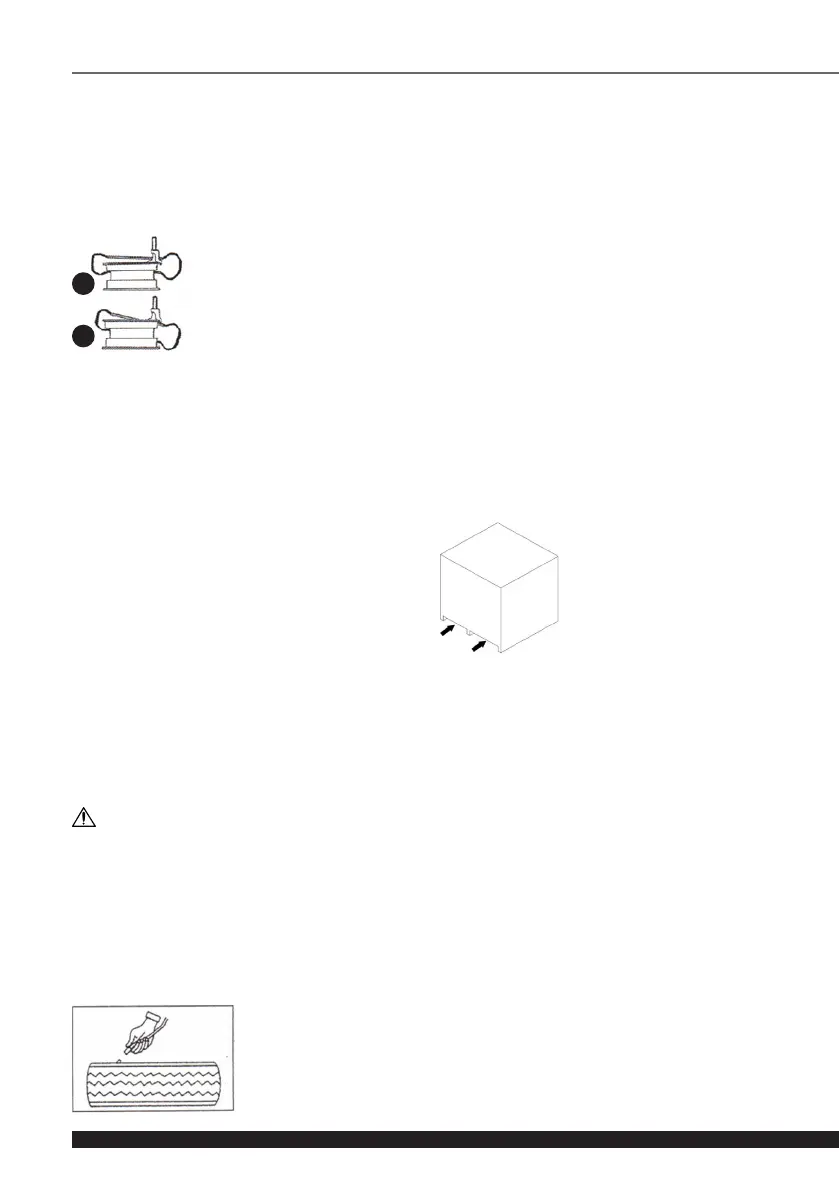

i) Position the tyre so that its upper bead passes
over the head (A) from the back of the mounting
head and under the head (B) from the front of the
mounting head.
j) Press the tyre towards the rim and simultaneously
press the pedal (3) to rotate the turntable clockwise.
Continue this operation until the entyre bead has
passed the rim edge. It is recommended to take
extra care to slow down the tyre-mounting process
when only 10-15 cm of unmounted tyre remain.
• (For the MSW-TC-1100HA model)
In order to facilitate the work, it is possible to use
a tyre bead presser and a pressure roller.
I. Position the pressure roller on the side of the tyre
approximately 10 cm to the right of the mounting
head.
II. Position the bead presser on the side of the tyre
approximately 10 cm to the right of the pressure
roller.
III. Lower the pressure roller and the bead presser so as
to put a small pressure on the tyre (when using the
bead presser, it is not recommended to touch the
tyre when the turntable is rotating).
IV. Rotate the turntable by pressing the pedal (3)
NOTE: Tyre mounting and demounting is always carried
out when the table is rotating in a clockwise direction. The
anti-clockwise movement is used only to correct operator
errors.
4) Inating the tyre
A
B
a) Connect the compressed air line to the wheel valve
(remove the valve stem rst).
b) Start pumping with the compressed air gun (press
the trigger all the way down).
c) After the bead is pushed out, remove the compressed
air hose, insert the stem into the tyre valve and
proceed to inate the tyre as required.
d) Connect the compressed air line to the valve in the
wheel and start pumping. Make frequent breaks to
check the pressure inside the tyre. The maximum
inating pressure must not exceed 3 bar for the
model MSW-TC-1100HA or 3.5 bar for the model
MSW-TC-750.
If the pressure inside the tyre is to reach a value close to
the maximum values for the given model of tyre changer, it
is recommended to remove the tyre from the machine and
pump it behind a suitable guard that will protect the user
and the persons around from possible explosion.
NOTE: When inating tyres keep your hands and other
parts of the body as far as possible from the machine.
3.4. TRANSPORTING THE MACHINE
The machine must be transported in its original packaging
and only in the position indicated on the packaging. The
packaged machine can be transported only with a forklift
having the permissible load at least equal to the weight of
the packaged machine. The fork should be placed as shown
below.
ATTENTION! Inating tyres is a dangerous operation!
Please follow the instructions given.
Pay special attention when inating tyres. The machine is
not designed to provide adequate protection to the user
or persons in the vicinity of the machine in case of tyre
explosion.
WARNING: A tyre explosion can cause serious injury,
even death. Before inating the tyre, make sure that the
diameter of the tyre and rim are the same, check the
technical condition of the tyre and check if the pressure
hoses are connected properly.
Moving the machine over short distances
• The machine can be moved over short distances only
with a forklift.
• Before moving the machine, disconnect it from the
power and compressed air supply.
a) Lift and slightly raise the machine on one side with
a suciently strong lever.
b) Slide the fork under the machine.
c) Lift and move the machine to a new location. The
transport and storage temperature should be in the
range of-20 to 55°C.
Scrapping
• It is recommended to break all power cords to make
them inoperable.
• Dispose of the non-metallic materials in accordance
with regulations.
• Drain the oil and dispose of it in accordance with
regulations.
• Deliver the rest of the machine to an authorized
metal waste collection point.
3.5. HAZARDS IN THE COURSE OF USING THE DEVICE
The hazards that can occur during use of the machine
are mechanical hazards. The mechanical hazard occurs
in situations in which injuries can result from mechanical
impact of various elements, e.g. machine parts, tools,
etc. on people. The basic mechanical hazards include
squeezing, crushing, cutting, pulling in or catching; impact;
puncture; abrasion; as well as slipping and stumbling.
18
EN
