11
support@m4sol.com | www.m4sol.com
MS-41Q USER GUIDE

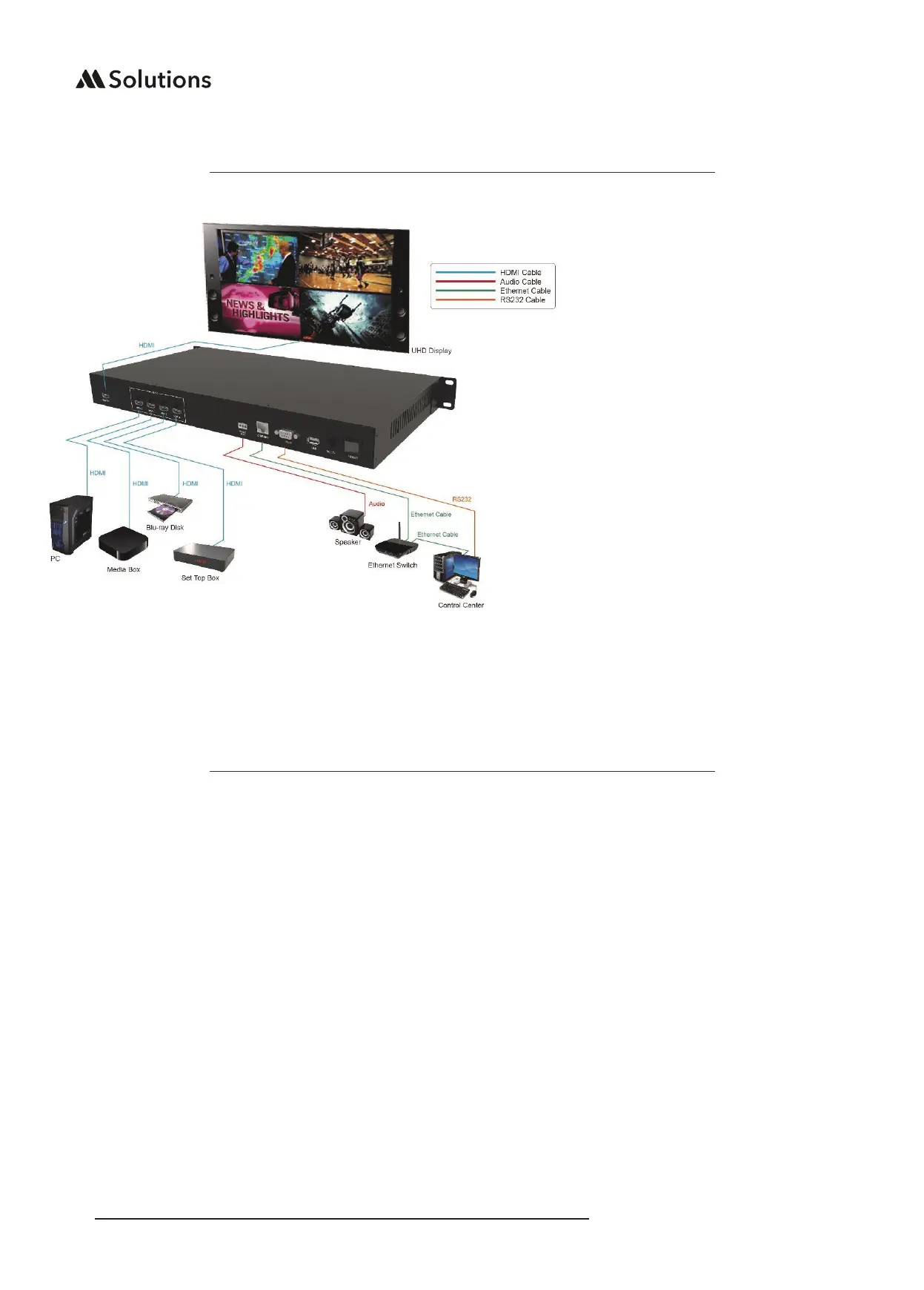

Installation – Wiring Diagram
Installation – Rack Mount
Take the following steps to attach the two brackets to the system chassis and install into rack:
a. Remove all cables and power supply before mounting the Quadview Video Processor in the rack
b. Place the system chassis on a sturdy surface
c. Attach bracket to the left side of the system chassis by using the screw driver and four screws
d. Attach the other bracket to the right side of the system chassis by using the screw driver and four
screws
e. Use tape measure and level to ensure that the supporting shelf and the chassis are installed
straight and level
f. Make sure that your path to the rack is unobstructed.
g. Slide the unit into the rack and position using the attached L brackets so that the slots in the
brackets are positioned over the appropriate mounting holes in the side rails of the rack
h. Securely fasten the unit into the rack by using the four screws which are supplied with the rack
mount kit, installing two of the screws on each side of the unit. Use a screw driver to tighten the
screws on each side of the unit.
Do the following steps for device
connections:
a. Connect an HDMI source to
the HDMI 1 input connector.
b. Connect an HDMI source to
the HDMI 2 input connector.
c. Connect an HDMI source to
the HDMI 3 input connector.
d. Connect an HDMI source to
the HDMI 4 input connector.
e. Connect the HDMI output
connector to a HDMI display
device
f. Connect the audio output
connector to the audio
amplifier, as required.
g. Connect the 12V/2A adapter
to 12V DC connector.
