10
support@m4sol.com | www.m4sol.com
MS-41Q USER GUIDE
9
No.
Feature
Description
1
Standby
Press to set system into standby mode or wake
up the system
2
Lock
Press to Lock or unlock the front panel buttons
3
Input
H-1
Select HDMI 1 in full screen mode
Select HDMI 1 audio in quadview mode
H-2
Select HDMI 2 in full screen mode
Select HDMI 2 audio in quadview mode.
H-3
Select HDMI 3 in full screen mode
Select HDMI 3 audio in quadview mode
H-4
Select HDMI 4 in full screen mode
Select HDMI 4 audio in quadview mode
DP
Reserved
VGA
Reserved
4
Layout*
Select Layout A (full screen mode)
Select Layout B
Select Layout C
Select Layout D
Select Layout E
Select Layout F
5
Reserved
6 Info.
System information
*INFO OSD won’t be shown if NO VIDEO INPUT window
message displays.
7
OK
Reserved
Up
Reserved
Down
Reserved
Left
Reserved
Right
Reserved
9
No. Feature Description
1
Standby
Press to set system into standby mode or wake
up the system
2
Lock
Press to Lock or unlock the front panel buttons
3
Input
H-1
Select HDMI 1 in full screen mode
Select HDMI 1 audio in quadview mode
H-2
Select HDMI 2 in full screen mode
Select HDMI 2 audio in quadview mode.
H-3
Select HDMI 3 in full screen mode
Select HDMI 3 audio in quadview mode
H-4
Select HDMI 4 in full screen mode
Select HDMI 4 audio in quadview mode
DP
Reserved
VGA
Reserved
4
Layout*
Select Layout A (full screen mode)
Select Layout B
Select Layout C
Select Layout D
Select Layout E
Select Layout F
5
Reserved
6
Info.
System information
*INFO OSD won’t be shown if NO VIDEO INPUT window
message displays.
7
OK
Reserved
Up
Reserved
Down
Reserved
Left
Reserved
Right
Reserved

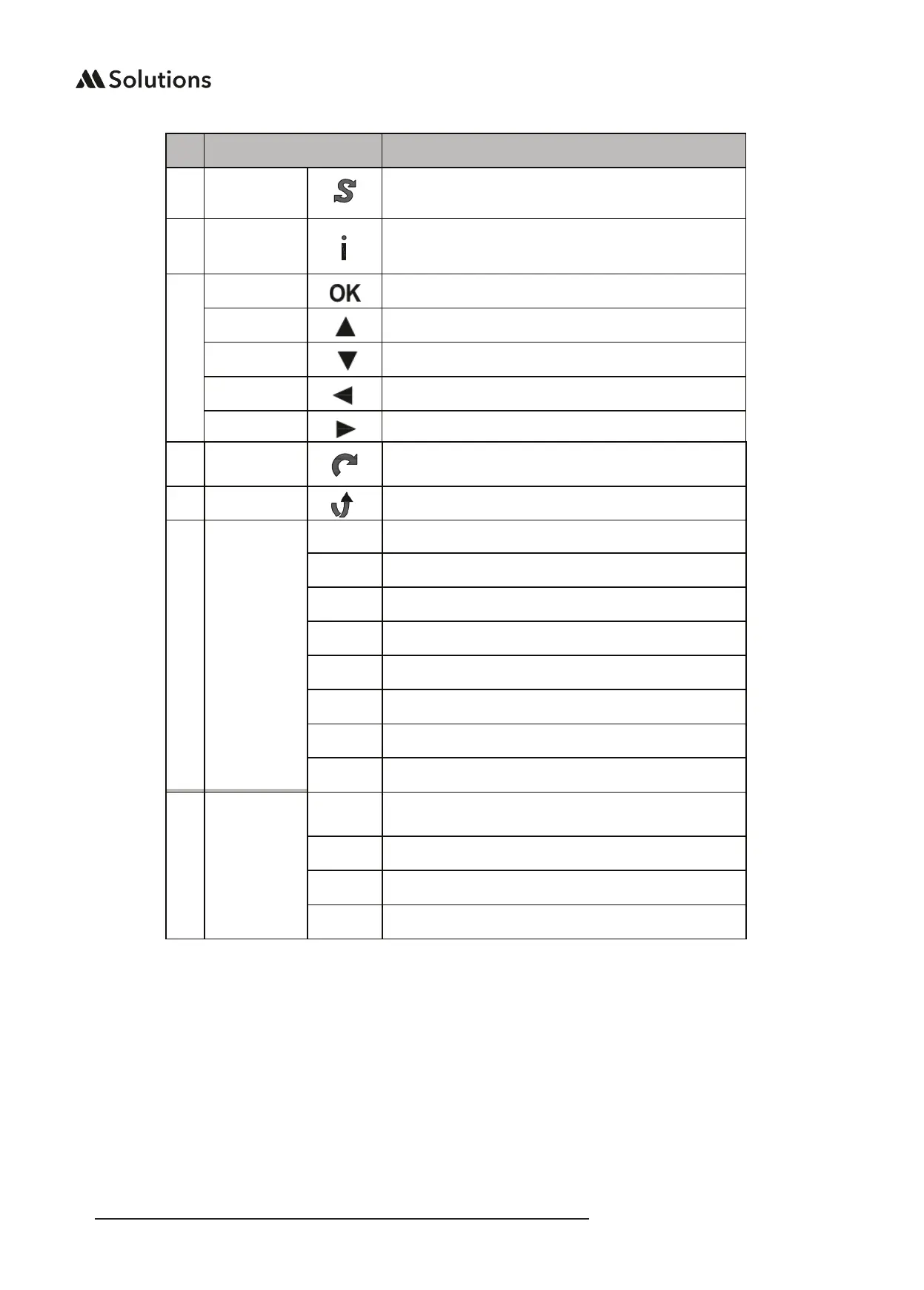

10
* Please see Appendix 1
8 Rotate*
Rotate the video display R90
o
/ L90
o
in full
screen mode
9 Flip*
Flip display screen in full screen mode
No.
Feature
Description
10
Custom
Layout*
1
Select custom screen layout 1
2
Select custom screen layout 2
3
Select custom screen layout 3
4
Select custom screen layout 4
5
Select custom screen layout 5
6
Select custom screen layout 6
7
Select custom screen layout 7
8
Select custom screen layout 8
11
Set
Red
Set output resolution to 3840x2160@60Hz(with
Auto Detect)
Green
Set output resolution to 3840x2160@30Hz
Yellow
Set output resolution to 1920x1080@60Hz
Blue
Set output resolution to 1280x720@60Hz
10
* Please see Appendix 1
8
Rotate*
Rotate the video display R90
o
/ L90
o
in full
screen mode
9
Flip*
Flip display screen in full screen mode
No.
Feature
Description
10
Custom
Layout*
1 Select custom screen layout 1
2 Select custom screen layout 2
3 Select custom screen layout 3
4 Select custom screen layout 4
5 Select custom screen layout 5
6 Select custom screen layout 6
7 Select custom screen layout 7
8 Select custom screen layout 8
11 Set
Red
Set output resolution to 3840x2160@60Hz(with
Auto Detect)
Green Set output resolution to 3840x2160@30Hz
Yellow Set output resolution to 1920x1080@60Hz
Blue Set output resolution to 1280x720@60Hz
