元件總覽 元件總覽

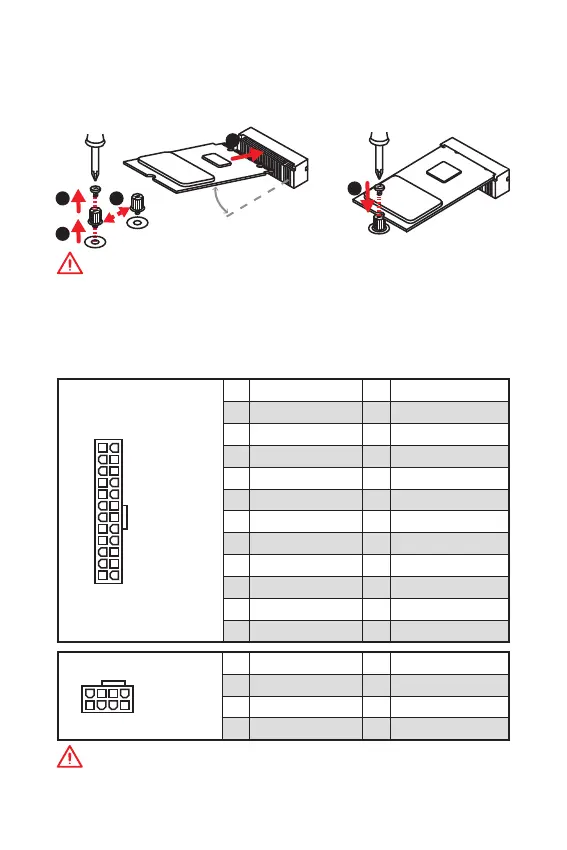

ATX_PWR1, CPU_PWR1: 電源接頭

些接頭能讓您連接 ATX 電源供應器。

24

131

12

ATX_PWR1

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 Ground 15 Ground

4 +5V 16 PS-ON#

5 Ground 17 Ground

6 +5V 18 Ground

7 Ground 19 Ground

8 PWR OK 20 Res

9 5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 Ground

5

4

1

8

CPU_PWR1

1 Ground 5 +12V

2 Ground 6 +12V

3 Ground 7 +12V

4 Ground 8 +12V

重要

請確認所有電源排線，皆已穩固連接到適當的 ATX 電源供應器，確保主機板穩定操作。

1

2

3

4

5

重要

y

Intel

®

RST 僅支援 PCIe M.2 SSD 搭配 UEFI ROM。

y

Intel

®

Optane™ Memory Ready。

30°

M2_1: M.2 插槽 (M 鍵) (B365M PRO-VD, B365M PRO-VH,

B365M PLUS)

請按照下圖所示將 M.2 SSD 安裝到 M.2 插槽中。
