10

元件總覽

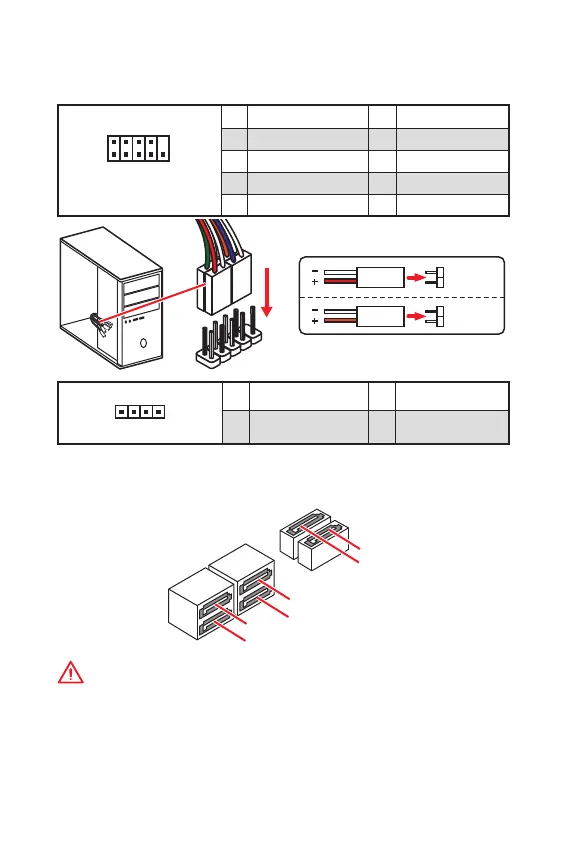

SATA1~6: SATA 6Gb/s 插孔

這些插孔是 SATA 6Gb/s 介面連接埠。每個插孔皆可連接一個 SATA 裝 置。

SATA3

SATA5

SATA4

SATA1

SATA2

SATA6

重要

y

當 M.2 插槽裝有 SATA M.2 SSD 模組時，SATA1 連接埠將不可用。

y

SATA 排線不可摺疊超過 90 度，以免傳輸資料時產生錯誤。

y

SATA 排線兩端接頭外觀相似，建議將平頭端接到主機板，以節省空間。

JFP1, JFP2: 系統面板接頭

這些接頭用於連接前面板的開關和 LED 指示燈�

1

2 10

9

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

1

JFP2

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

HDD LED

RESET SW

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

JFP1
