22
Merge
With Merge activated, trails (repeats and echoes) of the delays and reverb will blend into each other
when the effect type or a preset is changed.
x
Press the Menu knob to switch Merge on/off.

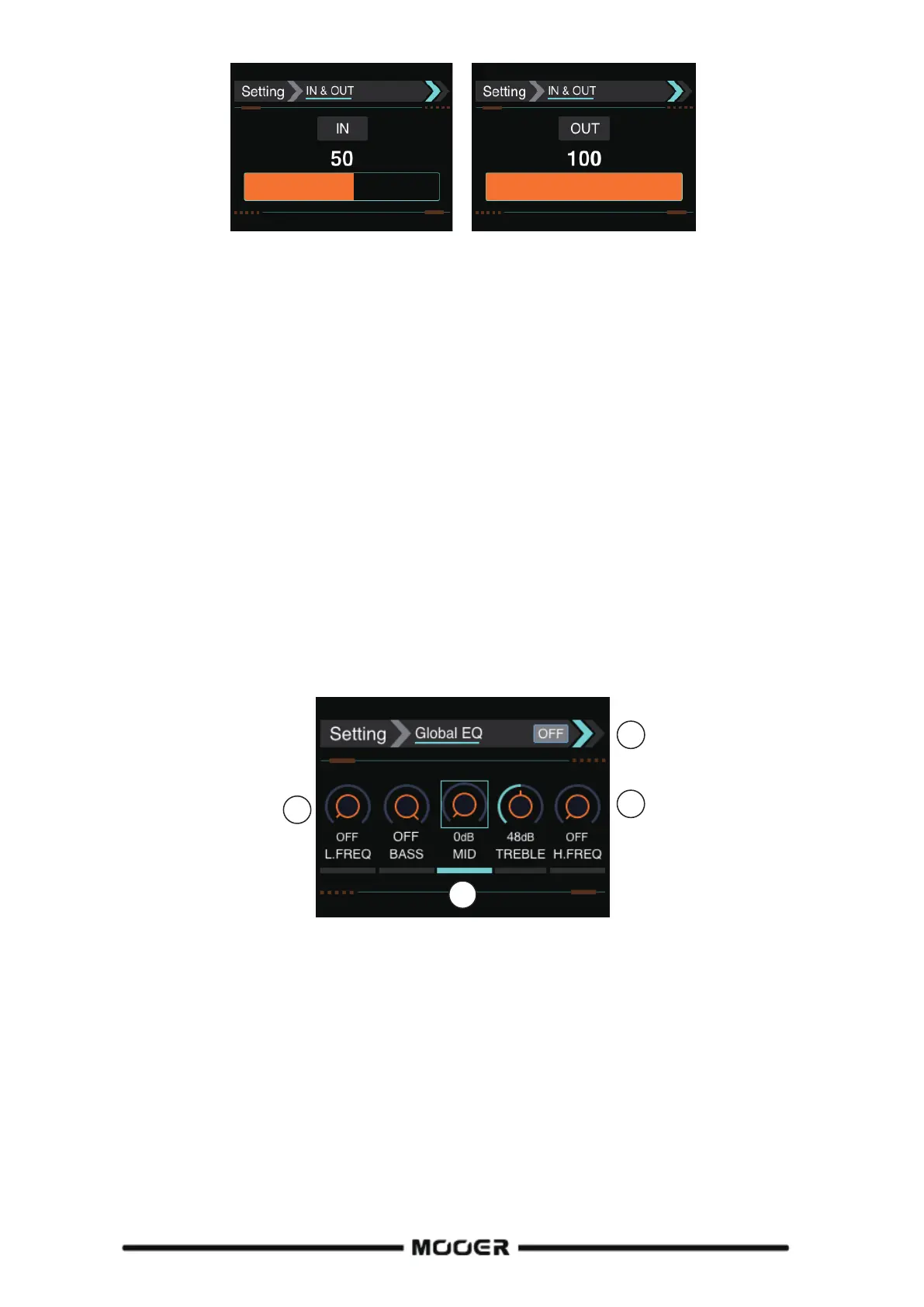

Global EQ
The Ocean Machine II is equipped with a Global EQ section which will affect both your dry guitar
signal and the sound of the effects. This can be switched on or off. The Global EQ can be used for
quick adjustments to accommodate the sound conditions at the venue. Global EQ settings are
independent of presets and affect all presets.
x Rotate the Menu knob to select the On/OFF field or the parameter you wish to change
(blue frame).
x Press the Menu knob to adjust the selected parameter (red frame).
x Rotate the Menu knob to change value.
x Press the Menu knob again to finish adjustments (blue frame).
1. ON/OFF: Switches the Global EQ on or off
2. L.FREQ: Adjustable low frequency cut.
The following options are available: OFF, 27 Hz, 47 Hz, 82 Hz, 150 Hz and 270 Hz.
The default setting for the LOW frequency cut is OFF.
3. EQ: Cut or boost BASS, MID or TREBLE frequencies up to +/- 12dB
;ϭϮKĐůŽĐŬŝƐϬĚƐƚŽƌĐƵƚͿ
4. H.FREQ: Adjustable high frequency cut.
The following options are available: OFF, 18 kHz, 12 kHz, 8.2 kHz, 5.6 kHz and 3.9 kHz.
The default setting for the HIGH frequency cut is OFF.
3
1
2
4
