Step5: Install the protective cover
After electrical connections are complete and cable connections are correct
and reliable, install the external protective cover.
• Assemble the base protective cover and battery protective cover together.
• Install protective covers on both sides of the energy storage module and
the battery module.
• Tap the corners of the protective cover to ensure it is in place before locking
the screws.

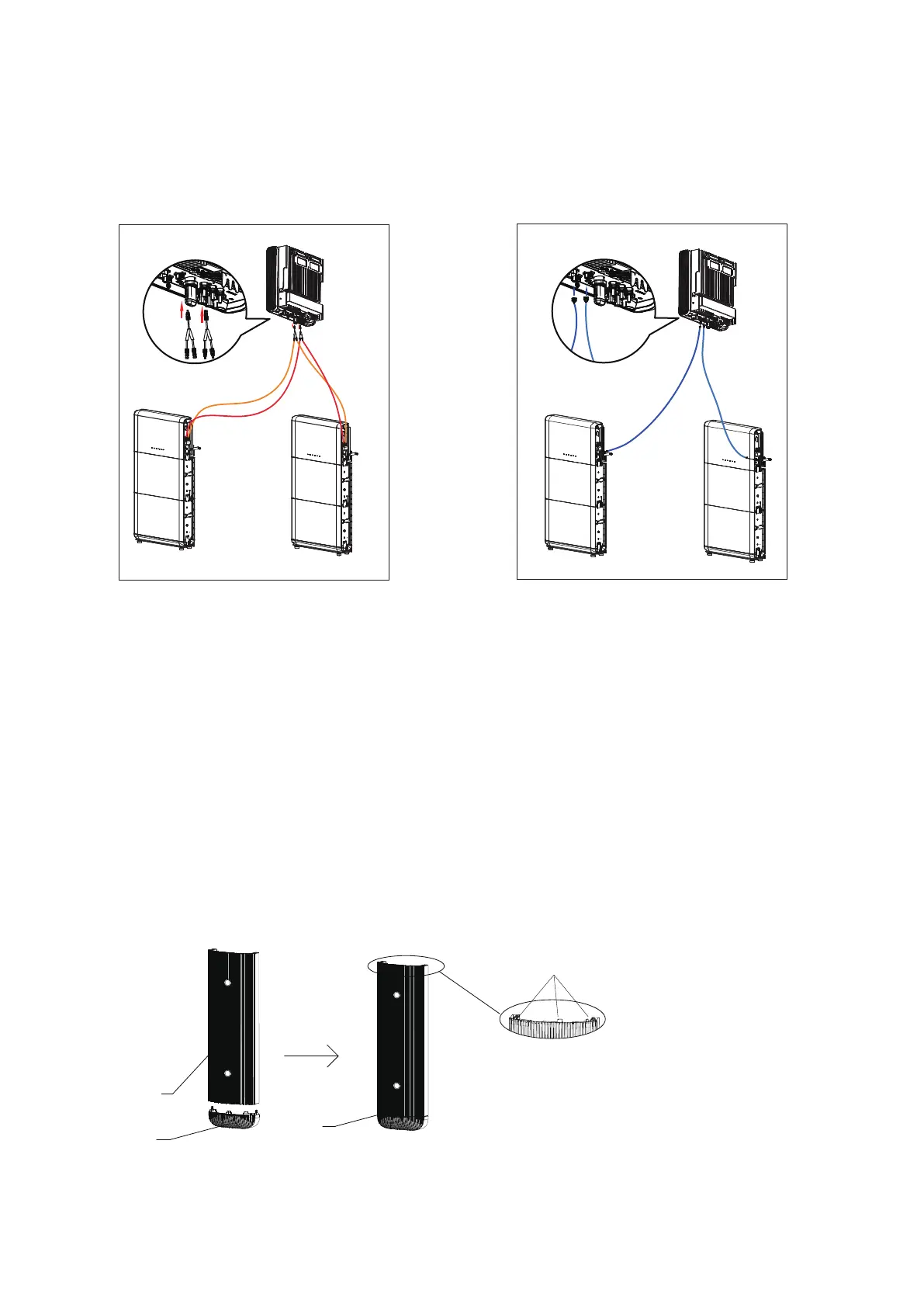

Connecting Cascading DC
Input Power Cables (Cascading)
Use Y connectors to connect the DC
input terminals (BAT+ and BAT–)
between the power control module and
the inverter.
Prepare a signal cable terminal for
connecting the power control module.
Connecting a Signal Cable
1.Battery protective cover
2.Base protective cover
3.Protective cover assembly
1
2
3
The edge with 3 protruding points faces up.
