middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
5
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]
SNE Series

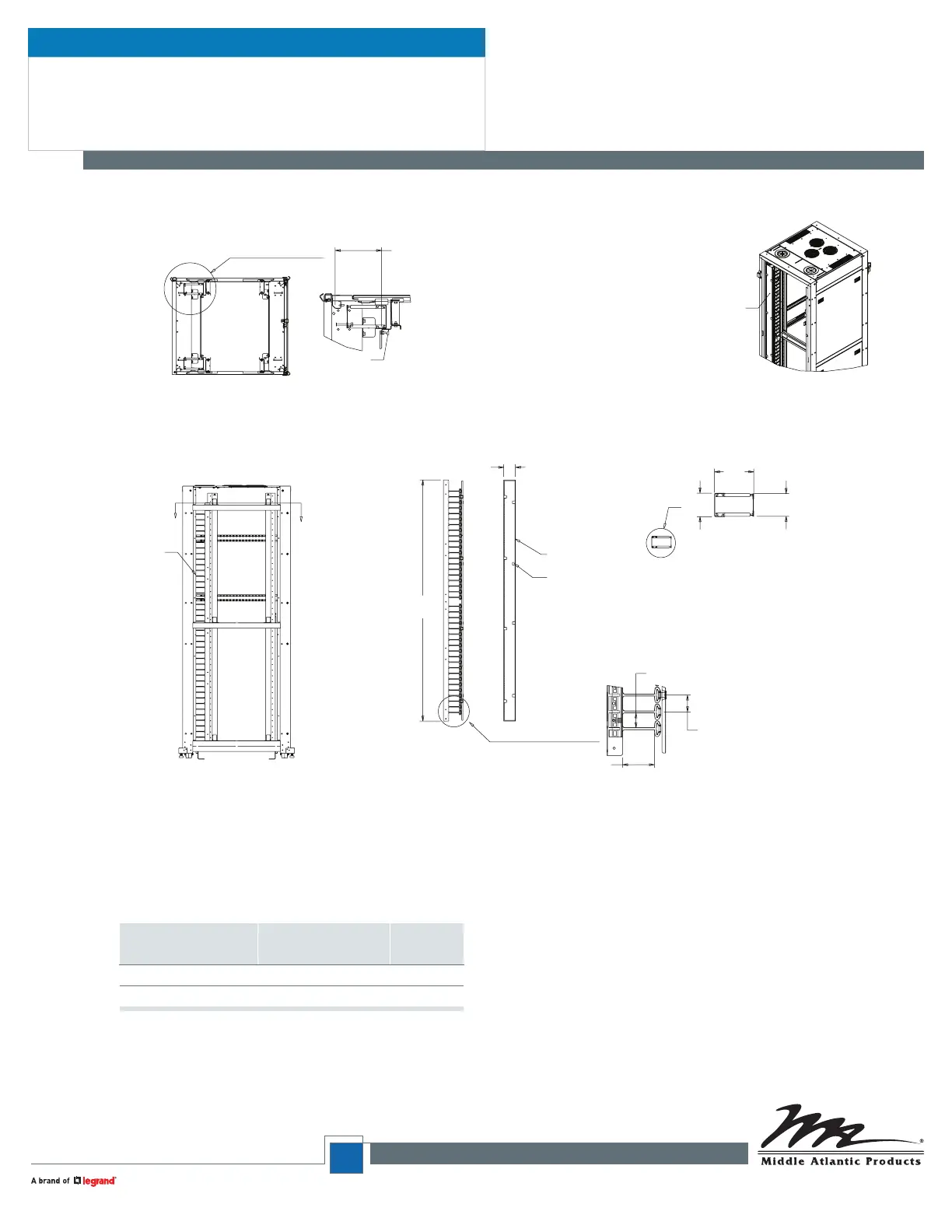

cable duct basic dimensions
top view
A
A
6.17
[157]
overall
height
3.57
[91]
1.55 [39] typ
3.31 [84] typ
1.75 [44] typ
7. 25 [184] position of
rackrail mounting surface
to accomodate cable duct
3.69
[94]
3.69 [94] ref
front/rear doors removed
see dimensional
view of cable duct
side view
(side panels removed)
cable
organizer
see table
cable organizer duct
rack rail
removable
cover
8x cover
clip/hinge
Cable Duct
Part Number Overall Height Rackspaces
SNE-42DUCT-4X6 70.50 [1791] 42 space
SNE-45DUCT-4X6 75.75 [1924] 45 space
Notes:
1. cable duct can be installed at each inside corner of the rack.
3. cable ducts are only available for 30” wide racks
