middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
6
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]

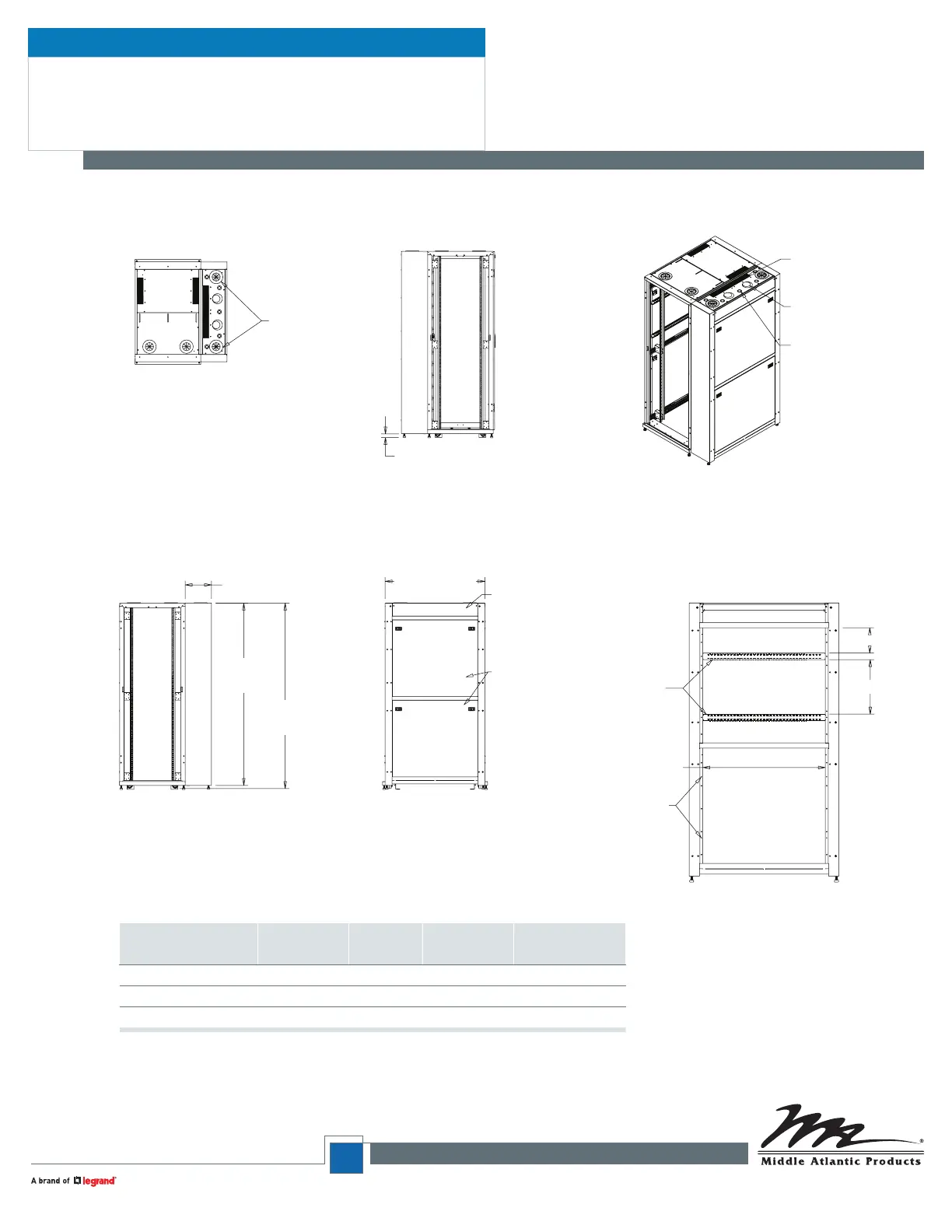

SNE Series
cable chase basic dimensions
Cable Chase
Part Number
Cable Chase
Depth
1” & 1-1/2”
LKO (Qty)
4” & 5”
LKO (Qty)
Fits SNE
Racks
SNE-CCE12-4536 36.00 [914] 4 1 SNEXX-4536-XX
SNE-CCE12-4542 42.00 [1067] 4 1 SNEXX-4542-XX
SNE-CCE12-4548 48.00 [1219] 5 2 SNEXX-4548-XX
Notes:
1. cable chase shown mounted on a SNE rack enclosure
2. cable chase can be mounted on left or right side of rack
top view
84.76 [2153]
cable chase
overall height
12.00 [305]
cable chase width
16.59 [421
]
7.73 [196]
leverlock mount access
25.35 [644] (36" depth)
31.35 [796] (42" depth)
37.34 [948] (48" depth)
83.33 [2117]
cable chase
frame height
cable chase depth
leveler adjustment
.98 [25] min 1.68 [43] max
cable brush
openings in all
top options
3" & 4" electrical
laser knock-outs
see table
1" & 1-1/2" electrical
laser knock-outs
see table
front view right side
accepts
locking
side panels
removable
side covers
2x 4"
gland
grommet
rear view
leverlock
brackets
additional
leverlock bracket
mount locations
(allocated on
both sides)
cable chase side view
(without side panels)
