middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
4

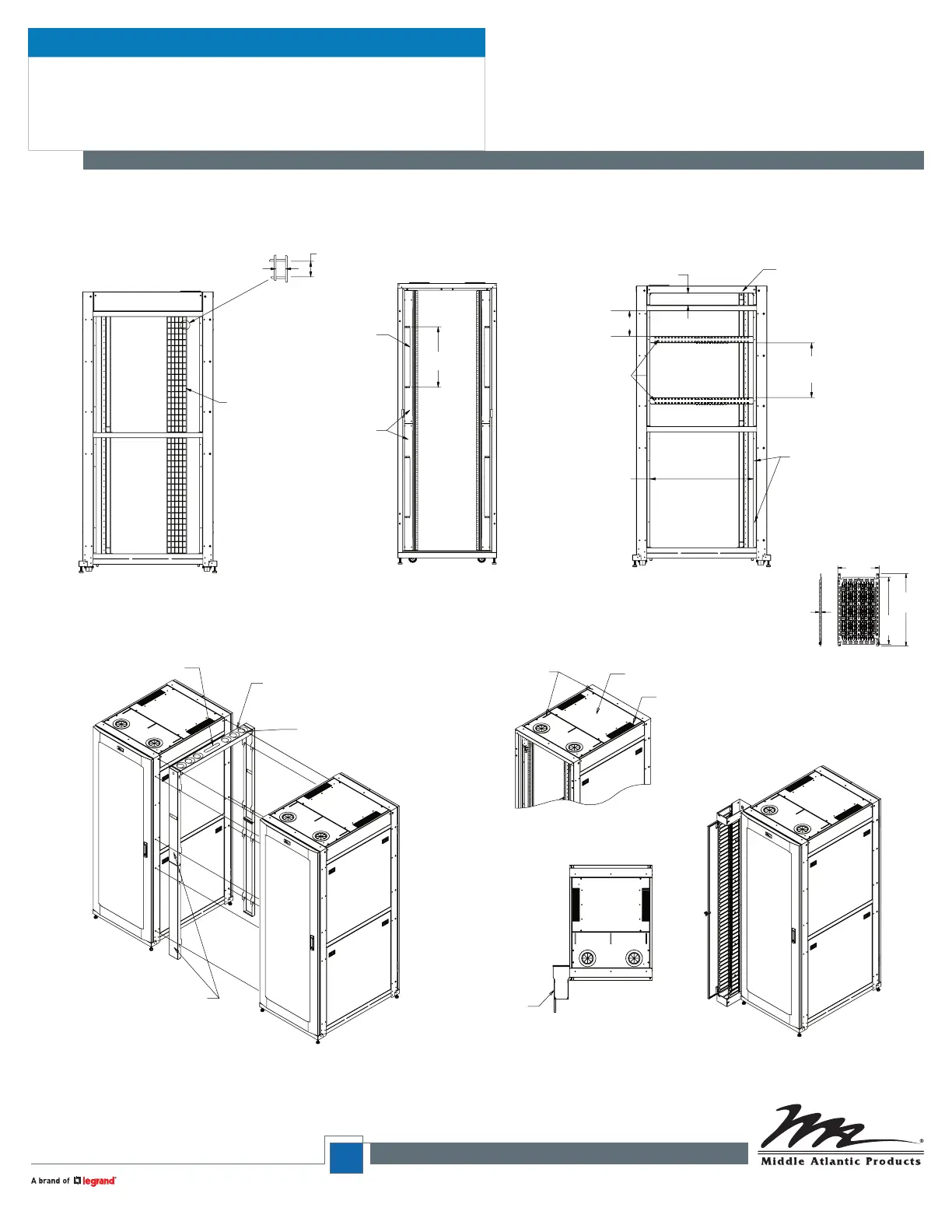

all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]
SNE Series Hybrid
basic dimensions
cable ladder
mounting available
SNE30H-4542-A2 shown
(front/rear doors removed)
solid top shown
2x 12.00 x 3.00 cable
opening in all top options
4.50 [114] wide cable chase:
SNE-CC-42FB (42SP)
SNE-CC-45FB (45SP)
top cable chase:
SNE-CC-36LT (36" depth)
SNE-CC-42LT (42" depth)
SNE-CC-48LT (48" depth)
4X 3[76] X 2[51] EKO (36" depth)
6X 3[76] X 2[51] EKO (42" depth)
6X 3[76] X 2[51] EKO (48" depth)
Ø1.3 [33] X 7.5 [191] IKO
vertical cable duct
available for 45SP only
VCD-6-45-SC (6" wide)
VCD-10-45-SC (10" wide)
16.59 [421]
mounts 21” vertical
Lever Lock™
Lever Lock™ mount access
25.35 [644] (36" depth)
31.35 [796] (42" depth)
37.35 [949] (48" depth)
7.73 [196]
3.67 [93]
15.86
[403]
9.85
[250]
2x .50
[13]
17.11
[435]
1.56 [40]
.97 [25]
19.00 [483]
ref
front air dams
available for
27.6" and 30"
wide racks
front air dams
include knockouts
for 1 rackspace
19.00 vertical rackmount
(cage nut)
front view
Lever Lock™
brackets
top cover brackets
allow horizontal
cable pass-through:
SNE-TCB-36 (36" depth)
SNE-TCB-42 (42" depth)
SNE-TCB-48 (48" depth)
additional Lever Lock™
bracket mount locations
side view
(wire lace removed)
Lever Lock™ detail
LL-VP2110 shown
(2 qty included)
6" wide wire lace
attaches to
channel supports
side view
(Lever Lock™ brackets removed)
