INSTALLING SIDE PANELS

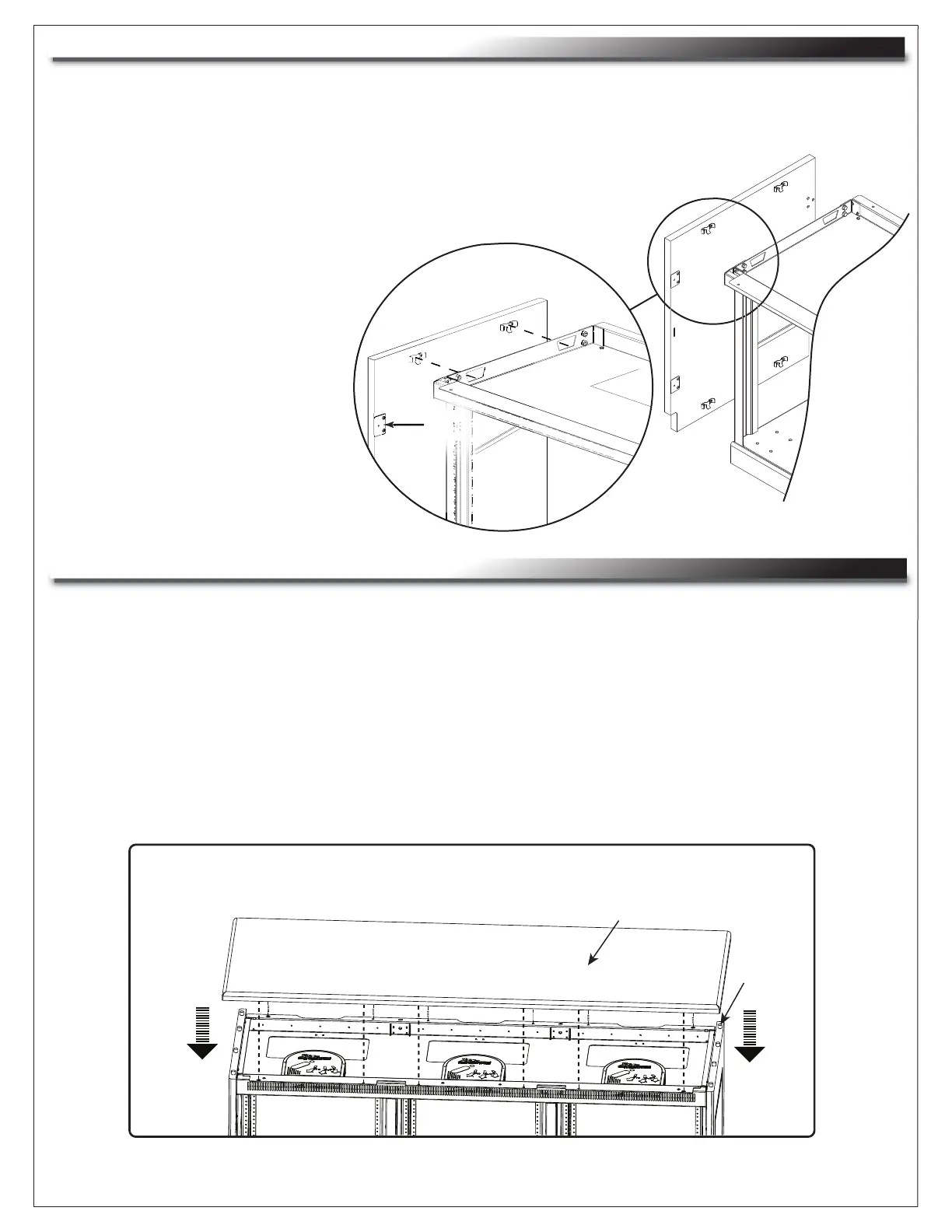

FIGURE G
Door
Hinge
Plate
INSTALLING TOP SURFACE
FOR C5-FF27-X and C5-FF31-X MODELS ONLY: If installing a C5MM monitor mount kit, install
stabilizing feet and monitor mount support brackets prior to attaching wood-side panels and doors to
frame. For more information, refer to the C5 Large Format Display Mount System Instruction Sheet
(I-00749) at www.legrandav.com. (FIGURE G)
NOTE: If installing a Flip-Up Side
Shelf, install prior to installing the side
panels. For more information, refer to
the Flip-Up Side Shelf Instruction
Sheet (I-00689) at www.legran-
dav.com
• Install side panels by placing the
(4x) pre-installed hooks into (4x)
slots located on each side of
the credenza frame.
FOR C5-FF27-X AND C5-FF31-X MODELS ONLY: For accessories related to the top surface, refer
to the “Introduction” on page 7, before proceeding with the following installation.
NOTE: To help protect the wood finish from scratching, do not place any components or tools on
unprotected wood surface during assembly. For wood kit care and cleaning, refer to I-00788.
1. Align the top using wooden dowels (where applicable) in the side panels as a guide.
2. Attach top surface to the frame using #10 x ⅝” wood screws (D), extra screws provided if needed.
(FIGURE H)
Page 10
FIGURE H
Top
Surface
Wooden
Dowels
NOTE: Extra
screws provided,
if needed.
