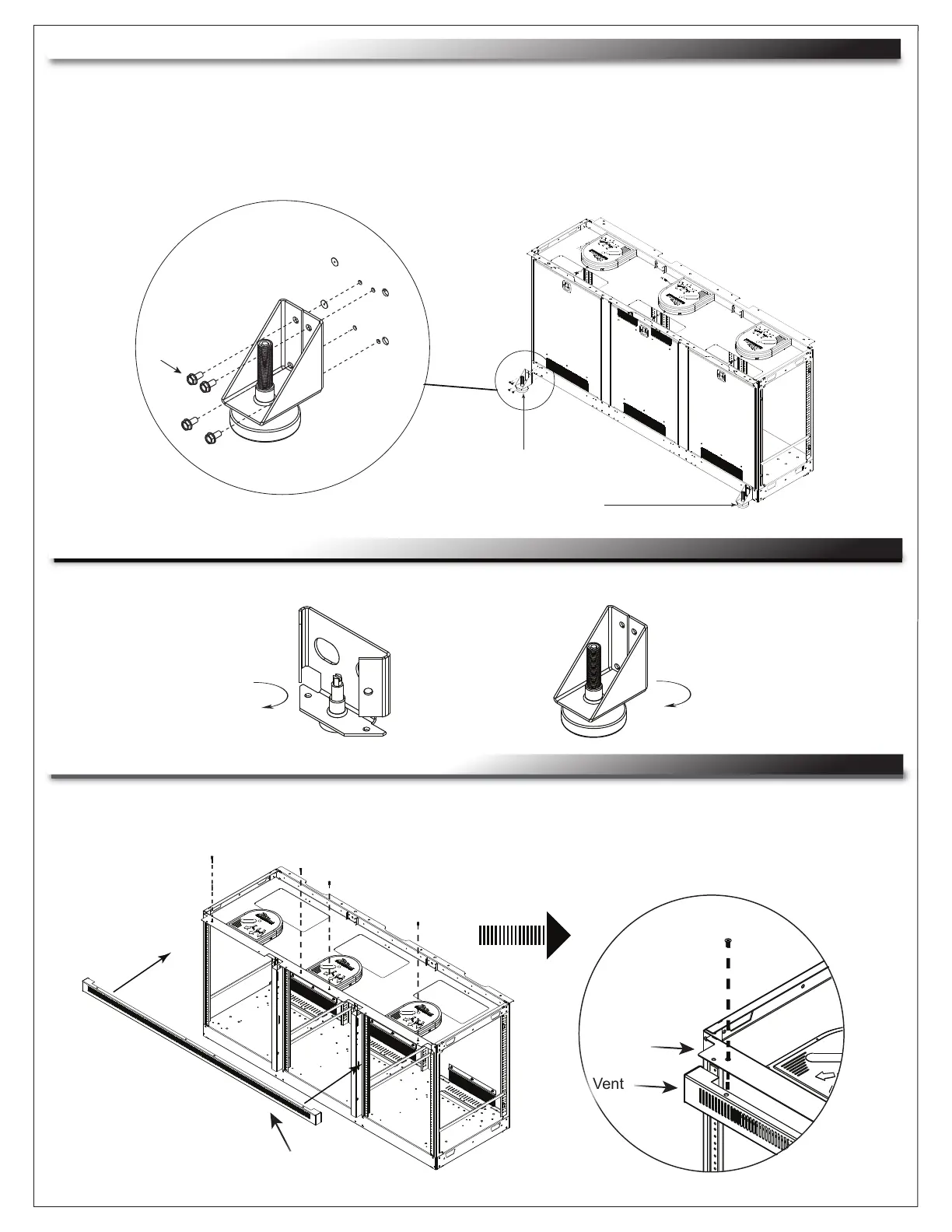

INSTALLING VENT
INSTALLING REAR ANTI-TIP FEET (C5-FF22-X MODELS ONLY)
LOWERING FRONT AND REAR ANTI-TIP FEET
Page 9
FIGURE D
FIGURE E
Rear Anti-Tip
Foot
Front Anti-Tip
Foot
FOR 1-BAY MODELS: Rear anti-tip feet are pre-installed.
FOR 2- AND 3-BAY MODELS: Install rear anti-tip feet before assembling your credenza.
• Unscrew front and rear anti-tip feet (H) from brackets, as shown. (FIGURE E)
1. Place vent underneath the flange. (FIGURE F)
2. Use a #2 Phillips and 10-32 x ½” machine screws (K) to attach the vent into the top of the frame.
H
FIGURE F
NOTE: The 3-bay
model is shown.
Vent
Vent
Flange
NOTE: Only attach rear anti-tip
feet to bottom, outside, corner
locations on 2- and 3-bay
models (3-bay shown).
• Use a 5/16” deep socket and (8x) 10-32 x ⅜” thread forming screws (H) to install both rear anti-tip
feet to
the outside locations of your credenza as shown. (FIGURE D)
