AC Switching Characteriscs
Data Sheet
© 2024 Microchip Technology Inc. and its subsidiaries
DS00003831E - 47

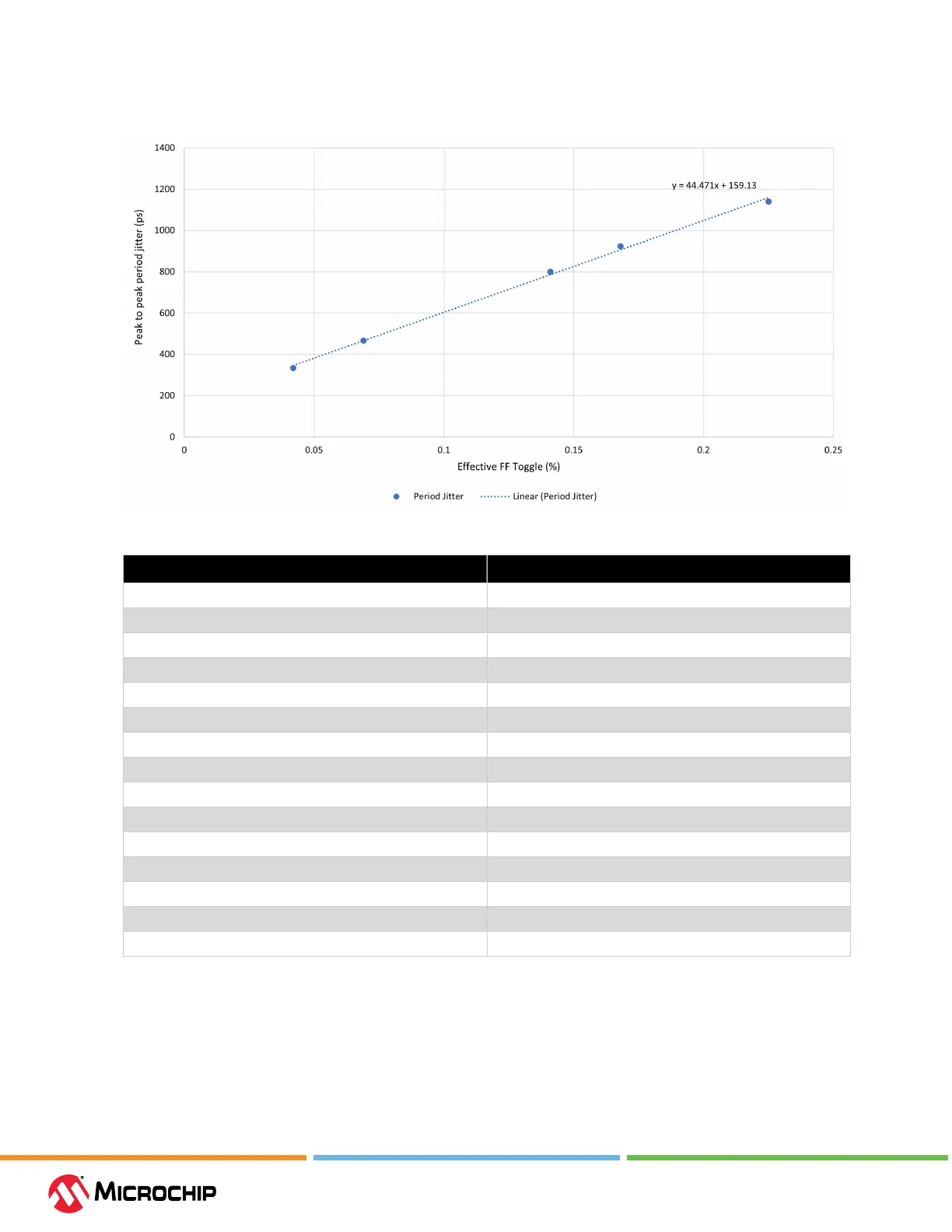

Figure 5-5. External Output Clock Period Jier vs Eecve FF Toggle Percentage
Table 5-25. Period Jier Formula for External Output Clocks
Topology Formula
Inbuf → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
Inbuf → CCC → Global → Outbuf Max (Input jitter, External output clock jitter)
Global → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
Global → CCC → Global → Outbuf External output clock jitter
TX clock → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
TX clock → Global → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
TX clock → Regional → CCC → PLL → Outbuf Max (PLL jitter, External output clock jitter)
RX clock → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
RX clock → Global → CCC → PLL → Global → Outbuf Max (PLL jitter, External output clock jitter)
RX clock → Regional → CCC→ PLL→ Outbuf Max (PLL jitter, External output clock jitter)
2 MHz / 160 MHz RCOsc → CCC → Global → Outbuf Max (RCOsc jitter, External output clock jitter)
160 MHz RCOsc → CCC → PLL → Global → Outbuf
1
Max (PLL jitter, External output clock jitter)
Inbuf → CCC → DLL → Global → Outbuf
2
Max (Input jitter + DLL jitter, External output clock jitter)
Inbuf → CCC → DLL → PLL → Global → Outbuf
2,3
Max (PLL jitter, External output clock jitter)
Inbuf → CCC→ PLL → DLL → Global → Outbuf Max (DLL jitter, External output clock jitter)
1. The 2 MHz RCOsc should not be used as reference clock of PLLs. The 160 MHz oscillator should
be used instead for better PLL input jitter immunity.
2. Input jitter is additive to DLL output jitter. It should not exceed the maximum DLL input jitter
allowed. Refer to Table 5-19 for information on jitter specications.
3. When cascading DLL into PLL, DLL output frequency should be limited such that the PLL
input jitter requirement is met. Refer to Table 5-18 and Table 5-19 for information on jitter
specications.
