Hi-Rel Standard
Ordering Informaon
Product Specication
© 2025 Microchip Technology Inc. and its subsidiaries
DS00005937A - 18

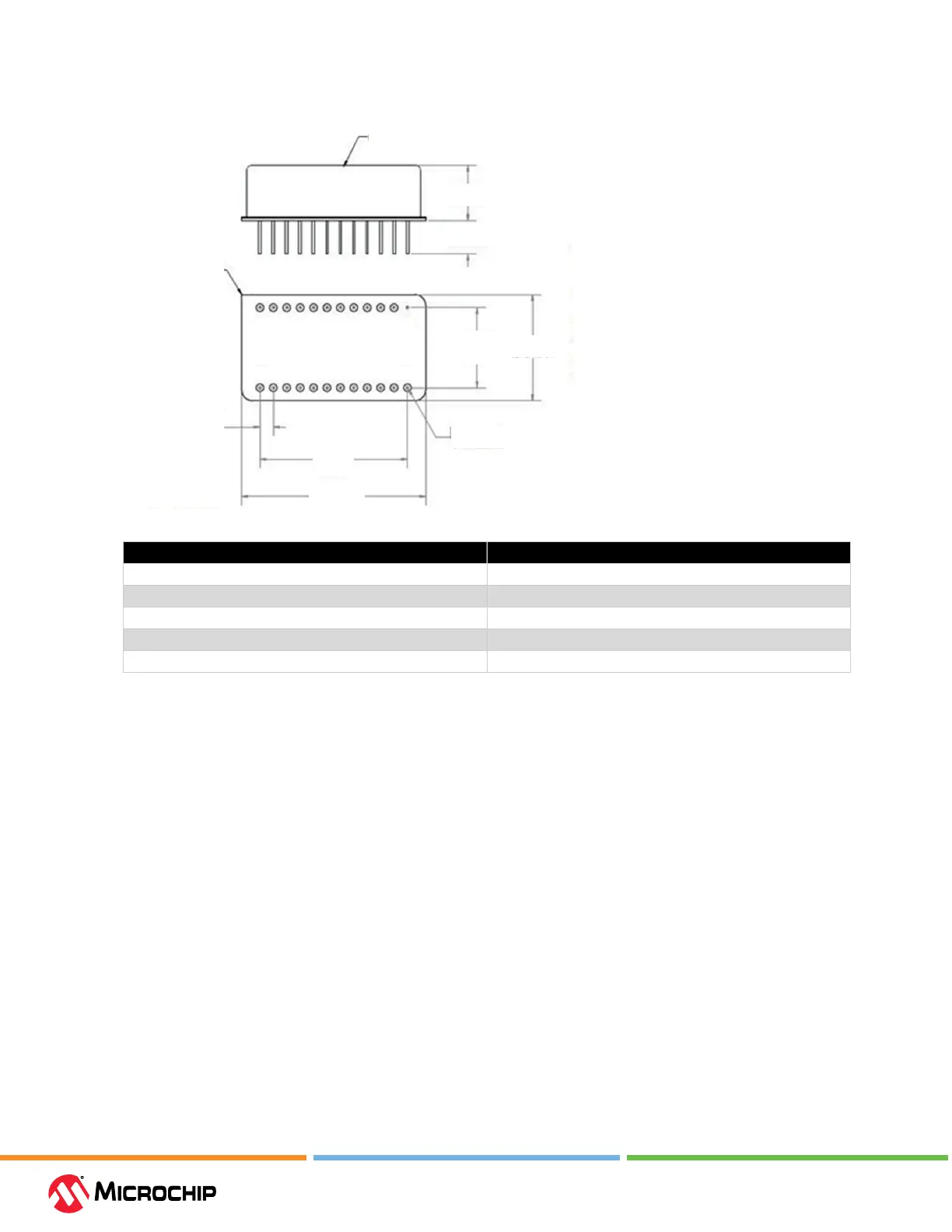

Figure 6-1. Models 2101 and 2111 Package Outline
MARKING THIS SURFACE
[10.80 MAX]
.425 MAX
[6.35±0.508]
.250±.020
SQUARE CORNER
INDICATES PIN 1
NOTES
1. PIN NUMBERS ARE FOR REFERENCE ONLY AND DO NOT
APPEAR ON THE UNIT
2. “NO INTERNAL CONNECTION” PINS MAY BE EXTERNALLY
GROUNDED
3. ENCLOSURE AND COVER MATERIAL: KOVAR
4. ENCLOSURE PLATING: GOLD OVER NICKEL
5. COVER PLATING: ELECTROLESS NICKEL
6. TOLERANCE (UNLESS OTHERWISE SPECIFIED
XXX± .005 [.130]
XX± .01 [.25]
[2.54]
.100
TYP
[15.24]
.600
CENT
[20.70]
.815 MAX
1
24 13
12
[27.94]
1.100
CENT
[0.46±0.051]
Ø.018±.002
[35.31]
1.390 MAX
Pin Function
1 External Frequency Control
12 GND/Case
13 RF Output
24 Vcc
All Others No Internal Connection
