Hi-Rel Standard
Ordering Informaon
Product Specication
© 2025 Microchip Technology Inc. and its subsidiaries
DS00005937A - 19

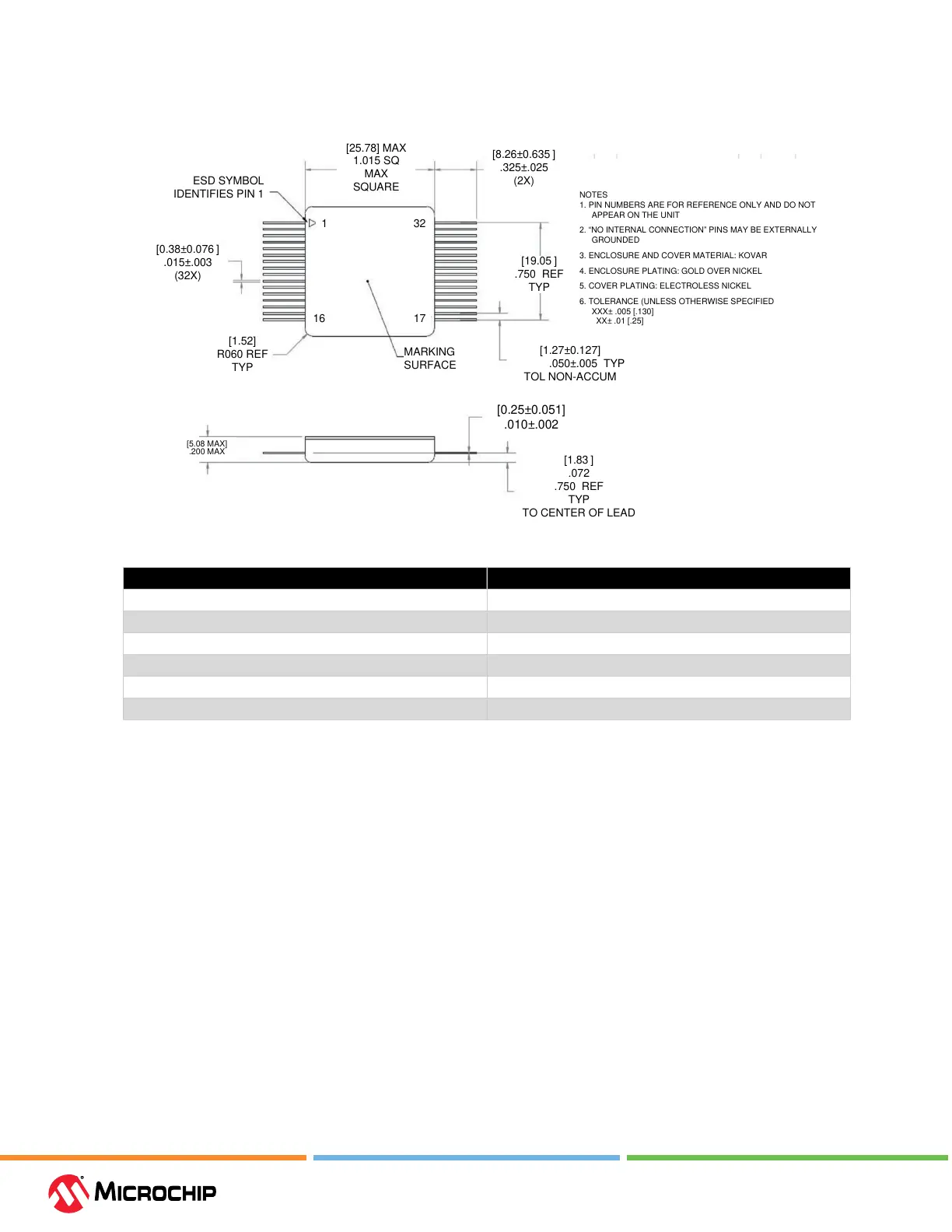

Figure 6-2. Models 2102 and 2112 Package Outline
ESD SYMBOL
IDENTIFIES PIN 1
[25.78] MAX
1.015 SQ
MAX
SQUARE
NOTES
1. PIN NUMBERS ARE FOR REFERENCE ONLY AND DO NOT
APPEAR ON THE UNIT
2. “NO INTERNAL CONNECTION” PINS MAY BE EXTERNALLY
GROUNDED
3. ENCLOSURE AND COVER MATERIAL: KOVAR
4. ENCLOSURE PLATING: GOLD OVER NICKEL
5. COVER PLATING: ELECTROLESS NICKEL
6. TOLERANCE (UNLESS OTHERWISE SPECIFIED
XXX± .005 [.130]
XX± .01 [.25]
MARKING
SURFACE
[8.26±0.635 ]
.325±.025
(2X)
[19.05 ]
.750 REF
TYP
[1.52]
R060 REF
TYP
[1.27±0.127]
.050±.005 TYP
TOL NON-ACCUM
[0.25±0.051]
.010±.002
[1.83 ]
.072
.750 REF
TYP
TO CENTER OF LEAD
[0.38±0.076 ]
.015±.003
(32X)
[5.08 MAX]
.200 MAX
1
16 17
32
Pin Function
4 External Frequency Control
5 GND/Case
11 Vcc
12 RF Output
13 Vcc
All Others No Internal Connection
Note: Leads 11 and 13 are connected internally. Either or both can be used.
