XTreme-EFIS Operating Manual Page 14
This section displays the oil temperature, oil pressure, as well as the 2 auxiliary analog channels (display labels are
configurable). If more then 2 channels are enabled then the display area will alternate at a 3 second interval. The oil
temperature/pressure as well as the 2 auxiliary analog channels can be configured in the “EMS SETUP” menu.
3.4.4 Fuel display section
The XTreme supports dual fuel flow and dual fuel levels. The fuel section will automatically try and maximize the display
area according to the fuel parameters selected. The XTreme has 20 different fuel modes of operation. The fuel
parameters can be configured in the “FUEL SETUP” menu.

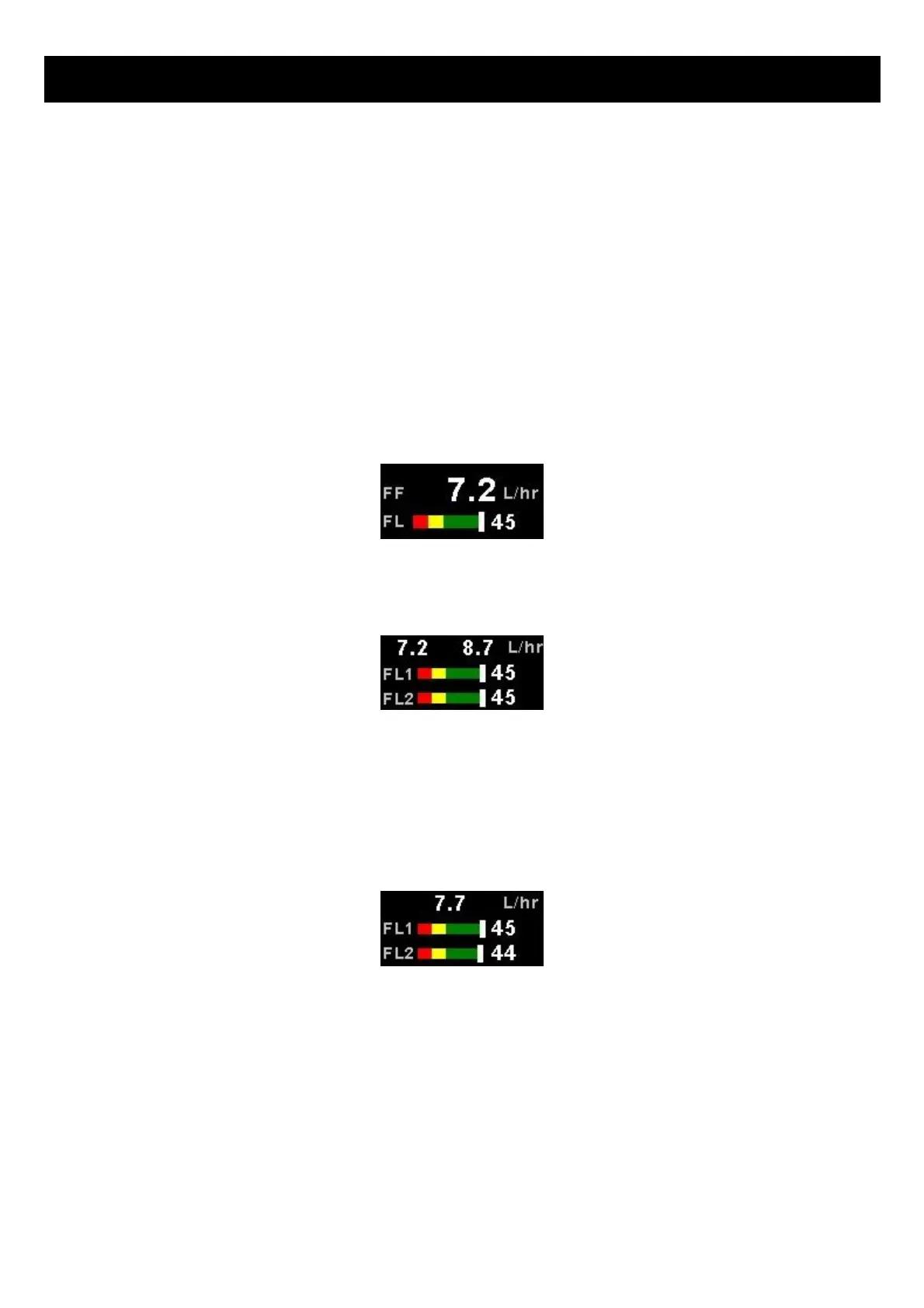

3.4.4.1 Single fuel flow and calculated tank level (single tank)
Single fuel flow and fuel level sender (single tank)
Differential fuel flow and calculated tank level (single tank)
Differential fuel flow and fuel level sender (single tank)
Summed fuel flow and calculated tank level (single tank)
Summed fuel flow and fuel level sender (single tank)
3.4.4.2 Dual fuel flow and calculated tank levels (dual tank)
Dual fuel flow and dual fuel level senders (dual tank)
3.4.4.3 Single fuel flow and dual fuel level senders (dual tank)
Single fuel flow, single fuel level sender, single calculated tank
Differential fuel flow and dual fuel level senders (dual tank)
Differential flow, single fuel level sender, single calculated tank
Summed fuel flow and dual fuel level senders (dual tank)
Summed fuel flow, single fuel level sender, single calculated tank
Single/Differential/Summed fuel flow, single fuel level sender, single calculated tank
These modes are nice for multiple fuel tanks whereby one or more tanks are difficult to insert level senders in. Potential
problems such as those listed below can easily be diagnosed by doing side by side comparisons between a calculated
and physical tank.
• Leaks in the fuel system
• Uneven drain of interconnected tanks
• Malfunction of the level sender
• Malfunction of the flow sender
