Vega TP-3 Operating Manual Page 23

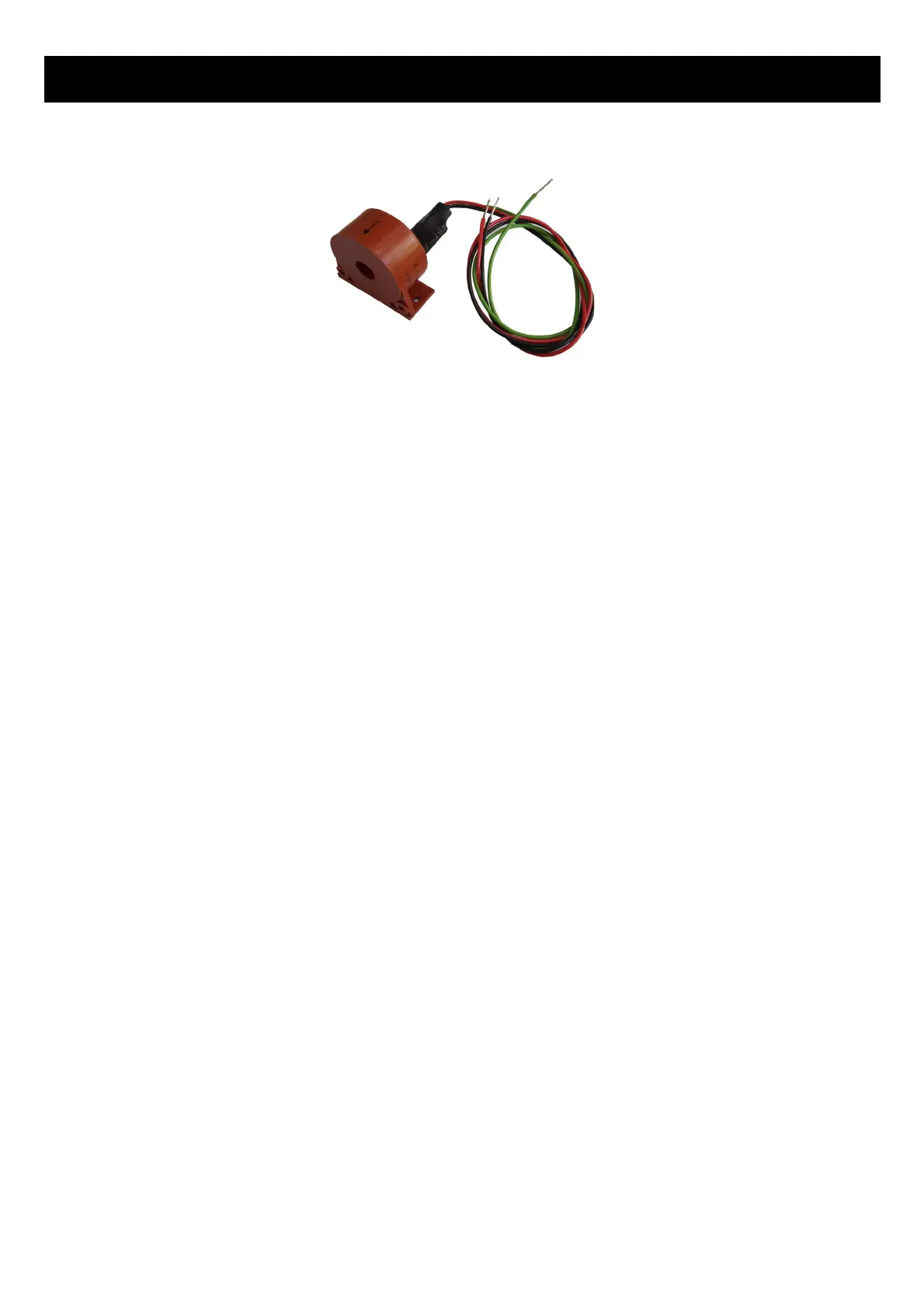

10.6 Closed Loop Current Sensor
The MGL Avionics magnetic closed loop current sensor provides a 0.5V to 4.5Vdc output voltage which is proportional to
a 50A bi-directional input current.
Advantages of closed loop current sensors over conventional current measurements techniques is that they provide the
highest accuracy, are ideal for noisy electrical environments and they provide complete electrical isolation f rom the
current carrying conductor.
Please see the MGL Avionics Closed Loop Current Sensor manual for connection information
10.7 External RDAC (Remote Data Acquisition) Connection (Optional)
The TP-3 can use an external RDAC unit as the source for the analog signals. Using an external RDAC may be beneficial
as it will reduce the wiring from the engine compartment to the cockpit. Only the CAN High and CAN Low connections
need to be made between the RDAC unit and the TP-3 in order for this to work. Select “RDAC” for the data source in the
various analog channel setup menus if using the external RDAC option. The RDAC unit is optional and is purchased
separately.
TP-3 Channel 1 = RDAC OILT
TP-3 Channel 2 = RDAC OILP
TP-3 Channel 3 = RDAC AUX1
TP-3 Channel 4 = RDAC AUX2
