Vega TP-3 Operating Manual Page 11

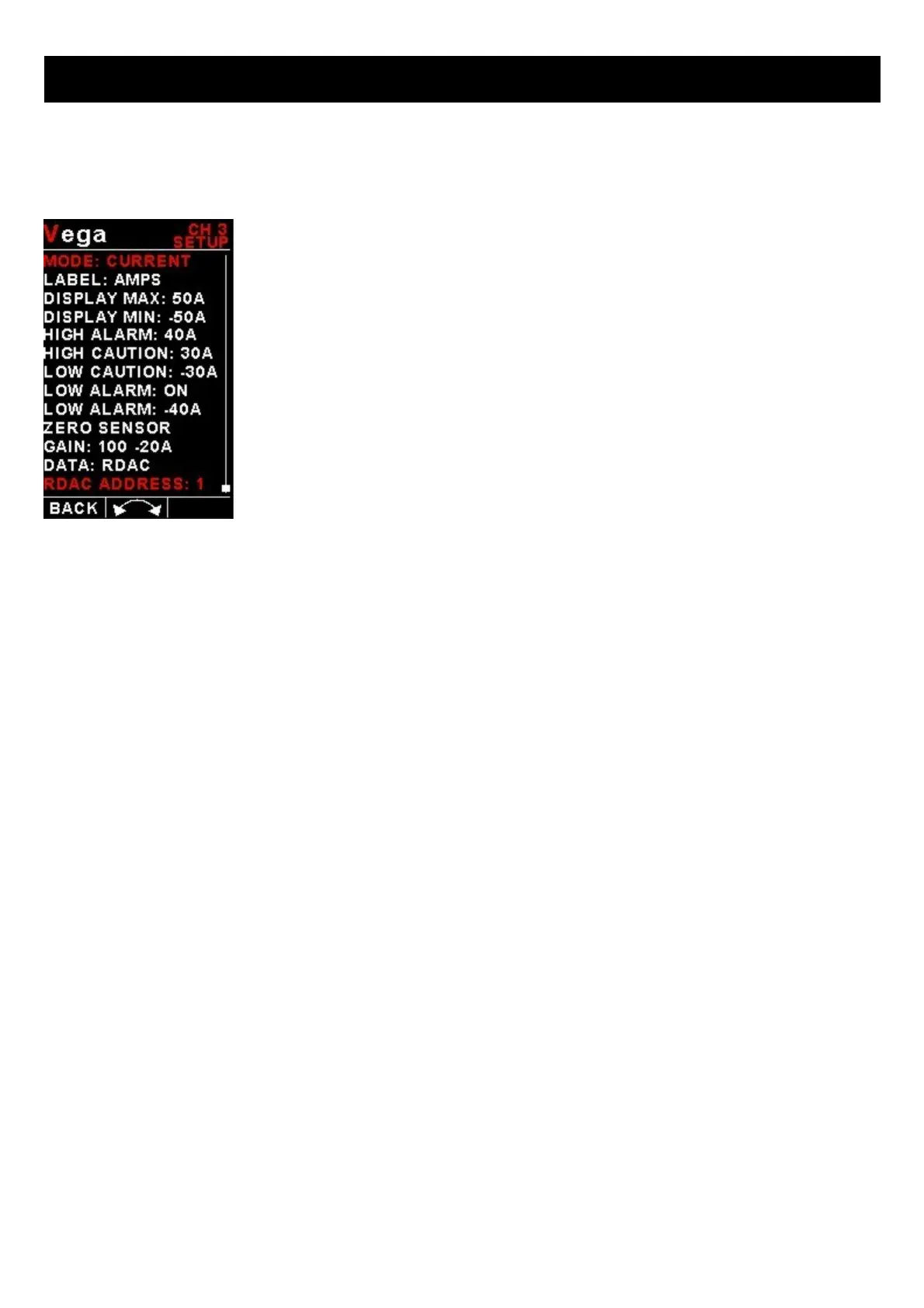

4.2.4 Current Setup (MGL Avionics Magnetic Closed Loop Current Sensor
required)
Mode:
Select the function for the analog channel. Options are “PRESSURE”, “TEMP”, “CURRENT”, “VOLTS” or “OFF”.
Label:
Enter a label to suit your current channel so you can identify it easily.
Display Max:
Select the maximum current that you want the bargraph to show. This can give you increased display resolution.
Display Min:
Select the minimum current that you want the bargraph to show. This can give you increased display resolution.
High Alarm:
This enables or disables the current high alarm.
High Alarm:
Enter the current threshold for when the high alarm must be activated. Any current above this value will activate the
alarm.
High Caution:
Enter the current value for the high caution. This is the lower value of the upper yellow band.
Low Caution:
Enter the current value for the low caution. This is the upper value of the lower yellow band.
Low Alarm:
This enables or disables the current low alarm.
Low Alarm:
Enter the current threshold for when the low alarm must be activated. Any current below this value will activate the alarm.
