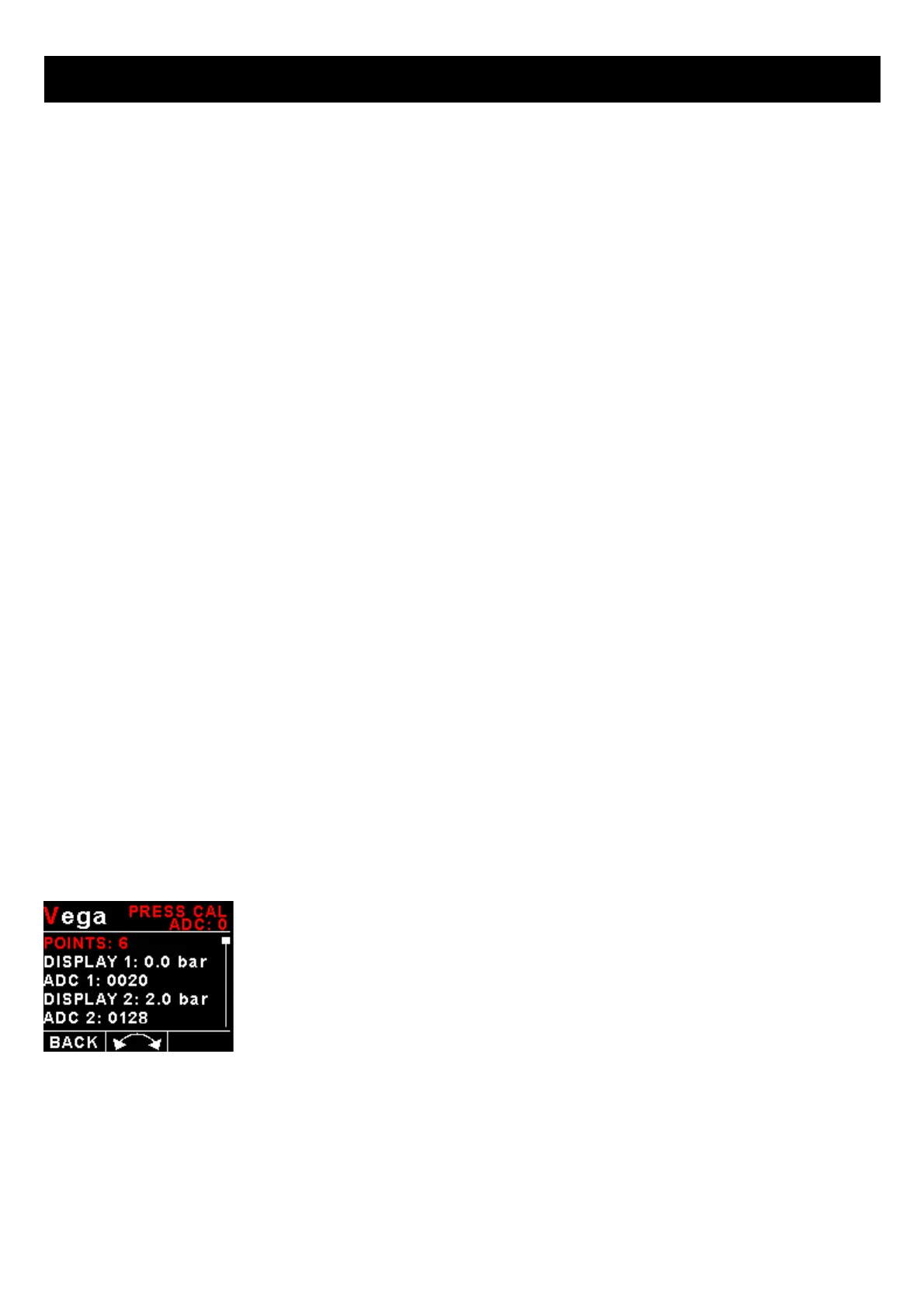

Vega TP-3 Operating Manual Page 10
Display Min:
Select the minimum temperature that you want the bargraph to show. This can give you increased display resolution.
High Alarm:
This enables or disables the temperature high alarm.
High Alarm:
Enter the temperature threshold for when the high alarm must be activated. Any temperature above this value will activate
the alarm.
High Caution:
Enter the temperature value for the high caution. This is the lower value of the upper yellow band.
Low Caution:
Enter the temperature value for the low caution. This is the upper value of the lower yellow band.
Low Alarm:
This enables or disables the temperature low alarm.
Low Alarm:
Enter the temperature threshold for when the low alarm must be activated. Any temperature below this value will activate
the alarm.
Data:
Select the data source of the temperature signal. Options include internal (using one of the analog channels within the
TP-3) or from an optional external RDAC unit.
RDAC Address:
Select the CAN address of the RDAC unit.
4.2.3 Calibrating the user defined pressure,temperature and current
senders
1. Enter the number of points that you want to calibrate.
2. Enter the display reading that you want to show when the sender is at that actual
display reading.
3. Enter the ADC (analog to digital converter) reading that corresponds to this display
reading. The ADC reading is shown at the top of the display if you are applying the
actual stimulus from the temperature, pressure or current sender. You can also
manually enter this value if the ADC value is known or pre-calculated.
4. Continue entering display and ADC values until all the points have been entered.
5. Verify the above calibration by checking the temperature, pressure or current display
versus the actual applied sender stimulus.
