4.3.2 Re-activating the residual current circuit
breaker and circuit breaker
The multi-function button can be used to re-activate the
residual current circuit breaker (RCCB) and circuit breaker
(CB) inside the charging station mechanically from the
outside without opening the enclosure.
1. Press the multi-function button until you feel resistance.
2. Now press the multi-function button firmly up to the en
d
pos
ition.
Residual current circuit breaker (RCCB) and circuit breaker
(CB) are re-activated and charging station is operational
again.
4.3.3 T
esting the integrated residual current circuit
breaker (RCCB)
The multi-function button can be used to trigger the test-
function of the residual current circuit breaker (RCCB) inside
the charging station from the outside without opening the
enclosure.
1. Insert a flat screwdriver with a blade width of 8 to
10 mm in the slot of the multi-function button.
2. Turn the multi-function button by 90 ° anti-clockwise.
3. Press the multi-function button briefly (about 2 seconds).
The residual current circuit breaker (RCCB) is triggered and
the fault display on the LED info bar flashes red.
4. Re-activate the residual current circuit breaker (RCCB)
(see Chapter Testing the integrated residual current
circuit breaker (RCCB)).
4.3.4 A
cknowledging faults
Faults are indicated by the "Fault" LED on LED info bar.
Some faults can be resolved by acknowledging.
Press the multi-function button to acknowledge a fault.
See also Chapter "Troubleshooting" on page 12.
Key switch 4.4

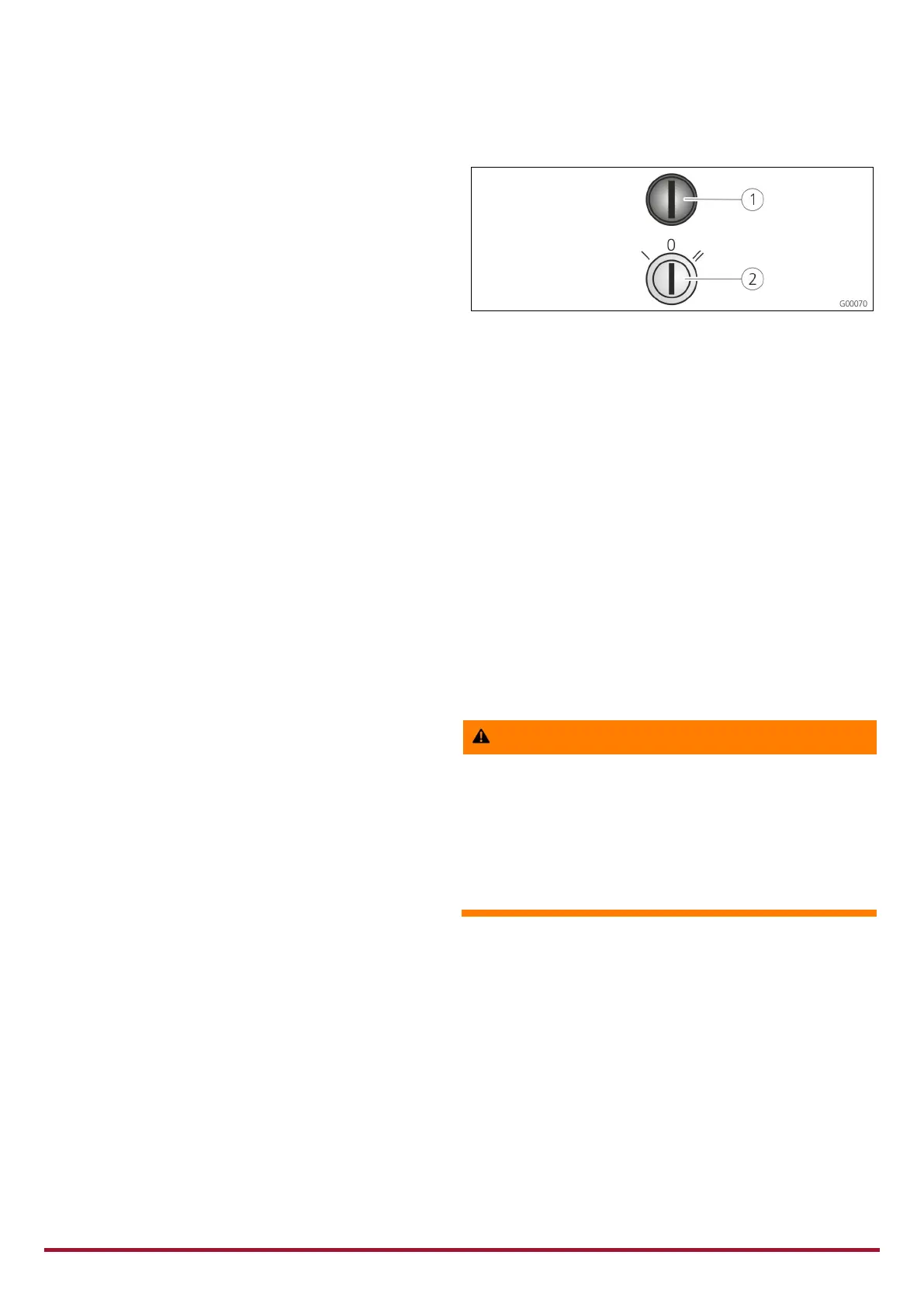

Fig. 9: Key switch (only version "Basic")
1
Multi-function button
2
Key switch
The key switch can be used to control the authorisation of
charging processes.
Position 0 (neutral position): charging function disabled.
Position I (momentary): charging function enabled once-
off.
Only one charging process is possible. If another
charging process should be authorised, you need to key
to position I again.
Position II (engaging): charging function is permanently
enabled.
The key can be removed in switch positions 0 and II.
Charging the vehicle 4.5
Warning
Risk of injury due to incorrect handling!
Using an extension cable or second charging cable may
result in electric shock or cable fire. Using extension cables
is not permitted.
Never use more than one charging cable for
connection the electric vehicle to the charging station.
Use only undamaged charging cables.
4.5.1 Starting the charging process
The charging station can be used without prior authorisation.
Charging stations with key switch require prior authorisation
by using the key switch.
See Chapter "Key switch" on page 9.
