10

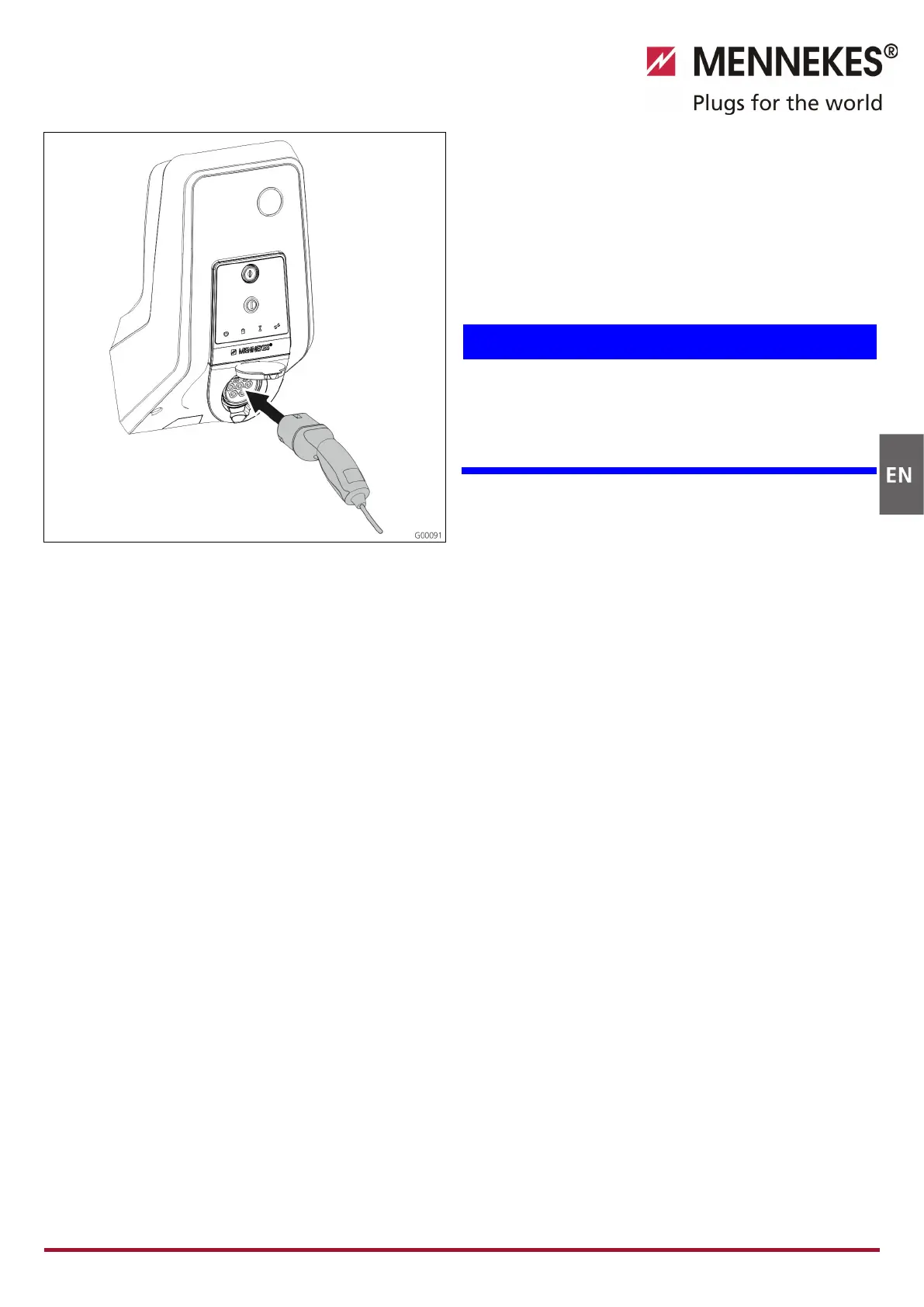

Fig. 10: Connecting the charging cable
Make sure that vehicle and charging cable are suitable for
mode 3 charging.
1. Connect the charging cable to the vehicle.
2. Insert the plug of the charging cable completely into the
charging socket type 2 at the charging station (only for
charging stations with integrated charging socket
type 2).
The charging station performs now the following steps
a
utomatically:
Detecting the current-carrying capacity of the chargi
ng
c
able with resistance coding. Unsuitable charging cables
are rejected.
It checks that the requirements for proper charging have
been met.
Communicating with the vehicle using the CP contact.
The charging current upper limit is communicated to the
vehicle with a PWM signal. The protective earth
connection is checked at the same time.
The charging station interlocks the charging pl
ug
me
chanically (only for charging stations with integrate
d
c
harging socket type 2). The vehicle signals the charging
station that it is ready for charging. The charging process
starts.
The symbol "Charging in Progress" lights up on the LED
info bar.
The maximum available charging current depends on the
following points
Power rating of the charging station.
Features / version of the charging station.
Current load capacity of the charging cable.
Configuration of DIP switches in the charging station.
4.5.2 T
erminating the charging process
Caution
Damage to the charging cable.
Pulling the cable may cause cable breaks and other
damages.
Remove the charging cable only by pulling the plug from
the charging socket.
1
. Press the multi-function button on the charging statio
n
o
r terminate the charging process at the vehicle (s
ee
C
hapter "Terminating an on-going charging process" o
n
p
age 8).
2. Remove the charging cable by pulling the plug from the
charging socket.
3. Remove the charging cable from the vehicle.
4.5.3 Power failure during charging process
A power failure aborts the charging process.
The charging plug of charging stations with charging socket
type 2 is unlocked and removed.
If the charging plug cannot be pulled out, an actuator has
mechanically interlocked the charging plug.
See Chapter "Troubleshooting" on page 12.
