www.megger.com EVX100
13
Testing with the EVX
6. Testing with the EVX
6.1 Testing for live voltages across terminals
The EVX can test between single phase, Neutral and Earth on a single-phase charger or all
three phases in a three-phase charger. To swap between phases:
1. Ensure the EVX is connected to the MFT-X1 and the charger is in State C as indicated in
the display.
2. Identify the connection option you wish to measure. Options are: L1, L2, L3 or L1-L2-L3
3. Press Hot key 5 to change the phase connection.
4. The MFT-X1 shall display the voltages relevant to the phase selected.

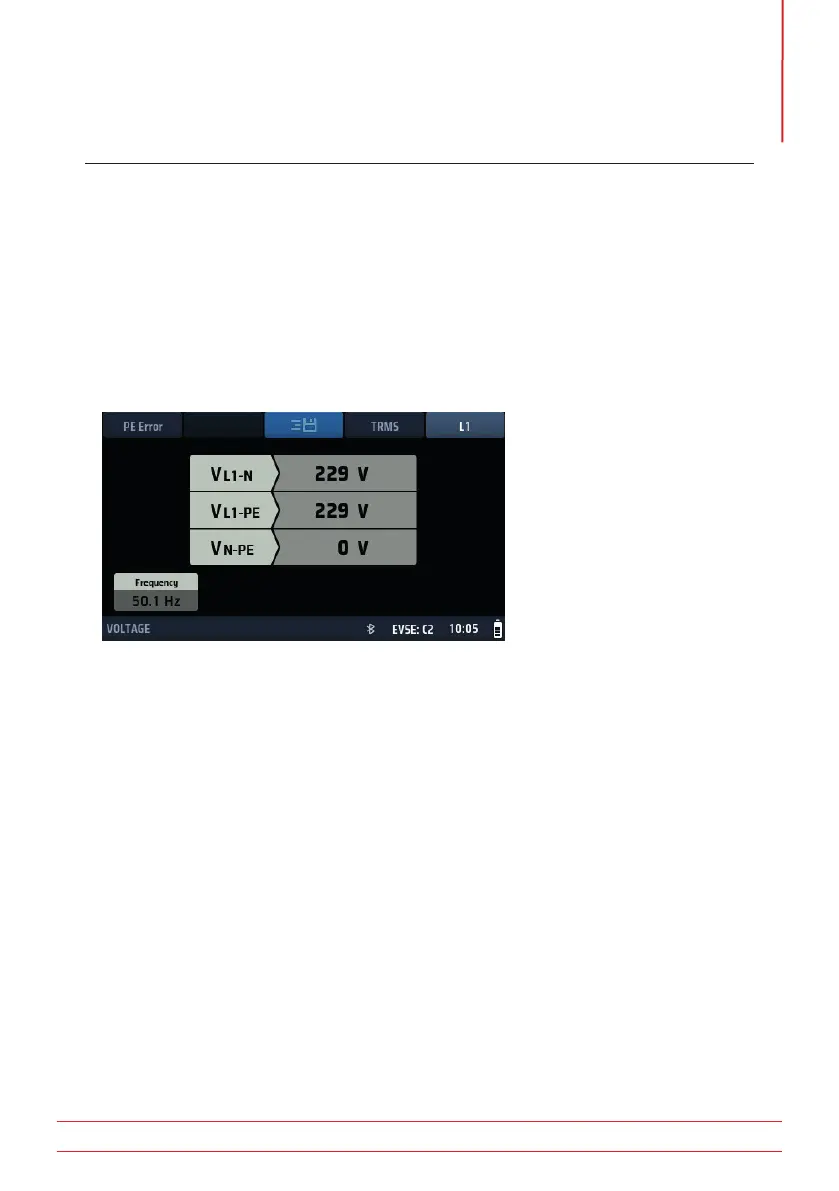

Voltage display
NOTE : Selecting a phase with no voltage, or L1-L2-L3 on a single-phase supply will cause
unconnected terminals to float to intermediate voltages.
6.2 Phase sequence
On a 3-phase charger the MFT-X1 will automatically show the phase sequence in the display
when it detects a compliant 3-phase connection.
The MFT-X1 will show either L1-L2-L3 or L3-L2-L1 depending on the phase sequence.
6.3 PE and CP error mode testing
The PE and CP error test generates a PE or CP error code that disables the EV charger.
Once in the disabled state, the charger is sent a state A, B and C to set it back to a charging
state. To test the PE or CP error response:
1. Ensure the MFT-X1, and EVX100 are in voltage mode and the MFT is displaying State C2.
2. Press the Hot key 1 to select PE or CP error.
3. Hold down the TEST button. The EV charger should be disabled and the display show 0 V
on the live terminals.
4. Release the TEST button. The charger should then return to State C2 and the voltages
appear on the charger terminals.
