Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
61
61

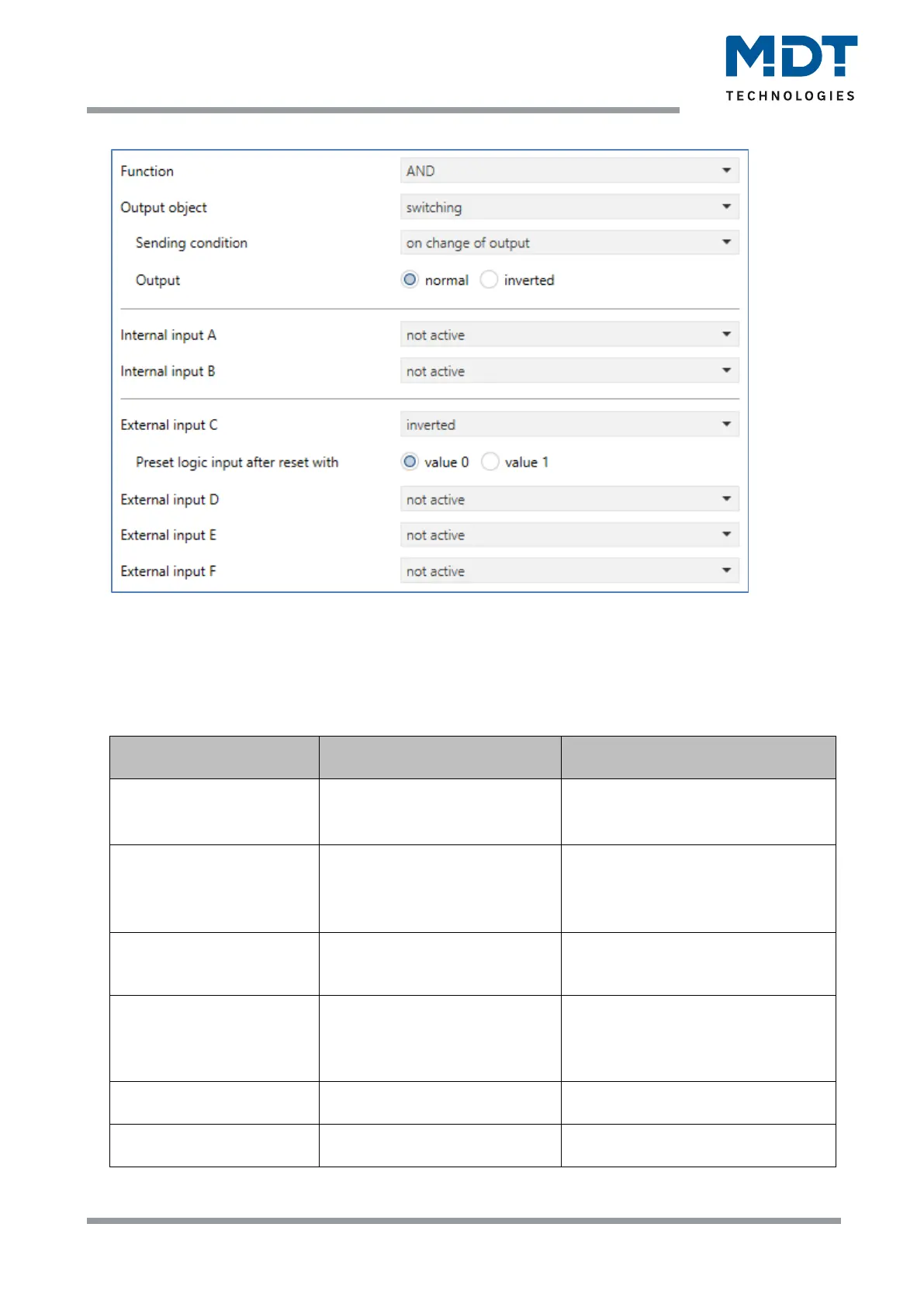

The following picture shows the submenu for logic:
Figure 40: Settings – Logic
With the logic function, different objects can be logically linked. Each logic function can link and
evaluate up to 2 internal objects and up to 4 external objects. The sending behaviour of the output
can be adjusted via the sending condition.
The following table shows the parameter settings for the logic:
ETS-Text
Dynamic range
[Default value]
Comment
Function
• AND
• OR
• XOR
Setting of the logic function
Output object
• switching
• scene
• value
• forced guidance 2bit
Setting the output object for the
logic
Scene number for
output value
“False/True”
not active
1 – 64
Visible when “Output object” –
“Scene” is set.
Setting the scene number to be sent
Value type
• 1 Byte Decimal (DPT
5.005)
• 1 Byte Percent (DPT
5.001)
Visible when “Output object” –
“Value” is set.
Setting the DPT for value to be sent
Percent value for output
value “False/True”
0 – 100 %
[0 %]
Visible when “1 Byte Percent” is set.
Setting the value to be sent
Value for output value
“False/True”
0 … 255
[0 %]
Visible when “1Byte Decimal” is set.
Setting the value to be sent
