Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
47
47
In addition, a threshold switch can be set for a certain brightness. This can be set with a hysteresis,
which avoids too frequent switching.
The interaction of hysteresis and threshold value is illustrated in the following graphic:

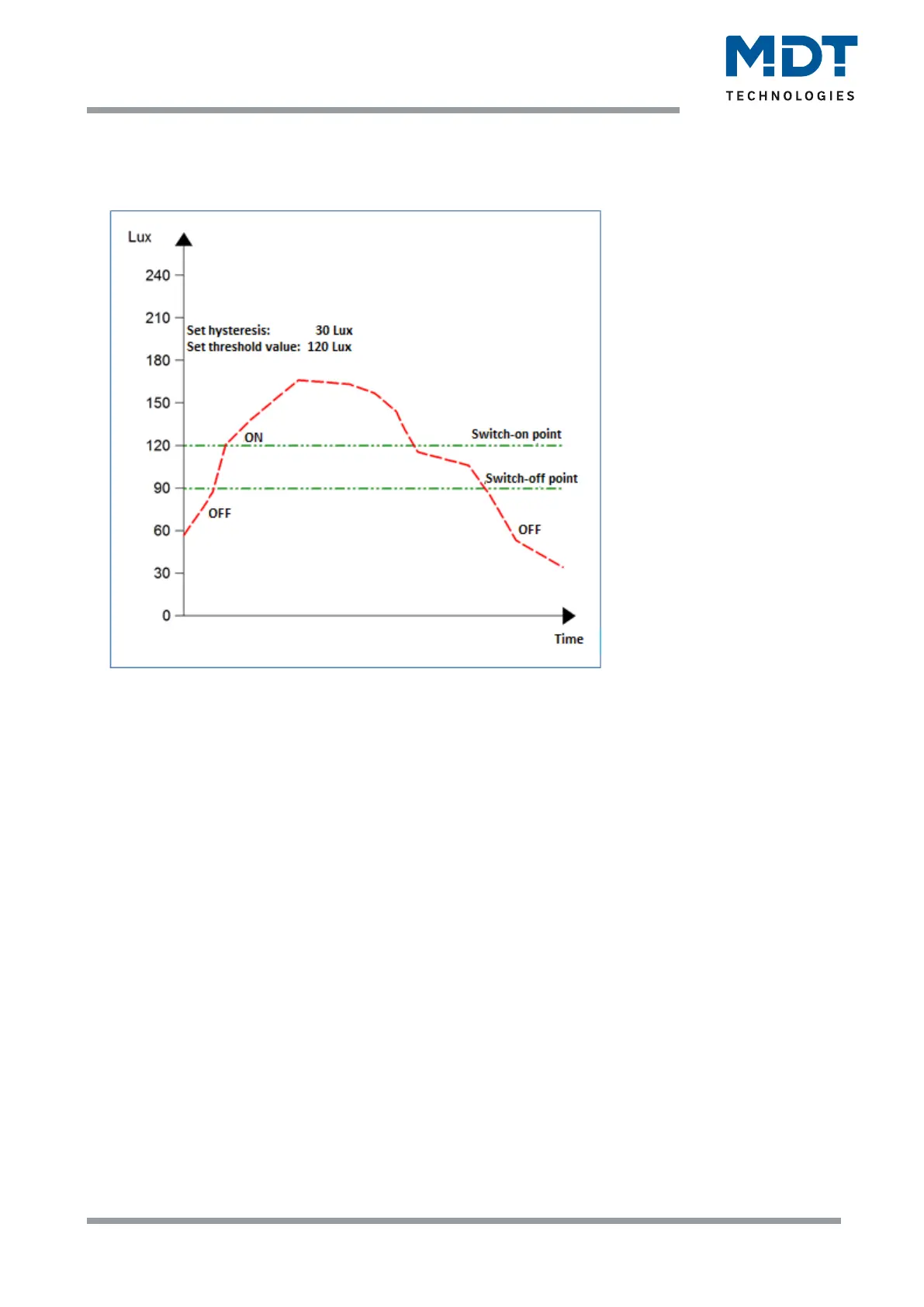

Figure 31: Diagram – Hysteresis of threshold switch
The object values and the sending conditions can be set as desired with the other parameters. Both
the polarity and a sending filter can be set.
Teach-in (only with constant light control)
If a Teach-in is carried out, the brightness measurement is automatically corrected. The reflection
factor should not be changed after a Teach-in. The Teach-in procedure should be carried out to
increase the accuracy of the control.
The procedure for Teach-in with constant light control (SCN-P/G360K3.03 and SCN-P360K4.03) is
described in the following chapter.
