Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
35
35
Half automatic without orientation light:

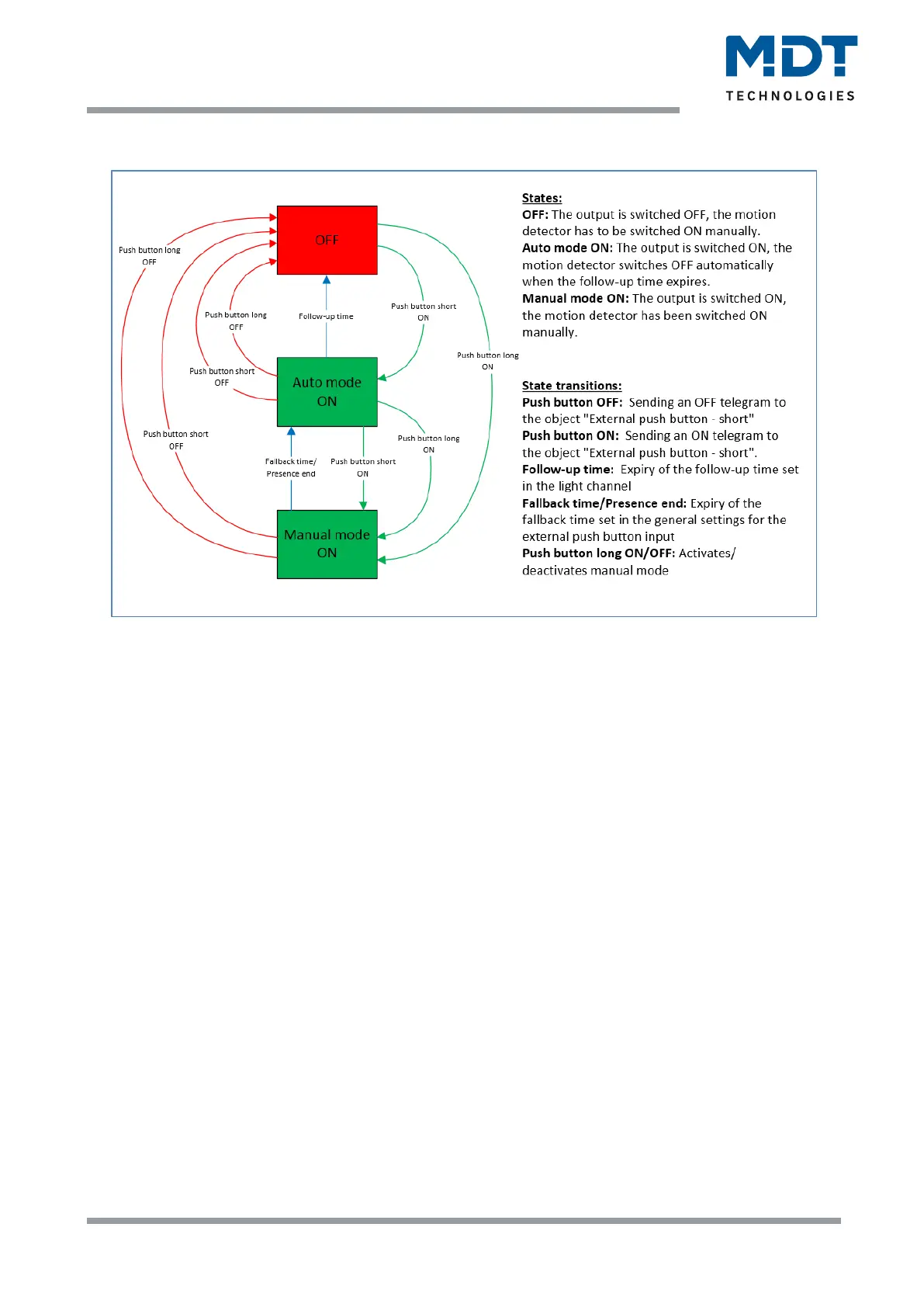

Figure 25: Process diagram – Half automatic without orientation light
In the operating mode "half-automatic", the motion detector has to be switched on manually via the
object "external push-button - short". The light channel is automatically switched off again after the
follow-up time (=no movement detection for the set follow-up time) has elapsed.
The light channel can also be overridden via the "external push-button - short" object. The motion
detector can be switched to manual mode by pressing twice
