Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
36
36
Half automatic with orientation light:

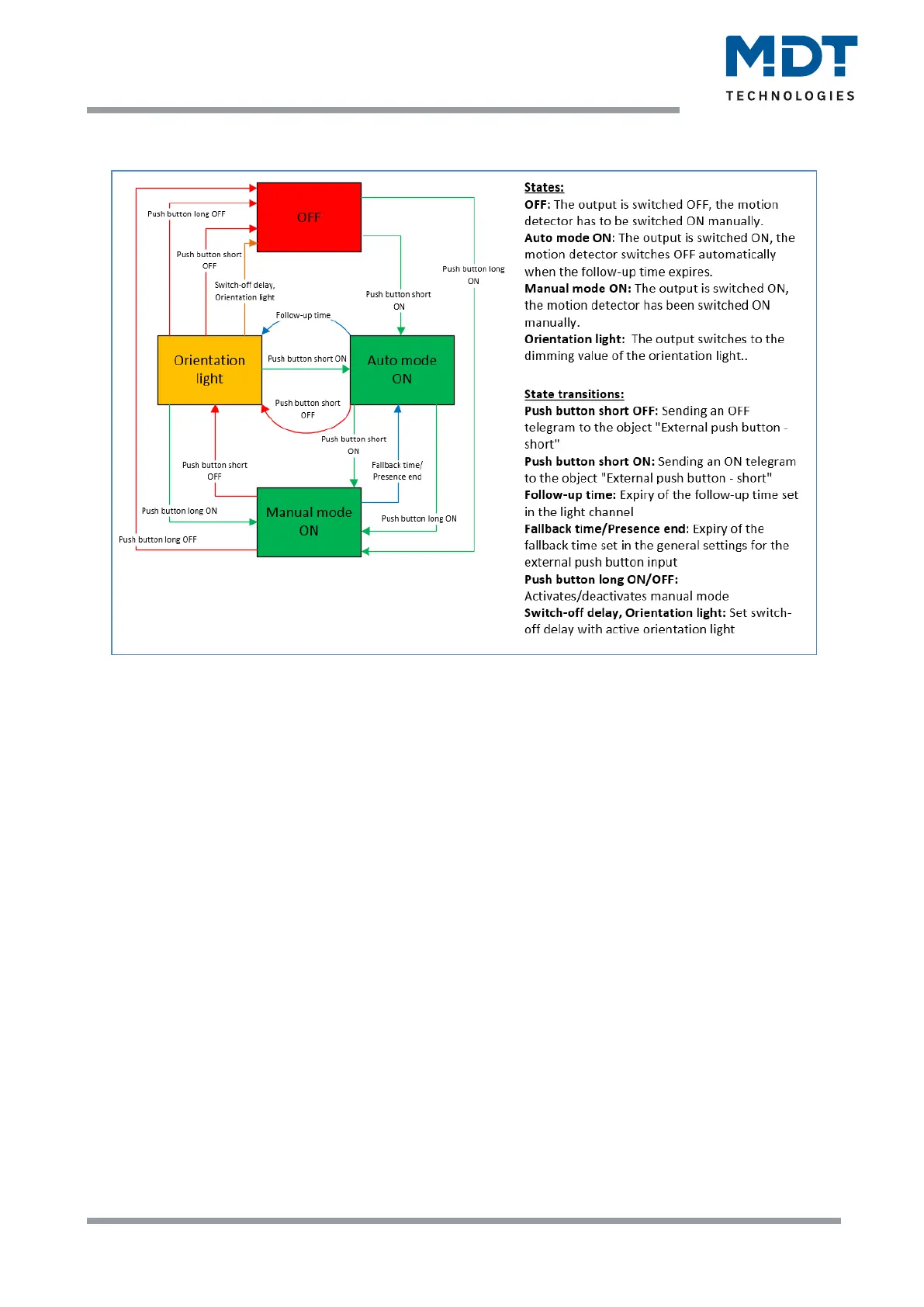

Figure 26: Process diagram – Half automatic with orientation light
The operating mode half-automatic with orientation light extends the operating mode half-
automatic by the orientation light state. The orientation light can be activated as soon as the "Object
type for output - light" parameter is set to absolute dimming.
The orientation light is switched on as soon as the follow-up time of the light channel has elapsed.
The output is then switched to the orientation light state and can therefore dim the light to a darker
level in order to leave the room safely.
