Technical Manual Presence Detector SCN-x360xx.03
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
Telephone: +49-2263-880 • knx@mdt.de • www.mdt.de
28
28

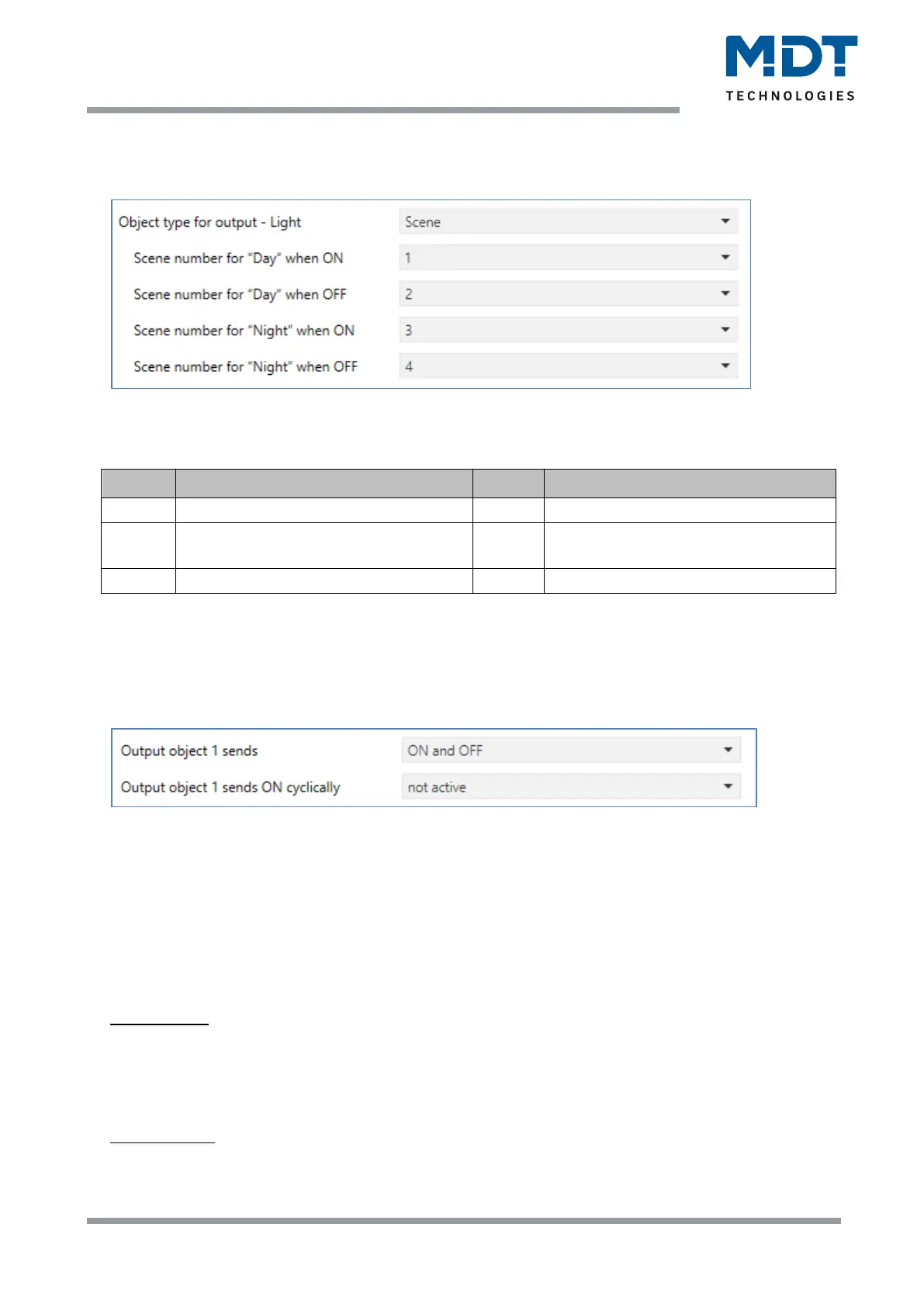

4.2.4.3 Output object: Scene
For this purpose, different scene numbers can be defined for Day- and Night mode:
Figure 18: Settings – Output object: Scene
For the light channels (not HVAC), an additional "Switching" output object can also be displayed.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Light channel 1 - Output 1 – Scene
1 Byte
Scene function of the light channel
2
Light channel 1 - Output 2 (additional) –
Switching
1 Bit
Second switching function of the light
channel
60
HVAC - Output 1 – Scene
1 Byte
Scene function of the HVAC channel
Table 11: Communication objects – Output object: Scene
4.2.4.4 Sending conditions for output objects
The sending conditions can be set for all three object types (here: switching):
Figure 19: Settings – Sending conditions for output objects
When selecting "Output object 1 sends", it is possible to define what is to be sent at the output. The
selection, according to the selected type, is as follows:
Switching: only ON / only OFF / ON and OFF
Dimming absolute: only dimming value for ON / only dimming value for OFF /
dimming value for ON and OFF
Scene: only scene number for ON / only scene number for OFF / ON and OFF
The parameter "Output object 1 sends cyclically..." differs for the Light channel and HVAC channel.
Light channel:
Output object 1 (for each selection) can send the configured value cyclically for ON only.
In addition, the additional switching object (output 2) can send its value cyclically. The interval
corresponds to that of output object 1. Here the values ON and OFF are always sent cyclically.
The time for cyclical transmission can be set between 10 seconds and 60 minutes.
HVAC channel:
In contrast to the Light channel, the HVAC channel for output object 1 can send the value for ON and
OFF cyclically. The sending interval can be set between 10 seconds and 60 minutes
