4.2.4.2 Output object: Dimming absolute
For this purpose, different dimming values can be defined for Day and Night:

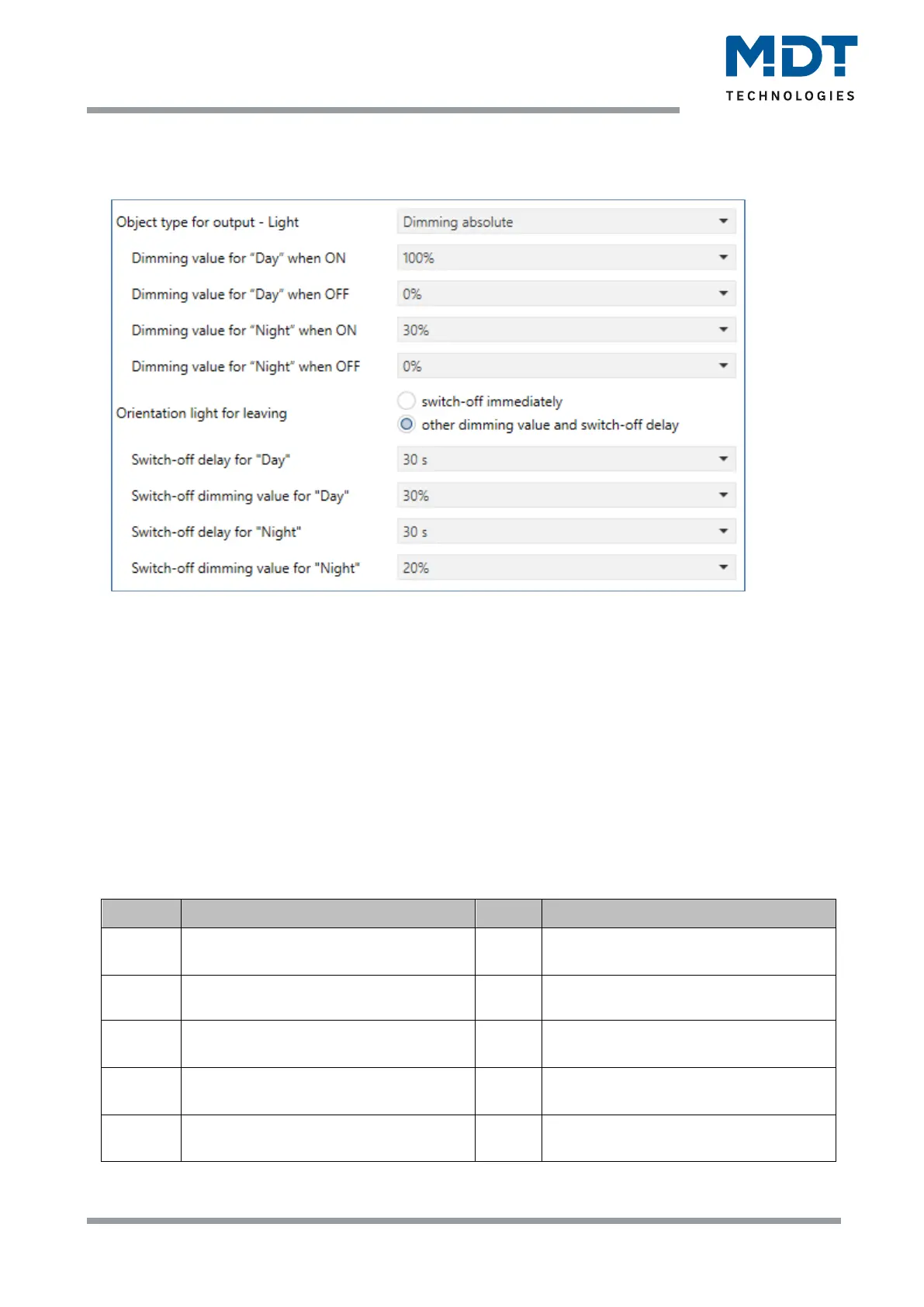

Figure 17: Settings – Output object: Dimming absolute
With the dimming values for Day/Night for ON/OFF, the corresponding absolute values are defined
that the channel sends after detection or after the follow-up time has elapsed. New values can be
specified via the " Teach-in dimming value for ON" objects.
If the channel is in Day mode, the corresponding ON value for Day is changed.
If the channel is in Night mode, the corresponding ON value for Night is changed.
In addition, an orientation light for leaving the room can be activated. The orientation light is called
up when the follow-up time of the light channel has elapsed. Without the orientation light, the
channel would be switched off immediately. The orientation light now causes the output to call up
the configured value for the switch-off delay for Day/Night and the light channel is only switched off
when the switch-off delay for Day/Night has elapsed.
For the light channels (not HVAC), an additional "Switching" output object can also be displayed.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Light channel 1 - Output 1 –
Dimming absolute
1 Byte
Dimming function of the light channel
2
Light channel 1 - Output 2 (additional) –
Switching
1 Bit
Second switching function of the light
channel
12
Light channel 1 - Input –
Teach-in dimming value for ON
1 Byte
Presetting a new dimming value when
switching ON
60
HVAC - Output 1 –
Dimming absolute
1 Byte
Dimming function of the HVAC channel
72
HVAC - Input –
Teach-in dimming value for ON
1 Byte
Presetting a new dimming value when
switching ON
Table 10: Communication objects – Output object: Dimming absolute
