Technical Manual – Presence Detector SCN-P360D1.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
19
19
Send on day only
• send nothing
• only ON
• only OFF
• ON and OFF
Sending filter at day mode
Send on night only
• send nothing
• only ON
• only OFF
• ON and OFF
Sending filter at night mode
Table 9: Settings brightness
At the Menu brightness the sending behavior for the measured brightness value can be adjusted. The
measured brightness value can be send at determined changes or at determined times.
Additional a treshold can be defined. This threshold can be adjusted with a hysteresis for preventing
of frequently switching. The effect of the hysteresis shows the following figure:

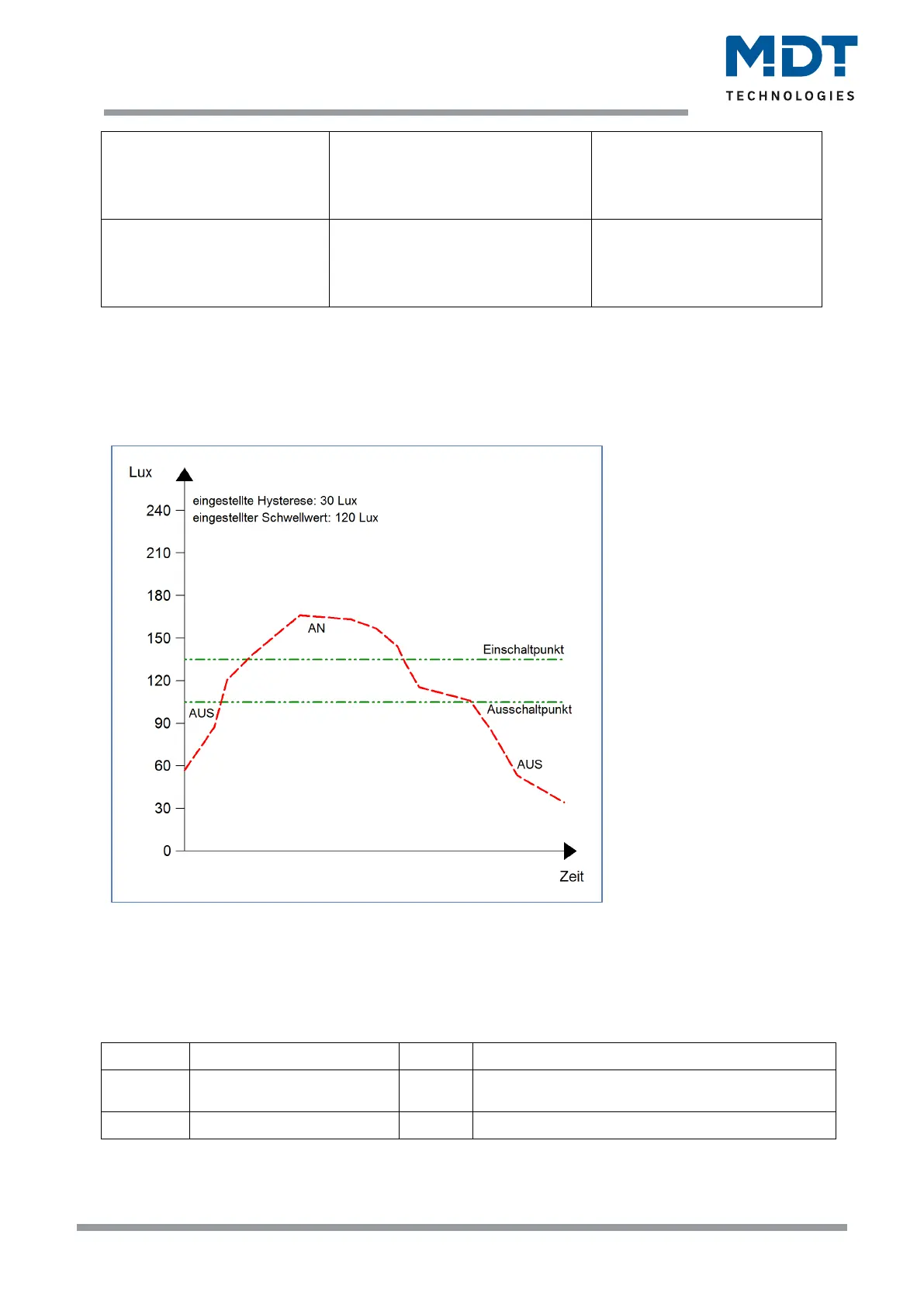

Figure 8: Hysteresis brightness threshold
Further more the polarity and the sending behavior can be adjusted by the parameters Object value
for day/night/off and “Send on day/night only”.
The following table shows the relevabt communication objects:
Number
Name
Length
Usage
16
Threshold switch
brightness
1 Bit
sends the adjusted value at exceedance or
undercut
17
Brightness value
2 Byte
measured brightness value
Table 10: Communication objects brightness
