Technical Manual – Presence Detector SCN-P360D1.01
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
20
20
4.4 Calibration brightness value
The following figure shows the available settings for the calibration oft h e brightness value:

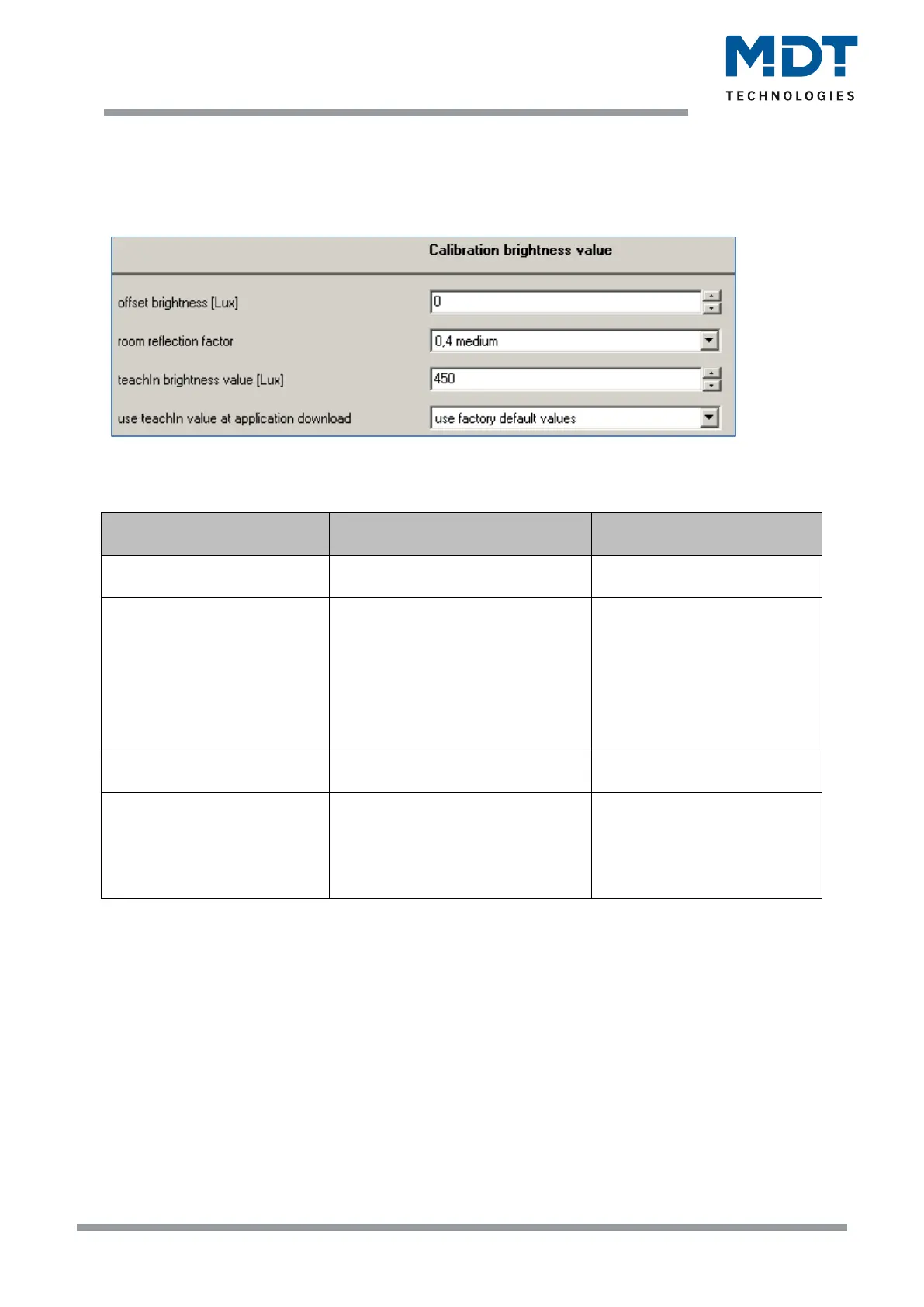

Figure 9: Calibration brightness value
The following chart shows the availbale settings for this parameter:
ETS-Text
Dynamic range
[Default value]
Comment
Offset brightness [Lux]
-100 – 100
[0]
Increasing/Decreasing by the
adjusted value
Room reflection factor
• 1
• 0,7 very high
• 0,5 high
• 0,4 medium
• 0,3 low
• 0,25 low
• 0,2 very low
Reflection factor of the
environment;
indicates how much light is
reflected bach (1=100% /
0=0%)
TeachIn brightness value[Lux]
200-1000
[450]
Comparison value for external
import
Use TeachIn value at
application download
• hold TeachIn values
• Use factory default values
Adjustment if the presence
detector shall keep the
TeachIn values after a
download or use the factory
default values
Table 11: Calibration brightness value
Consecutively the parameters are described in detail:
• Offset brightness
The correction of the brightness value is a simple offset of the measured brightness value. So
at a value of -50, the measured value is reduced by 50. By this setting the presence detector
would send at a value 0f 400 at measured value of 450.
