4.4.9 Reference via outdoor temperature
Important: This parameter is only available for the operating mode "Cooling"!
The following settings are available:

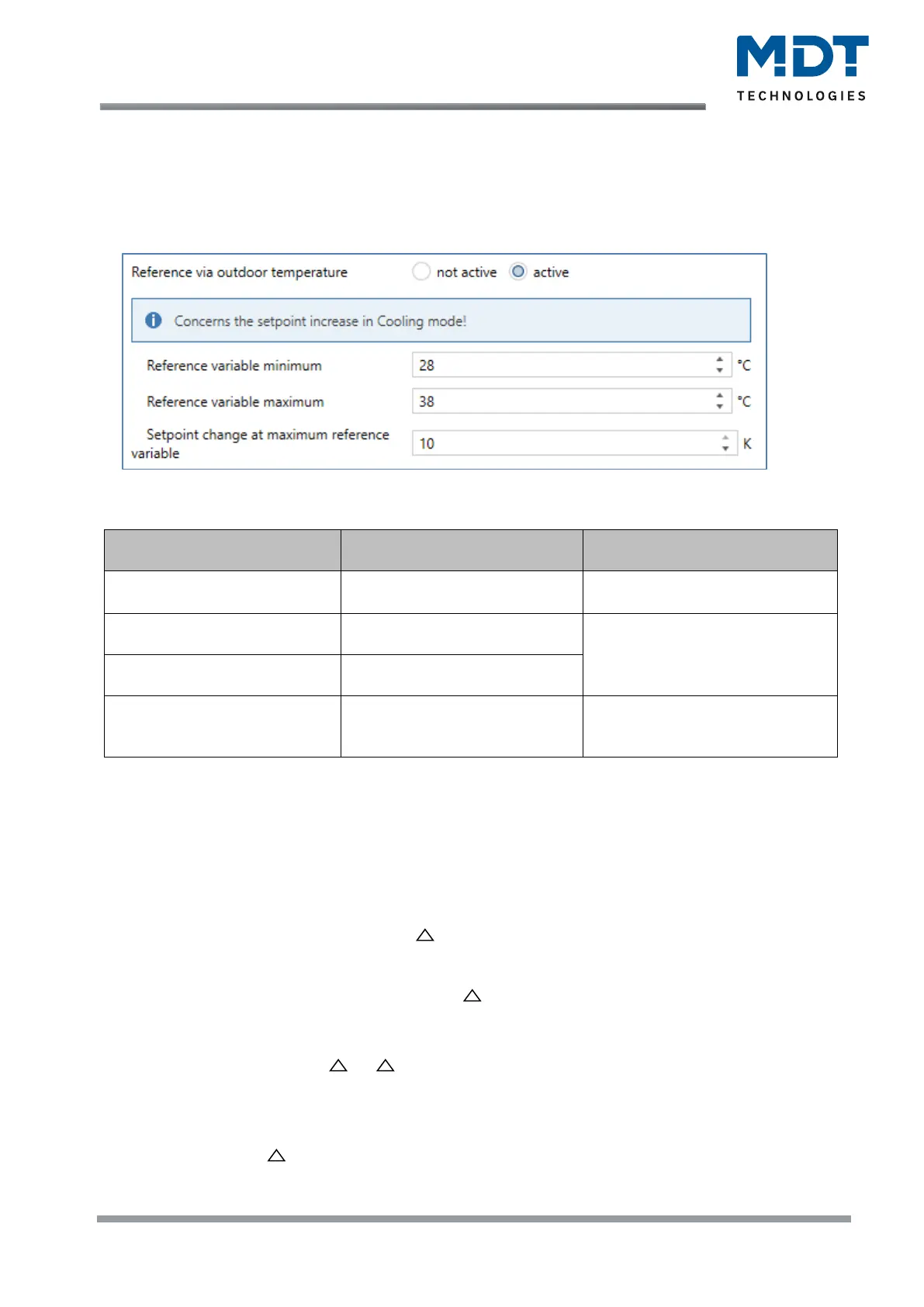

Figure 28: Settings – Reference via outdoor temperature
The following table shows the setting options for this parameter:
ETS-Text
Dynamic range
[Default value]
Comment
Reference via outdoor
temperature
▪ not active
▪ active
Activation of the parameter.
Only available in Cooling mode!
Reference variable
minimum
10 … 60 °C
[28°C]
Lower respectively upper
response value of the reference
control.
Reference variable
maximum
10 … 60 °C
[38°C]
Setpoint change at
maximum reference
variable
1 … 10 K
[10 K]
Change of the setpoint when the
maximum reference variable is
reached.
Table 56: Settings – Reference via outdoor temperature
General description of the functionality of the "Reference control”:
The "Reference control" parameter makes it possible to linearly track the setpoint as a function of
any reference variable, which is recorded via an external sensor. With appropriate configuration, a
continuous increase or decrease of the setpoint can be achieved.
To determine the extent to which reference control affects the setpoint, three settings must be
made: Minimum reference variable (w
min
), maximum reference variable (w
max
), and the setpoint
change at maximum reference variable ( X).
The settings for the reference variable maximum (w
max
) and minimum (w
min
) describe the
temperature range in which the reference variable begins and ends to influence the setpoint. The
setpoint change at maximum reference variable ( X
max
) describes the ratio of how strongly an
increase in the reference temperature affects the setpoint. The actual setpoint change then results
from the following relationship:
X = X
max
* [(w - w
min
)/(w
max
- w
min
)]
If the reference control is to be increased, a positive value must be set for the "setpoint change at
maximum reference variable" (Cooling mode). If, on the other hand, a setpoint reduction is desired,
the "setpoint change at maximum command value" must be set to a negative value (Heating mode).
The setpoint change X is then added to the basic comfort value.
