Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
79
79

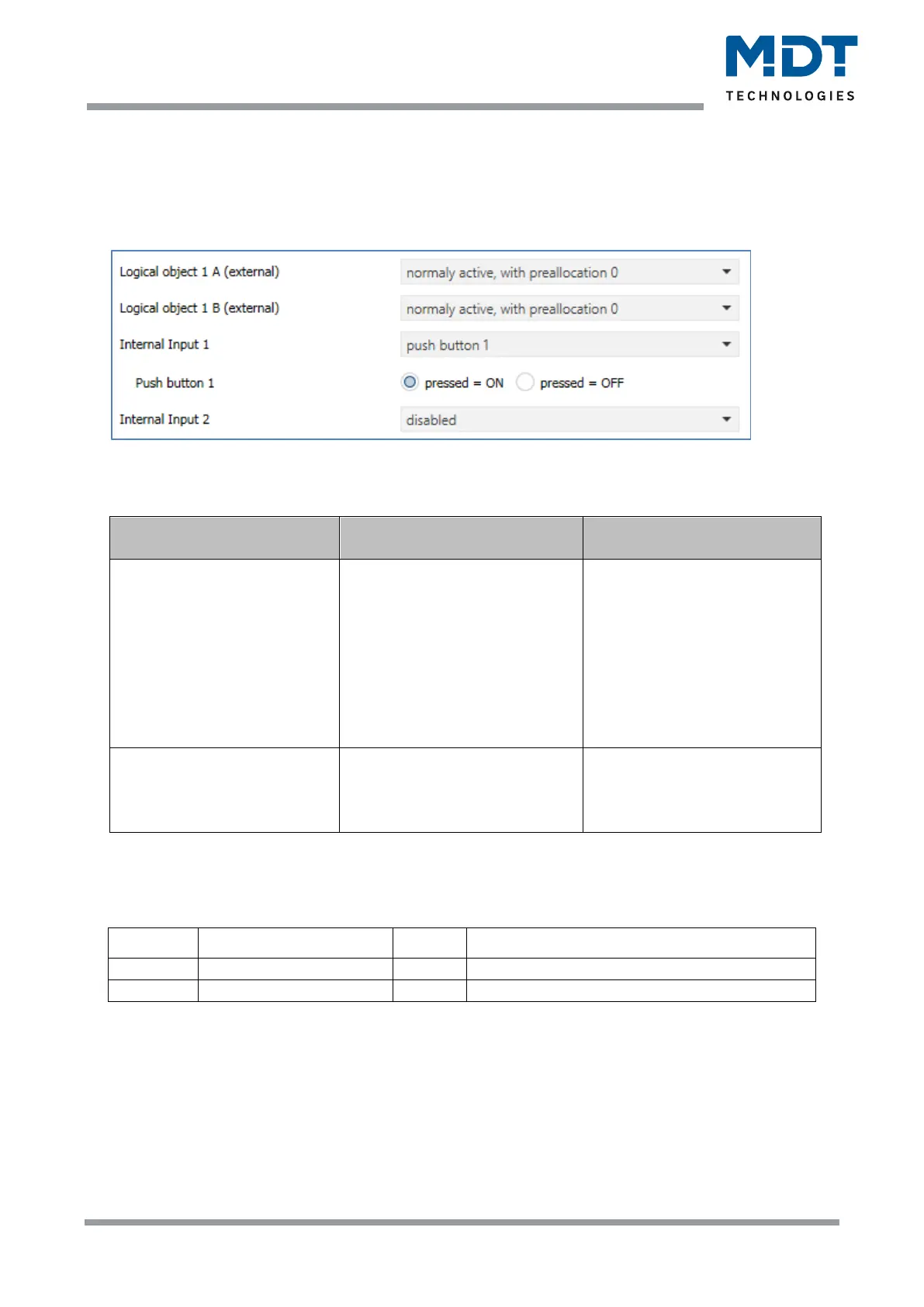

4.8.2.1 Logic 1-4 submenu
A submenu is activated for each activated logic. In this submenu up to 2 external logic objects and up
to 2 buttons can be integrated into the logic operation.
The following figure shows the corresponding settings:
Figure 44: Settings – Submenu Logic 1-4
The following table shows the available settings:
ETS-Text
Dynamic range
[Default value]
Comment
Logic object 1 A/B (external)
▪ disabled
▪ normally active, with
preallocation 0
▪ inverted active, with
preallocation 0
▪ normal active, with
preallocation 1
▪ inverted active, with
preallocation 1
Activation of the external logic
object,
the preallocation value defines
the value of the external logic
object after a bus voltage
recovery if no value has yet
been sent to the
communication object
Internal Input 1 / 2
▪ disabled
▪ Push Button 1-4
Activation of the buttons for
the logic function, each button
can be activated normally or
inverted
Figure 45: Settings – Activation of Logic inputs
Depending on the activated inputs of the logic operations, the corresponding communication objects
are displayed:
Number
Name
Length
Usage
40
Logic 1 – Input 1 A
1 Bit
external input for the logic function
41
Logic 1 – Input 1 B
1 Bit
external input for the logic function
Table 75: Communication objects – Inputs Logic 1-4
For each external logic input, a communication object is displayed which can be connected to any
other communication object of 1 bit size, e.g. the status of an actuator.
Furthermore, the logic operation can react to the operation of the buttons.
Each logic input can be inserted either normally or inverted.
