Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
69
69
4.6.12 HSV color control
Single-Button function
Two-Button function
With the HSV color control, LED dimmers with RGB/RGBW function can be controlled and their status
can be displayed on the display.
The following figure shows the available settings:

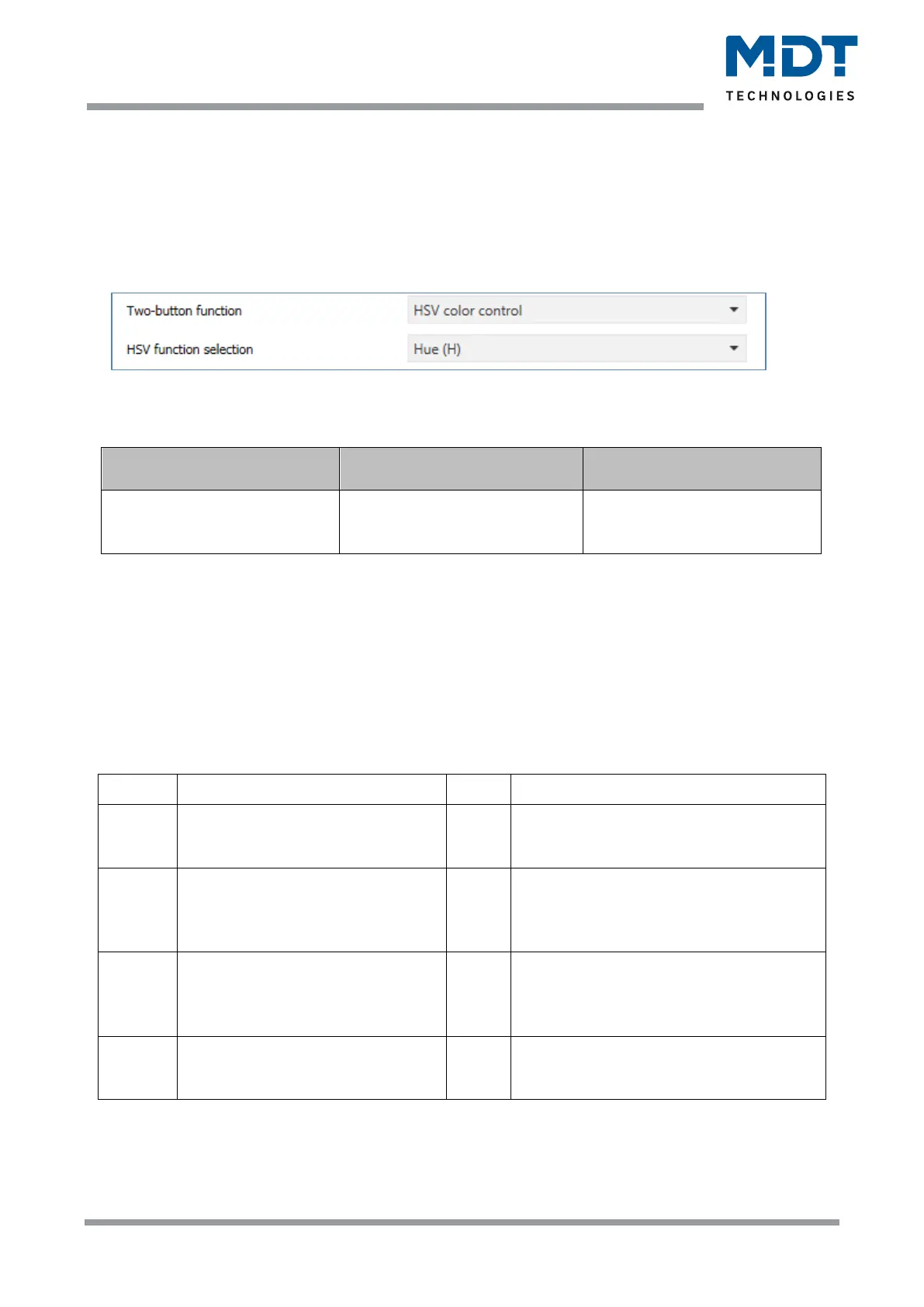

Figure 37: Settings – HSV color control
The table below shows all available settings:
ETS-Text
Dynamic range
[Default value]
Comment
HSV function selection
▪ Hue (H)
▪ Saturation (S)
▪ Value (V)
Setting of the function to be
controlled
Table 59: Settings – HSV color control
The HSV color control can control the 3 parameters (hue, saturation, brightness) of the HSV
chromatic circle. A 4 bit dimming command and a switching command are available for the control.
The switching command is used to switch the LED strip on/off. With the 4 bit dimming command, a
cycle through the HSV chromatic circle can be performed. This is a start-stop dimming, that means as
soon as the dimming function becomes active, it will move inside the chromatic circle until the
button is released. After releasing, a stop telegram is sent which terminates the dimming process.
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1:
Push buttons 1/2: –
HSV control On/Off
1 Bit
Only for subfunction “Value”
Switch command for color control
1
Push button 1:
Push buttons 1/2: –
Change HSV Hue (H)/ Saturation (S)/
Value (V) relative
4 Bit
Cycle through the HSV chromatic circle
2
Push button 1 –
Value for toggle
1 Bit
Only for single-button function and
subfunction “Value”
Feedback signal about the current state of
the actuator to be switched
3
Push button 1:
Push buttons 1/2: –
Status for Hue/ Saturation/ Value
1 Byte
Receiving the state of the HSV chromatic
circle
Table 60: Communication objects – HSV color control
